CITROEN CX 2000 - Page 176

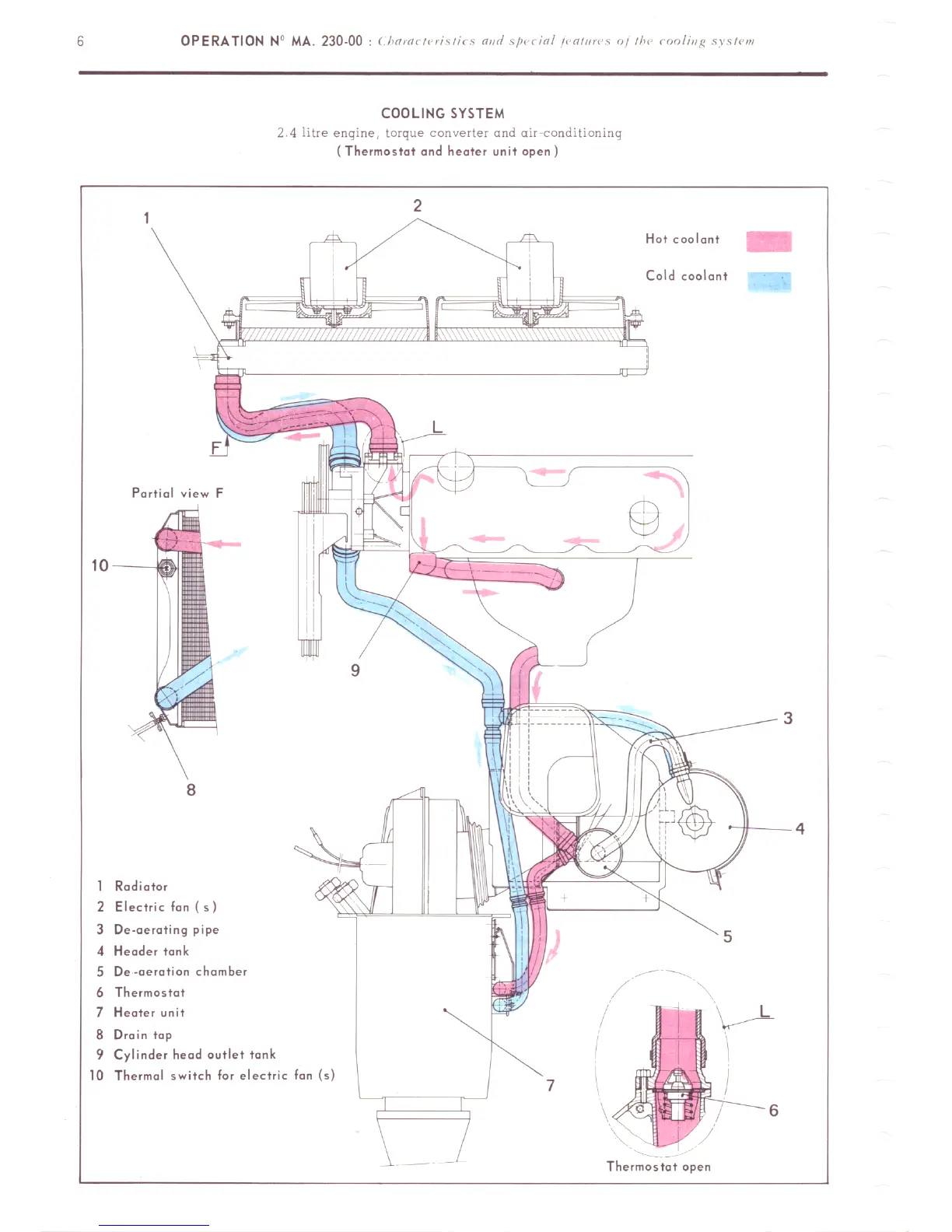

COOLING SYSTEM
2 4 litre engine, torque converter and air conditinninq
(Thermostat and heater unit open)
Partial view F
8
1 Radiator
2 Electric fon (5)
3 De-aerating pipe
4 Header tank
5 De-aeration chamber
6 Thermostat
7 Heater unit
8 Drain top
9 Cylinder head outlet tank
Cold coolant
,
I-
J1
-
0 Thermal switch for electric fan (s)
l-J
7
6
Thermostat open
