OPERATION NJ MA. 230.00 : 1 i
!O,Oi ,V,iC,i< c “ii<, ‘/QC < iOi ,< “,,i!< \ 0, ii’< <riniil,,g \\l,< r>/
Op. MA. 230.00 7

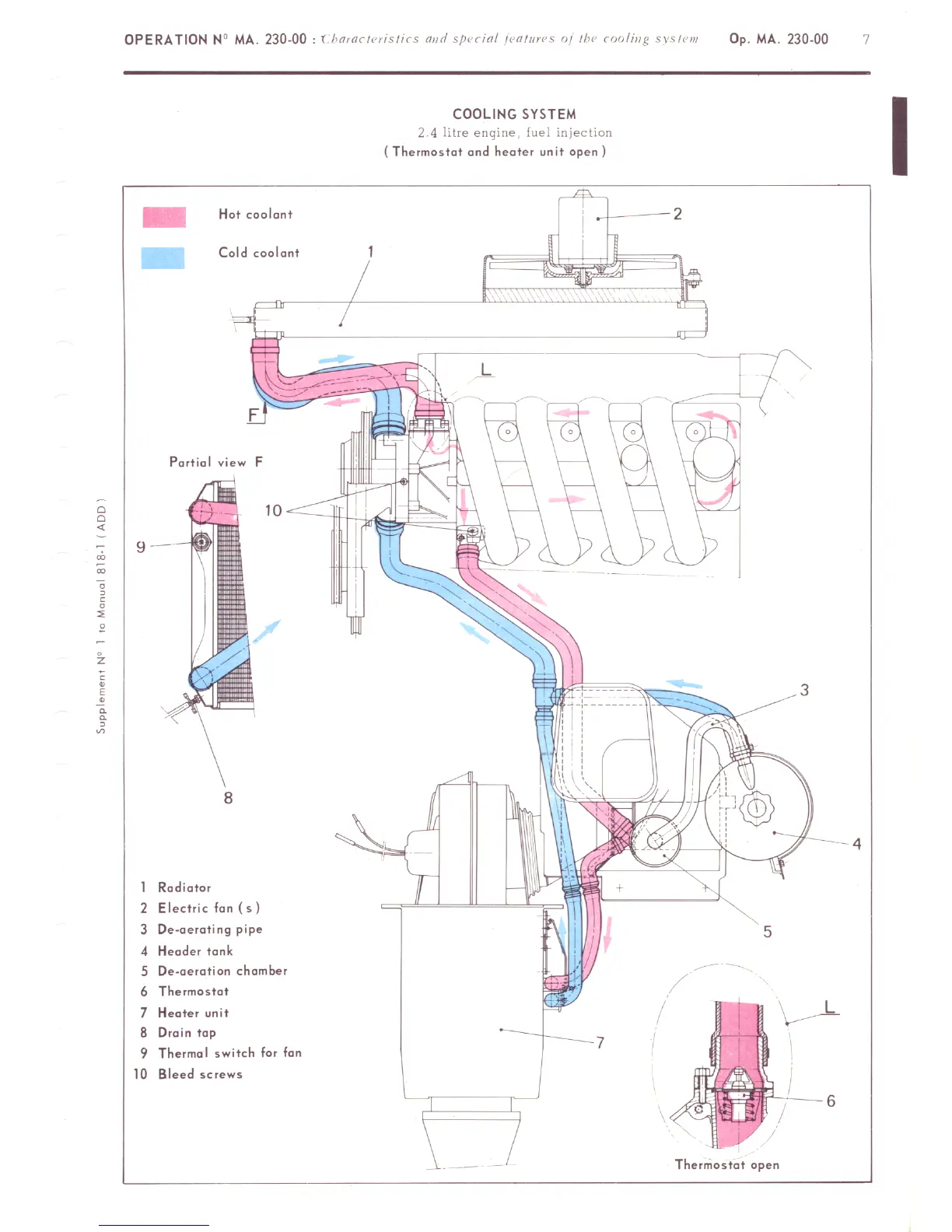

COOLING SYSTEM
2 4 litre engine fuel injection
(Thermostat and heater unit open)
Hat coolant
Cold coolant
Partial view F
1 Rodiotor
2 Electric fon (5)
3 De-aerating pipe
4
Header tank
5 De-aeration chamber
6 Thermostat
7
Heater unit
6 Drain top
9 Thermal switch for fan
0 Bleed screws
Thermast.t open
