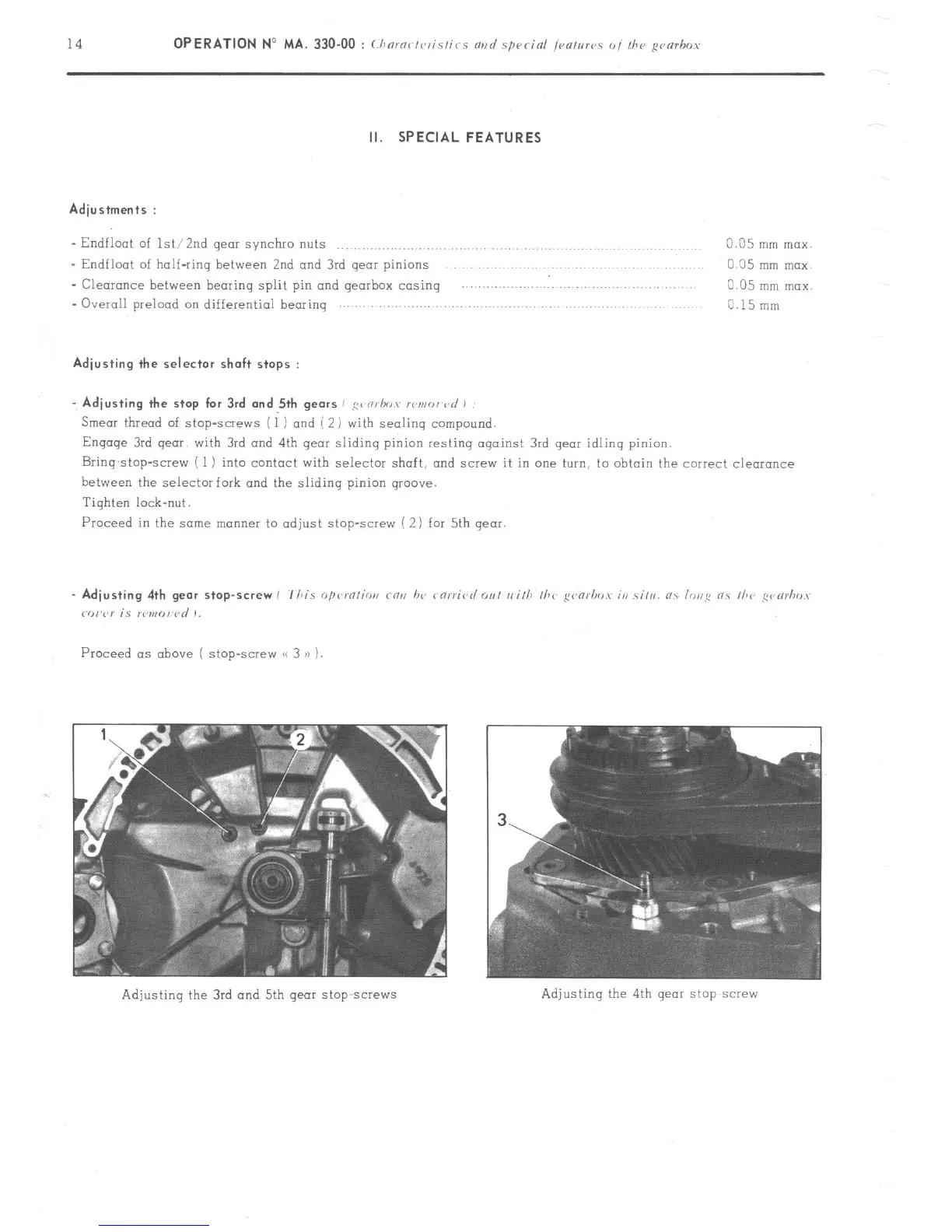

ii. SPECIAL FEATURES
Adjustments :
- Endfloat of lW2nd gear synchio nuts
0.05 mm max.
- Endfloot of half-ring between 2nd and 3rd gear pinions GO5 mm mox
- Clearance between bearing split pin and gearbox casing
0.05 mm nlax.
- Overall prelood on differential bearinq
0.15 mnl
Adjusting the selector shaft stops :
. Adjusting the stop for 3rd and 5th gears / ,g< nrhov lI~n,r,, vd ,
Smear thread of stop-screws (1 ) and ( 2) with sealing compound.
Engage 3rd qear with 3rd and 4th qeor sliding pinion resting against 3rd gear idling pinion.
Bring,stop-screw ( 1) into contact with selector shaft, and scw.v it in one turn, to obtain the correct clearance
between the selector fork and the sliding pinion groove.
Tighten lock-nut.
Proceed in the some manner to adjust stop-screw ( 2) for 5th qear.
Adjusting the 3rd and 5th gear stop~screws
