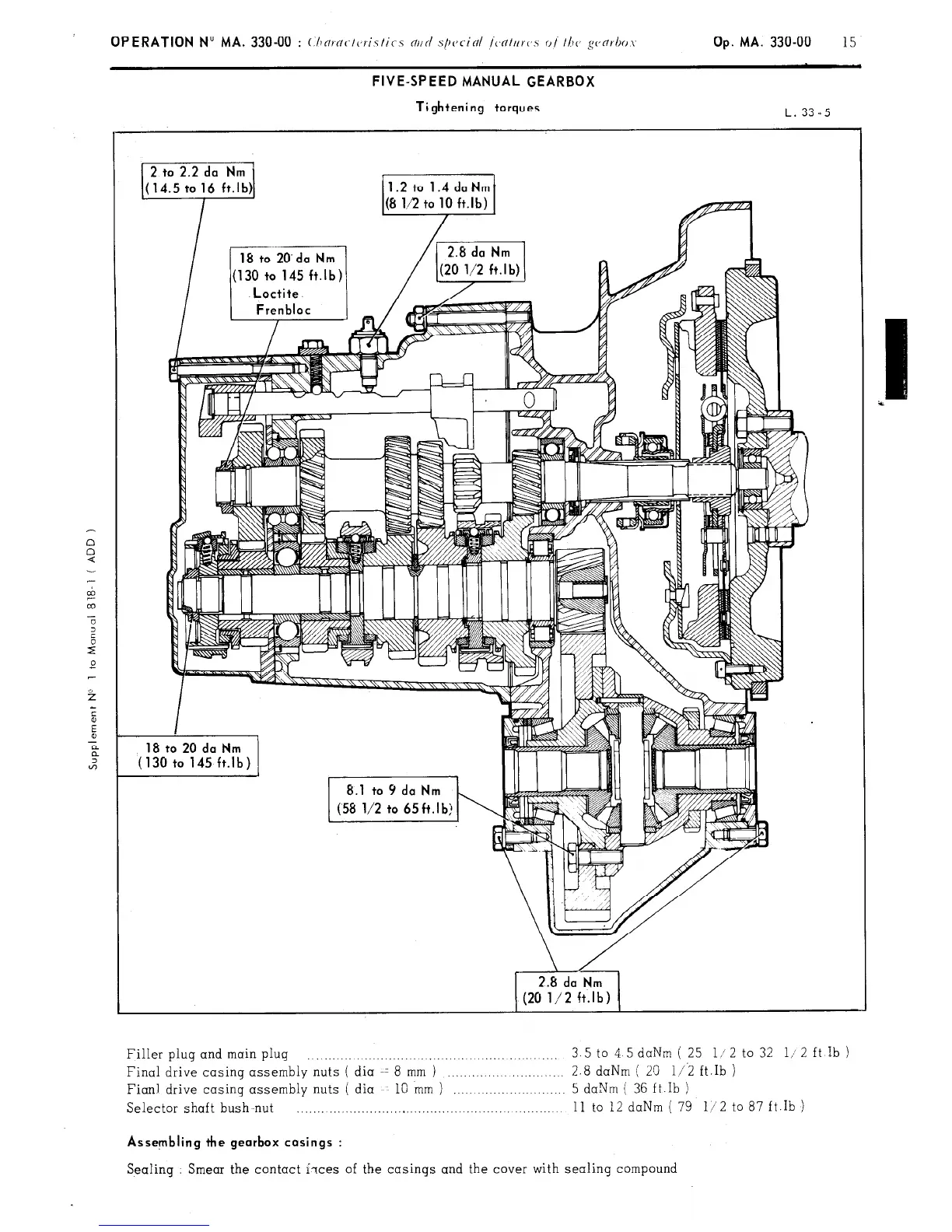

FIVE-SPEED MANUAL GEARBOX
Tightening torques
(130 to 145 ft.lb)
II I lr II III
\/
2.8 da Nm
(20 l/2 ft.lb)
Filler plug and main plug
3.5 to 4 5 daNm ( 25 l/2 to 32 I/ 2 ft Ib )
Final drive casing assembly nuts ( dia -z 8 mm )
.,..._.,. 2.8 daNm ( 21) 11.2 ft.Ib )
Fianl drive casing assembly nuts ( dia l@ mm )
5 daNm ( 36 ft fb )
Selector shaft bush-nut _...... . . . . . .._...._...._...._..__................
11 to 12 daNm ( 79 l/2 to 87 ft.Ib )
Assembling the
gearbox
casings :
Sealing Smear the contact i?ces of the casings and the cover with sealing compound
