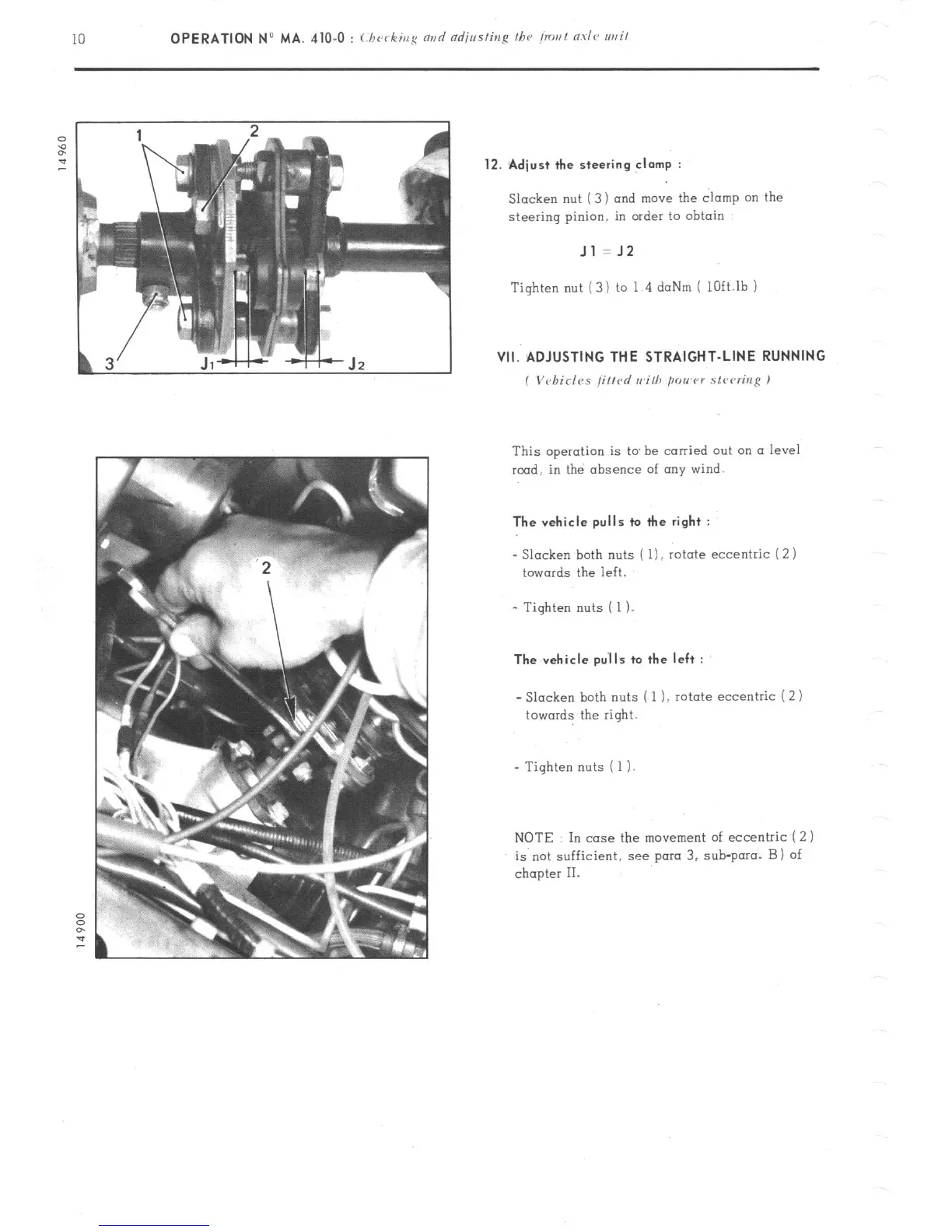

12. Adiust the steering clamp :
Slacken nut ( 3 ) and move the clamp on the
steering pinion. in order to obtain
Jl =J2
Tighten nut (3) to 1 4 daNm ( lOft.lb 1
VII. ADJUSTING THE STRAIGHT-LINE RUNNING
( Vvhirlvs jirtd rr~ilh power stcvri1r.q )
This operation is to be carried out on a level
rmd, in the absence of any wind.
The vehicle pulls ta the right :
- Slacken both nuts ( l), rotate eccentric ( 2 )
towards the left.
- Tighten nuts ( 1).
The vehicle pu’lls to the left :
- Slacken both nuts ( 1 ), rotate eccentric i 2)
towards the right.
- Tighten nuts ( 1)
NOTE In case the movement of eccentric ( 2 1
is not sufficient, see para 3. sub-para. B) of
chapter II.
