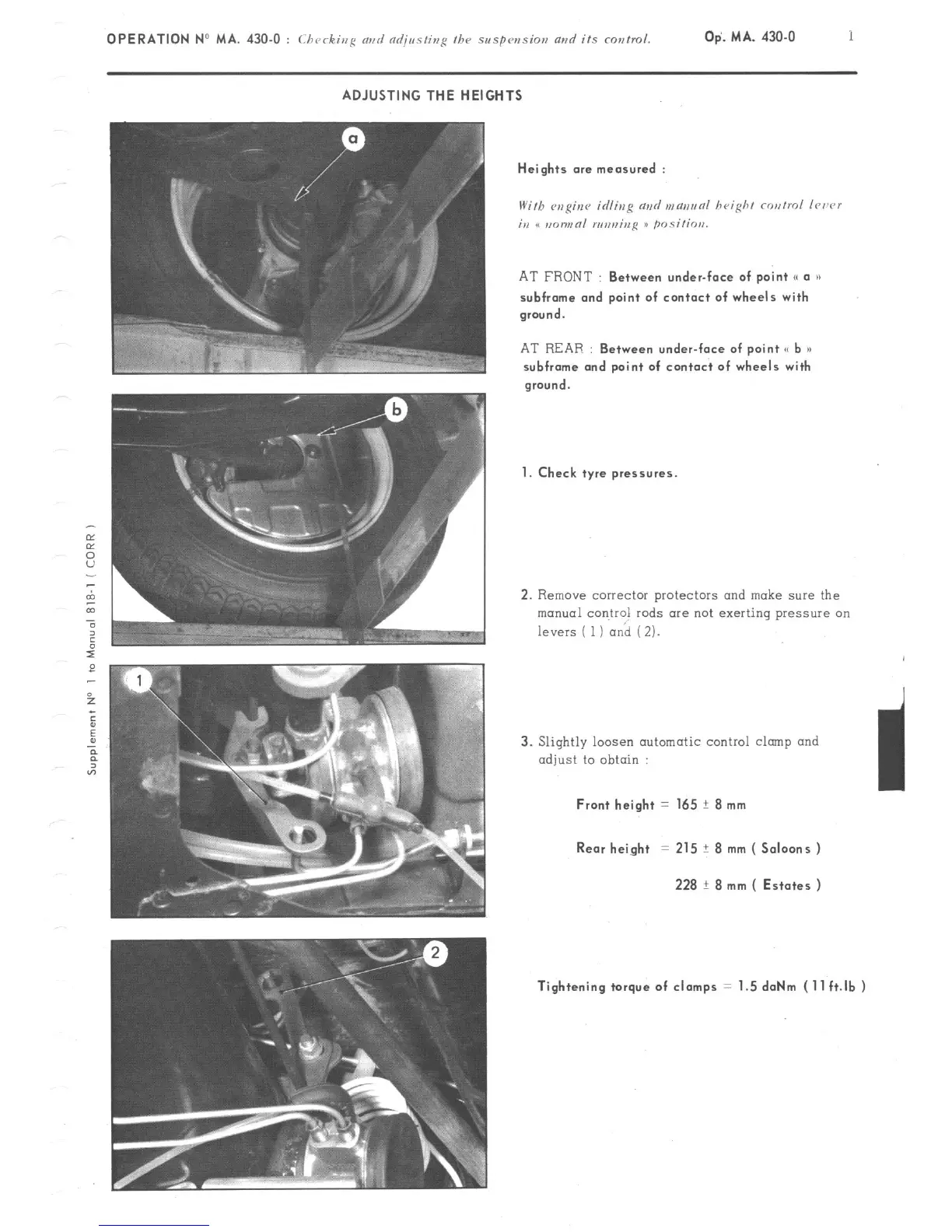

OPERATION No MA. 430-O : Checking md ndjusting the suspcusion and its control.
06.
MA.
430-O
i
ADJUSTING THE HEIGHTS
AT FRONT
: Between under-face of point (c o ))
subfrome ond point of contoct of wheels with
ground.
AT REAR
: Between under-face of point <( b a)
subfrome ond point of contact of wheels with
ground.
1. Check tyre pressures.
2. Remove corrector protectors and make sure the
manual control rods are not exerting pressure on
levers ( 1) and ( 2).
3. Slightly loosen automatic control clump and
adjust to obtain :
3
Front height = 165 ? 8 mm
Rear height = 215 ? 8 mm ( Saloons )
228
t 8 mm ( Estates )
Tightening torque of clomps = 1.5 doNm (11 ft.lb )
