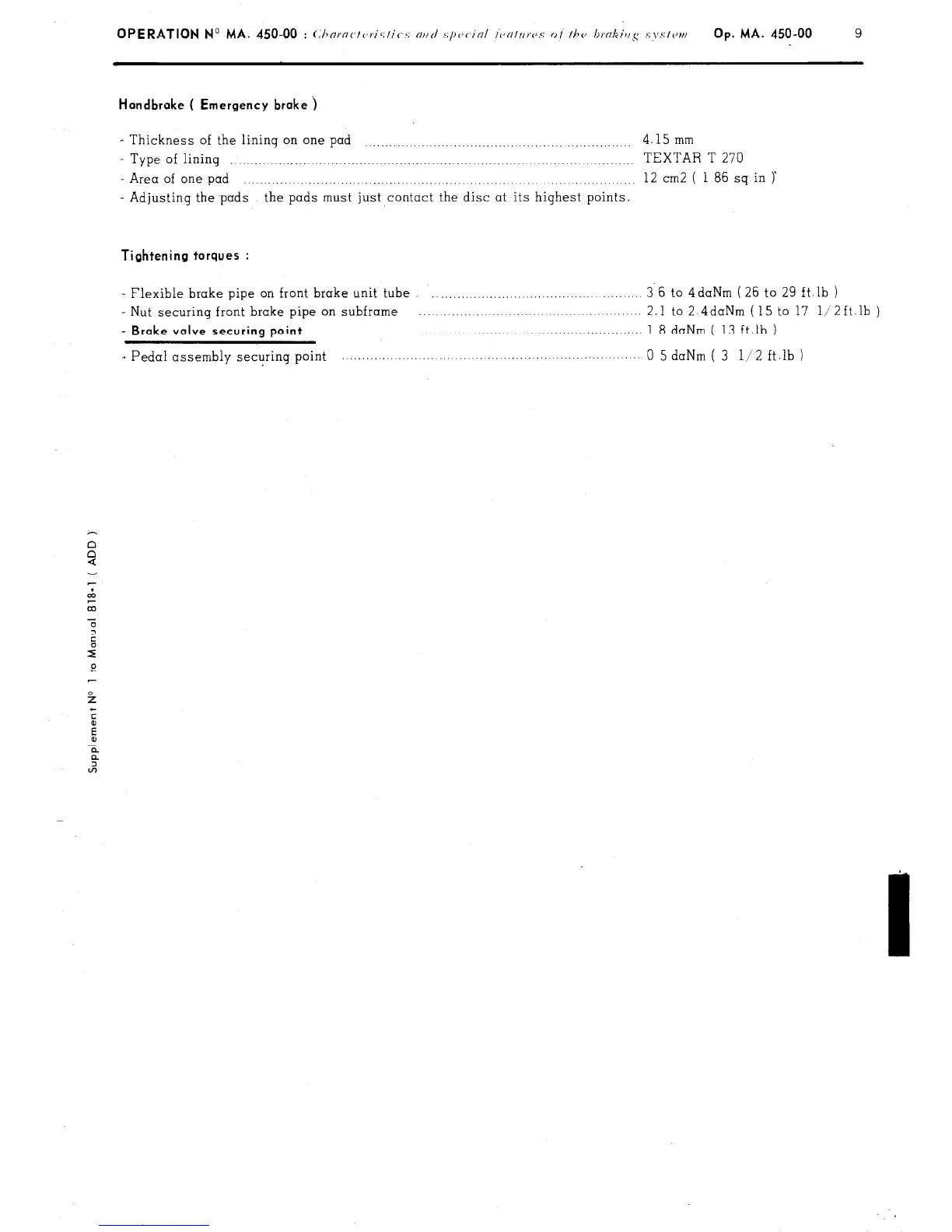

OPERATION No MA. 450-00 : (:/~ornc.t(,ris/i(-\ c/r/d ,S/ICJC inl /c,c//r~rc,s ot the brcrkillg s~‘.stc~rt~ Op. MA. 450-00 9
Handbroke ( Emergency broke )
- Thickness of the lininq on one pad
4.15 mm
_...... .._.......... _.. .,..........
- Type of lining .__............................._....._._..... .._.... .._.. .._.
TEXTAR T 270
- Area of one pad
._..
12 cm2 ( 1 86 sq in )’
- Adjusting the -pads the pads must just contact the disc at its highest points.
Tightening torques :
- Flexible brake pipe on front brake unit tube .............. ..... ....... ........... ........ 3 6 to 4daNm (26 to 29 ft.lb )
- Nut securing front brake pipe on subframe .................................................
2.1 to 2 4daNm (15 to 17 1/2ft.lb )
- Brake valve securing point .................. ..............................
........... ........
1 8 daNm ( 13 ft.lb )
. Pedal assembly securing point
.....................
......
..................................
0 5 daNm ( 3 l/2 ft.lb )
