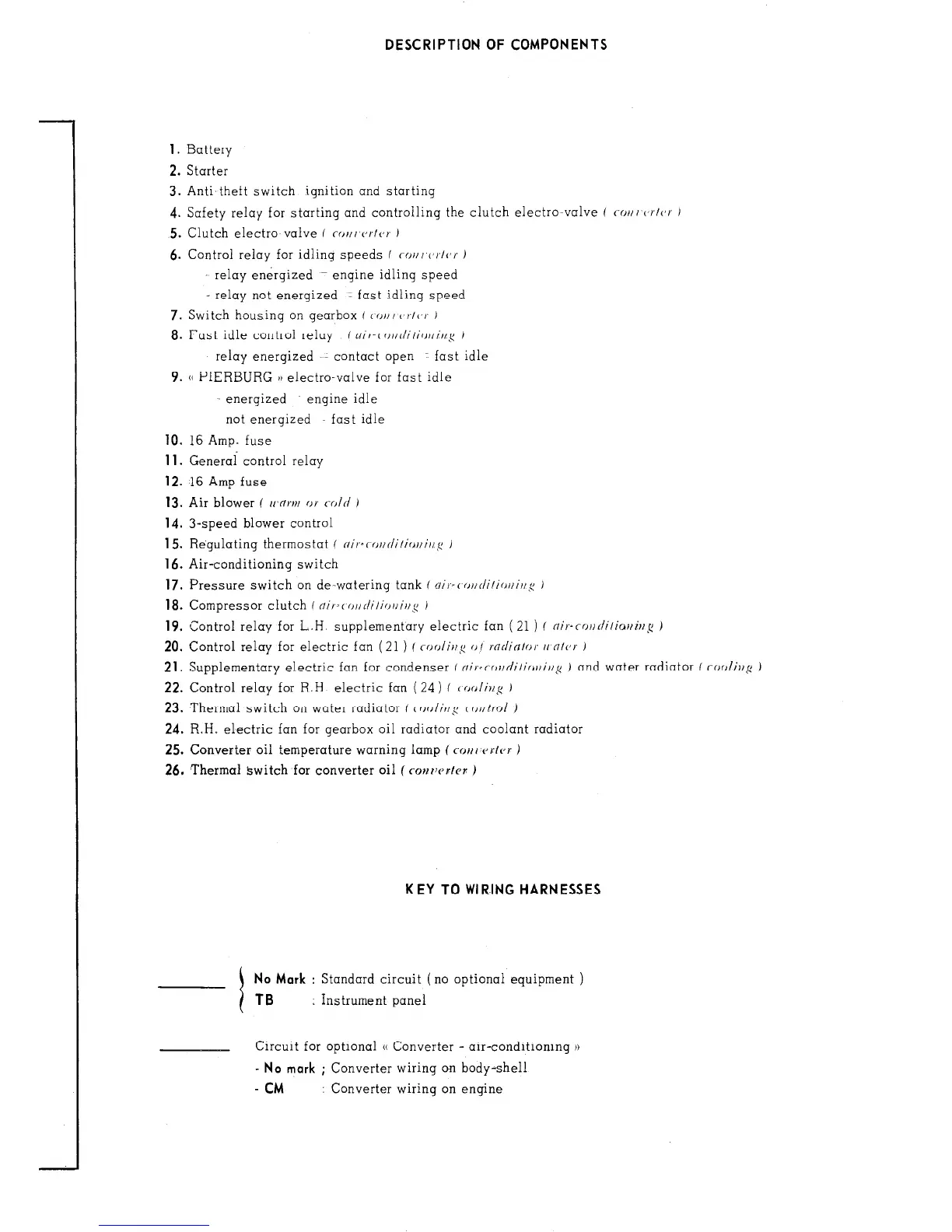

DESCRIPTION OF COMPONENTS
1.
Battery
2. Starter
3. Anti-theft switch ignition and starting
4. Safety relay for starting and controlling the clutch electro-valve f ~/lr,c,r/(,r J
5. Clutch electro-valve ( co,/, V~IO~ J
6. Control relay for idling speeds f W//I r,~/or J
relay energized engine idling speed
- relay not energized 1 fast idling speed
7. Switch housing on gearbox ( WJ,, c,~/(,v J
8. Fast idle control relay / ~i)-c o~r/i/ir~//i,l~ 1
relay energized contact open fast idle
9. (( PIERBURG )) electro-valve for fast idle
- energized engine idle
not energized fast idle
10. I6 Amp. fuse
11.
General control relay
12.
16 Amp fuse
13.
Air blower ( tr’n~r// or c-old )
14.
3-speed blower control
15. Regulating thermostat ( ~i,.=ror,c/i/irrr,i,l~: i
16. Air-conditioning switch
17.
Pressure switch on de-watering tank f ni,-=( or~rli/irrr/i~~~c )
18.
Compressor clutch f nifsc o//di/io~i/l~ i
19.
Control relay for L.H supplementary electric fan (21 ) ( ~il..r~l/di/io//il/~ )
20. Control relay for electric fan (21 ) (
coolir~g o/ rficJiNlor (I nlc,r )
21. Supplementary electric fan for condenser ( ~il.~rol/ni/i~~ll/i//~ ) and water radiator ( cooling: J
22. Control relay for R.H electric fan ( 24) ( tooli~!: J
23. Thermal switch on water radiator ( (r)olir~,r~ to~trol )
24. R.H. electric fan for gearbox oil radiator and coolant radiator
25. Converter oil temperature warning lamp ( CM, c~sl~r J
26. Thermal switch for converter oil ( COMWKI~B )
KEY TO WI RING HARNESSES
No Mark
: Standard circuit (no optional equipment )
TB :
Instrument panel
Circuit for optional (( Converter - air-conditioning ))
- No mark
; Converter wiring on body-shell
- CM
: Converter wiring on engine
