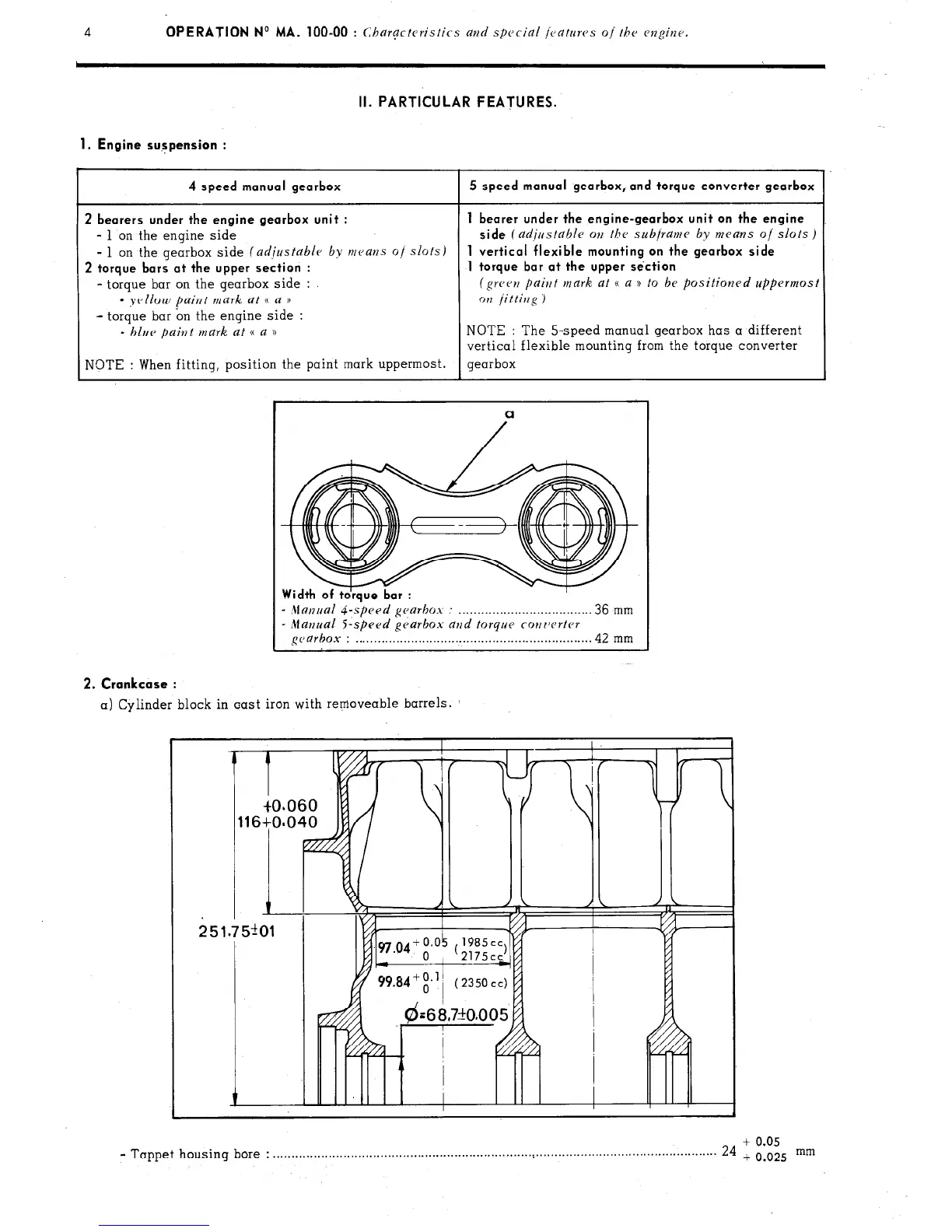

4 OPERATION No MA. 100-00
: ChargctrJristics and special jeattlws of the engine.
II. PARTICULAR FEATURES.
1. Engine sugpension :
4 speed manual gearbox
2
bearers under the engine gearbox unit :
- 1 on the engine side
- 1 on the gearbox side (adjustable by means o/ slots)
2 torque bars at the upper section :
- torque bar on the gearbox side :
- yellow paint mark at (( a ))
- torque bar on the engine side :
- blue paint mark at (( a ))
NOTE : When fitting, position the paint mark uppermost.
5 speed manual gearbox, and torque converter gearbox
bearer under the engine-gearbox unit on the engine
side
(adirrstable OH the subjranra by
means oj slots)
vertical flexible mounting on the gearbox side
torque bar at the upper se‘ction
(green paint mark at CC a n to be positioned uppermost
072 jittiug )
NOTE : The 5-speed manual gearbox has a different
vertical flexible mounting from the torque converter
gearbox
a
- Mat7~ral gearbox : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 mm
- Manual S-speed gc,arbox and torque cowrvrtcr
gearbox : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 mm
2. Crankcase :
a) Cylinder block in oast iron with removeable barrels.
+ 0.05
- Tappet housing bore
: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..~.................................................
24 + 0.025 mm
