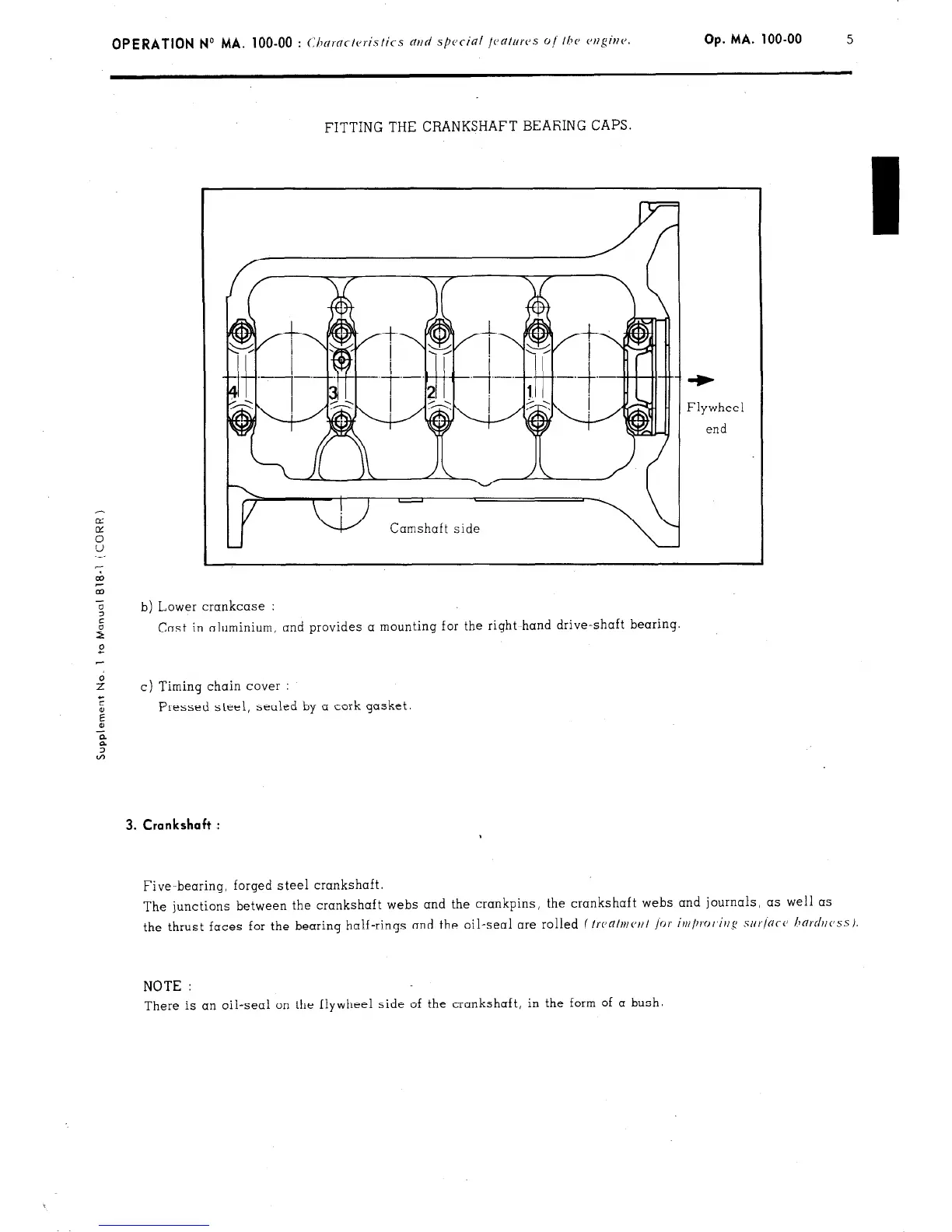

FITTING THE CRANKSHAFT BEARING CAPS
Camshaft side Camshaft side
‘W
Flywheel
end
b) Lower crankcase :
Cast in aluminium, and provides a mounting for the right~hand drive-shaft bearing.
c) Timing chain cover :
Pressed steel, sealed by a cork gasket.
3. Crankshaft :
Five-bearing, forged steel crankshaft.
The junctions between the crankshaft webs and the crankpins,
the crankshaft webs and journals, as well as
the thrust faces for the bearing half-rings and the oil-seal are rolled
(Iwalmc,r/l i~r iw/lro/~ir/g sur]ncc~ horr/r/c,ssI
NOTE :
There is an oil-seal on the flywheel side of the crankshaft, in the form of a bush.
