CARBURATION
OPERATION No MA. 142.000 : c reurral ,‘~alrrrr.s o/’ /he <-arhnra/i”,,.
Op. MA. 142.000
1
NOTE : This operation is relevant for all vehicles lrom 1977 models onwards.
Every o PETROL )) vehicle introduced from October 1st 1976 onwards must be fitted with CI (( tamper-proof ))
carburettor ,Vnl;d Jar n/l fil’KOl’llA\ rour,/rii,s. v\r.~p,
SWll/)li,\ ,.
This device is made up of a protective plug for the mixture adjustment screw (SOLEX and WEBER), and for the
butterfly adjustment screw or screws (SOLEX ).
If the carburettor is not properly adjusted, the original protective plug Inhifv ov W/:HI:K
rnrhurc,itors. hlnrk 01,
S0l.li.Y rorhuwltor I will be removed, and after adjustment of the carburettor, will he replaced by (I e REPAIR )I
protective plug I
block ou
U’I:RIK c n~hur-r~/io~~. md while OH S0l.li.Y rn,br,rv~tors 1.
The Replacement Parts Deportment supplies under Reference Number
4035-T
CI new kit for removing and refitting
the protective plugs on WEBER and SOLEX carburettors.
NOTE : The first kits supplied by the Replacement Parts Department (Ref. 4029-T ) con be supplemented with
tools (
D) 4031
-T and (
F ) 4032
T.

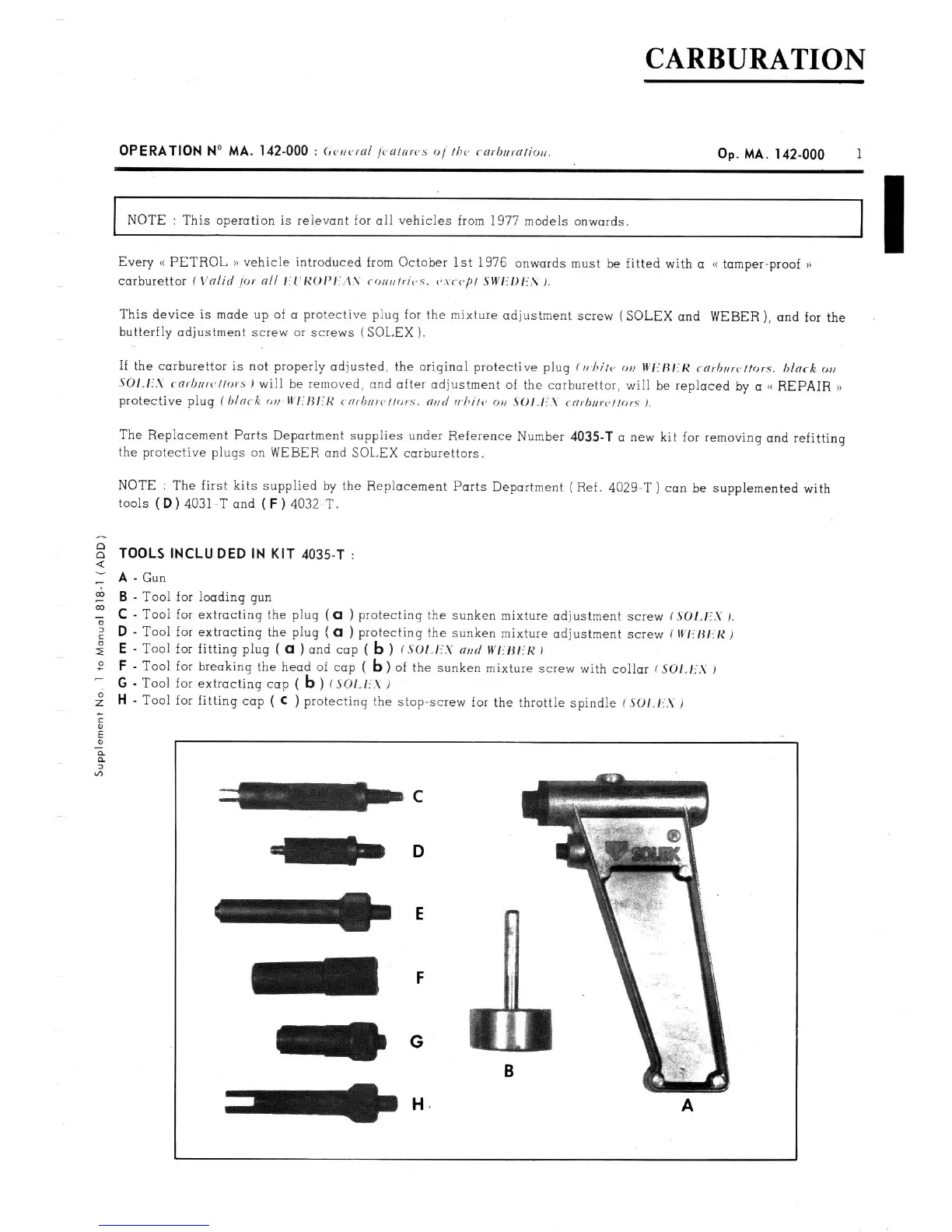

o TOOLS INCLUDED IN KIT 4035-T :
4
A -
Gun
2 B - Tool for loading gun
o C - Tool for extracting the plug
(a
) protectinq the sunken mixture adjustment screw lS0LIi.Y ).
:
D
- Tool for extracting the plug
(a
) protecting the sunken mixture adjustment screw (
WliHliK)
g
E
- Tool for fitting plug ( Q ) and cop (
b ) lSOl.fi.~ avd WI<R~~R I
2
F
- Tool for breaking the head of cap (
b)
of the sunken mixture screw with collar ~SOI.I:.Y ,
7 G - Tool for extracting cap (
b ) (JO/.I:.\ I
2
H
- Tool for fitting cap ( C ) protecting the stop-screw for the throttle spindle (~0l.li.x I
