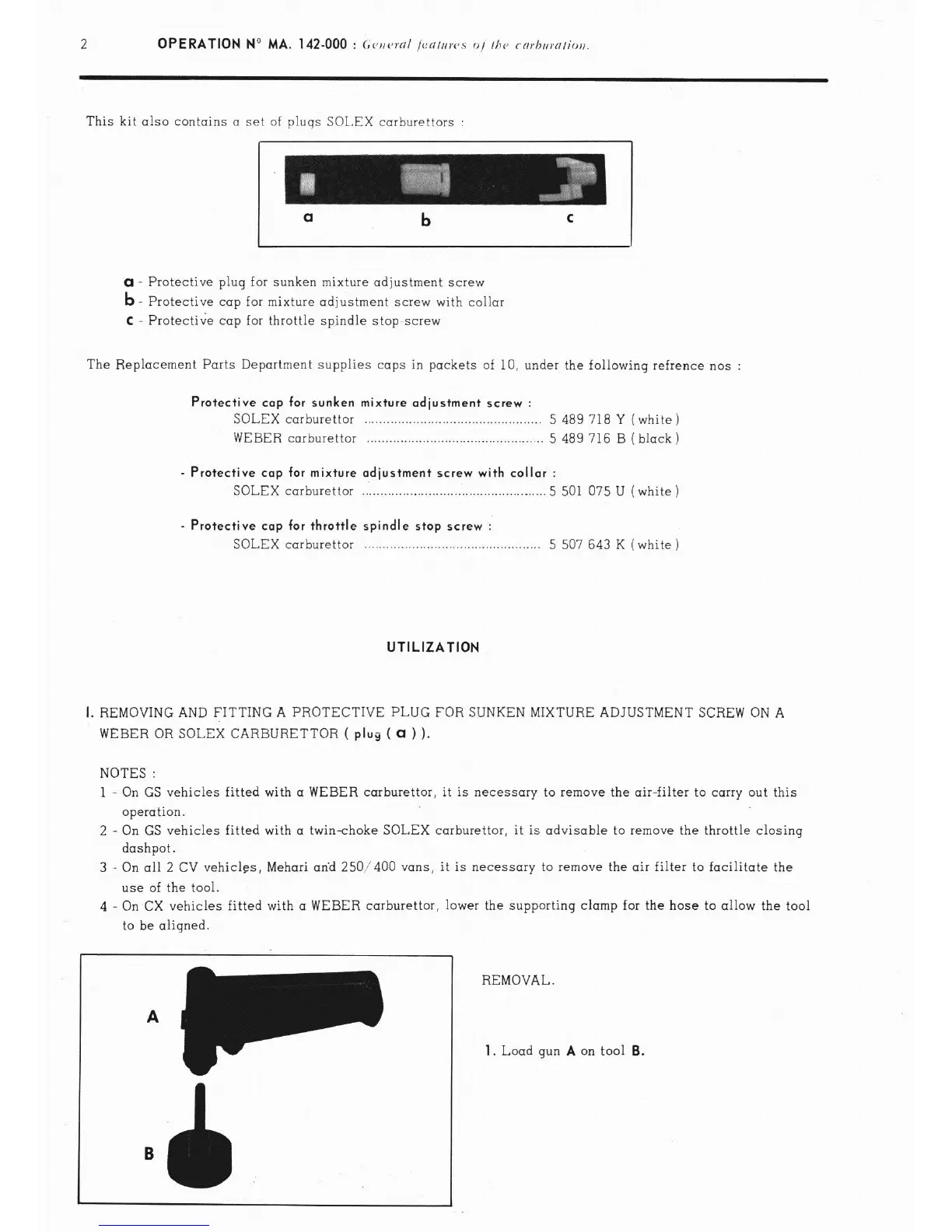

2 OPERATION No MA. 142.000 : ~<,n<vol ,ea,nws o, I/><, rorhurn/io,i.
This kit also contains o set of plugs SOLEX carburettors :
a
b
Q Protective plug for sunken mixture adjustment screw
b
Protective cap for mixture adjustment screw with collar
C - ProtectiGe cap for throttle spindle stop screw
The Replacement Parts Department supplies cops in packets of 10, under the following refrence nos :
Protective cop for sunken mixture adjustment screw :
SOLEX carburettor 5 489 718 Y (white)
WEBER
carburettor
5 489 716 B ( block)
- Protective cap for mixture odiustment screw with collor :
SOLEX carburettor . 5 501 075 U (white )
- Protective cop for throttle spindle stop screw :
SOLEX carburettor 5 507 643 K (white )
IJTILIZATION
I. REMOVING AND FITTING A PROTECTIVE PLUG FOR SUNKEN MIXTURE ADJUSTMENT SCREW ON A
WEBER OR SOLEX CARBURETTOR (
plug ( a ) ).
NOTES :
1 On GS vehicles fitted with a WEBER carburettor, it is necessary to ~emcwe the air-filter to carry out this
operation.
2 On GS vehicles fitted with a twin-choke SOLEX carburettor, it is advisable to remove the throttle closing
dashpot.
3 - On all 2 CV vehicles, Mehari and 250/400 vans, it is necessary to ~emcwe the air filter to facilitate the
use of the tool.
4 - On CX vehicles fitted with a WEBER carburettor, lower the supporting clamp for the hose to allow the tool
to be aligned
REMOVAL.
1.
Load gun
A
on tool 8.
