6 OPERATION No MA. 142.000 : c ,Pi,r,rol ,cn,,,,cs 0, Ihc ~rwh,,m/ir,n.

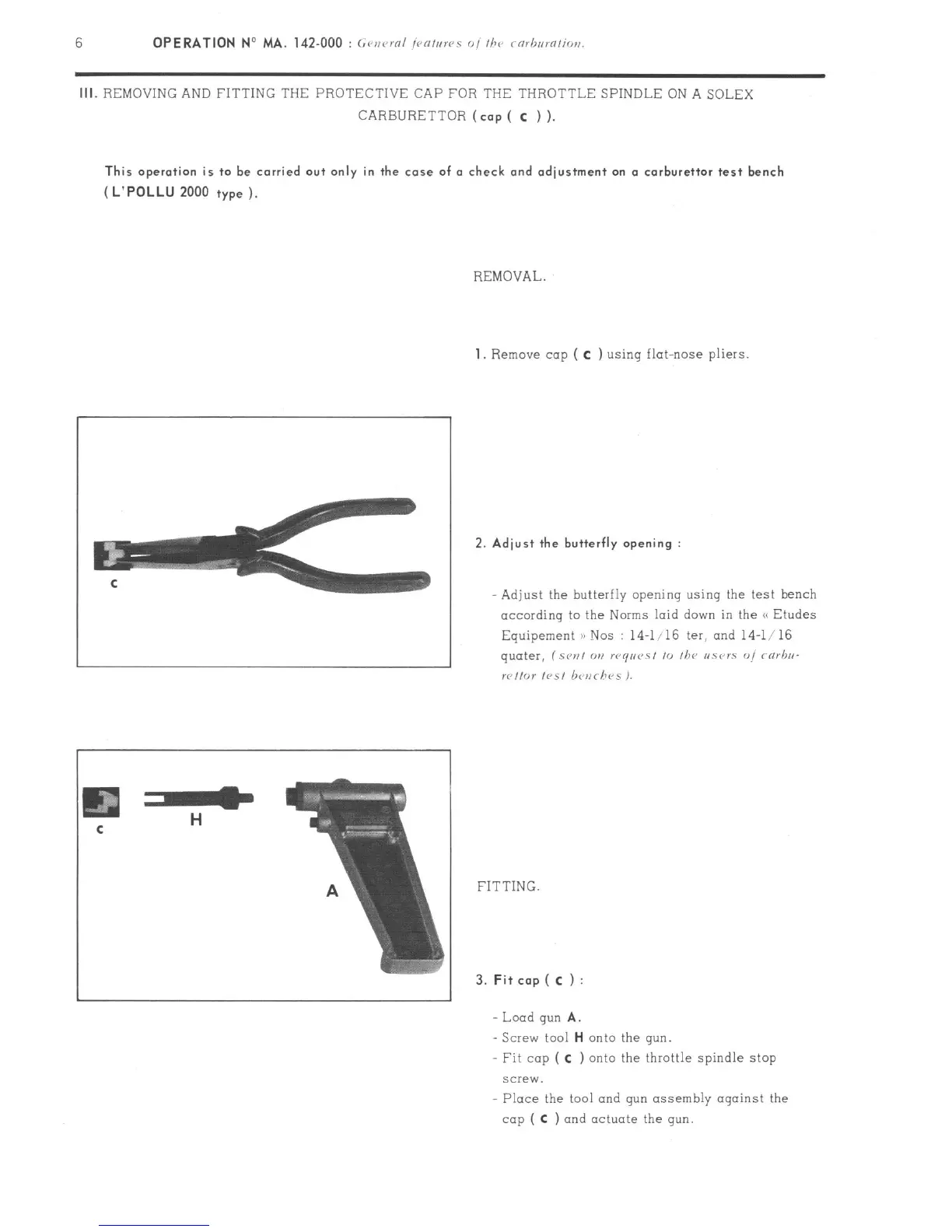

III. REMOVING AND FITTING THE PROTECTIVE CAP FOR THE THROTTLE SPINDLE ON A SOLEX
CARBURETTOR (cap ( c ) ).
This operation is to be carried out only in the case of a check and odiustment on o carburettor test bench
(L’POLLU 2000 type ).
REMOVAL.
1,
Remove cop ( c ) using flat-nose pliers.
2. Adjust the butterfly opening :
Adjust the butterfly opening using the test bench
according to the Norms laid down in the (< Etudes
Equipement 1) Nos : 14-1116 ter, and 14-l/16
quater, f SC,,, o>r rcc/ucs, ,o Ihr ,,scrs o, r-ml>,,-
~Cf,Ol /es, bcorhcs i.
FITTING.
3.
Fit cop ( c ) :
Load gun
A.
- Screw tool
H onto
the gun.
Fit cop ( c ) onto the throttle spindle stop
screw.
Place the tool and gun assembly against the
cop ( C ) and actuate the gun.
