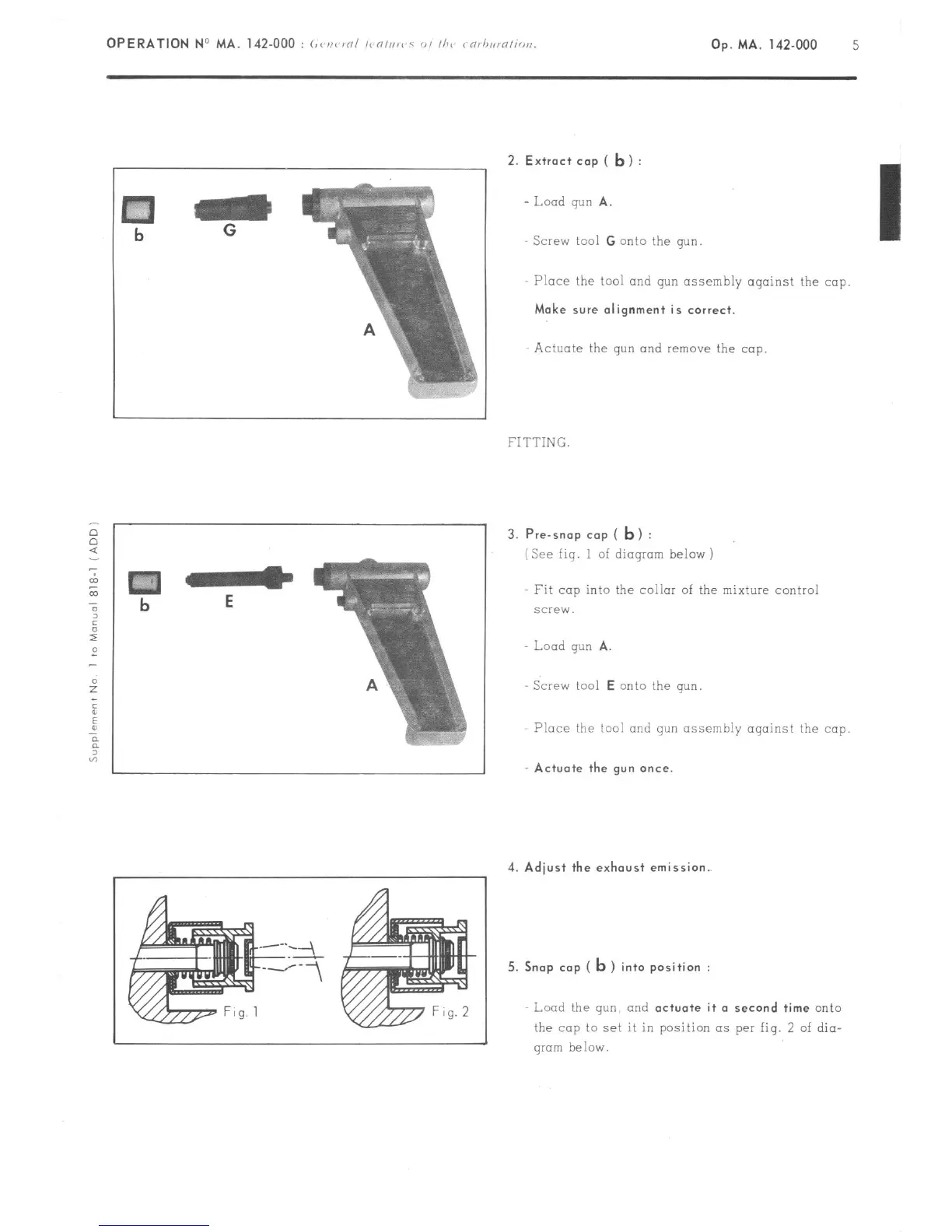

OPERATION N” MA. 142.000 : c ,, P)C rni ,t n i,,, <‘\ 0, I/?< < rirheri,/irin.
Op. MA. 142.000
5
2
:
m
2
-
b
E
*
2.
Extract cop ( ly) :
- Load gun
A.
Screw tool G onto the gun.
Place the tool and gun assembly against the cop
Make sure alignment is correct.
Actuate the gun and remove the cop.
FITTING.
3.
~re-rno~ cap (
b) :
(See fig. I of diagram below )
Fit cap into the collar of the mixture control
screw.
Load qun
A.
Screw tool E onto the wn
Place the tool and gun assembly against the cop
’ 1 1 Actuate the gun once.
4. Adjust the exhaust emission.
I
5. ~nop cop (
b ) into
position :
Load the gun. and (~ctuote
it o second time onto
the cop to set it in position as per fig. 2 of dio-
gram below.
