4

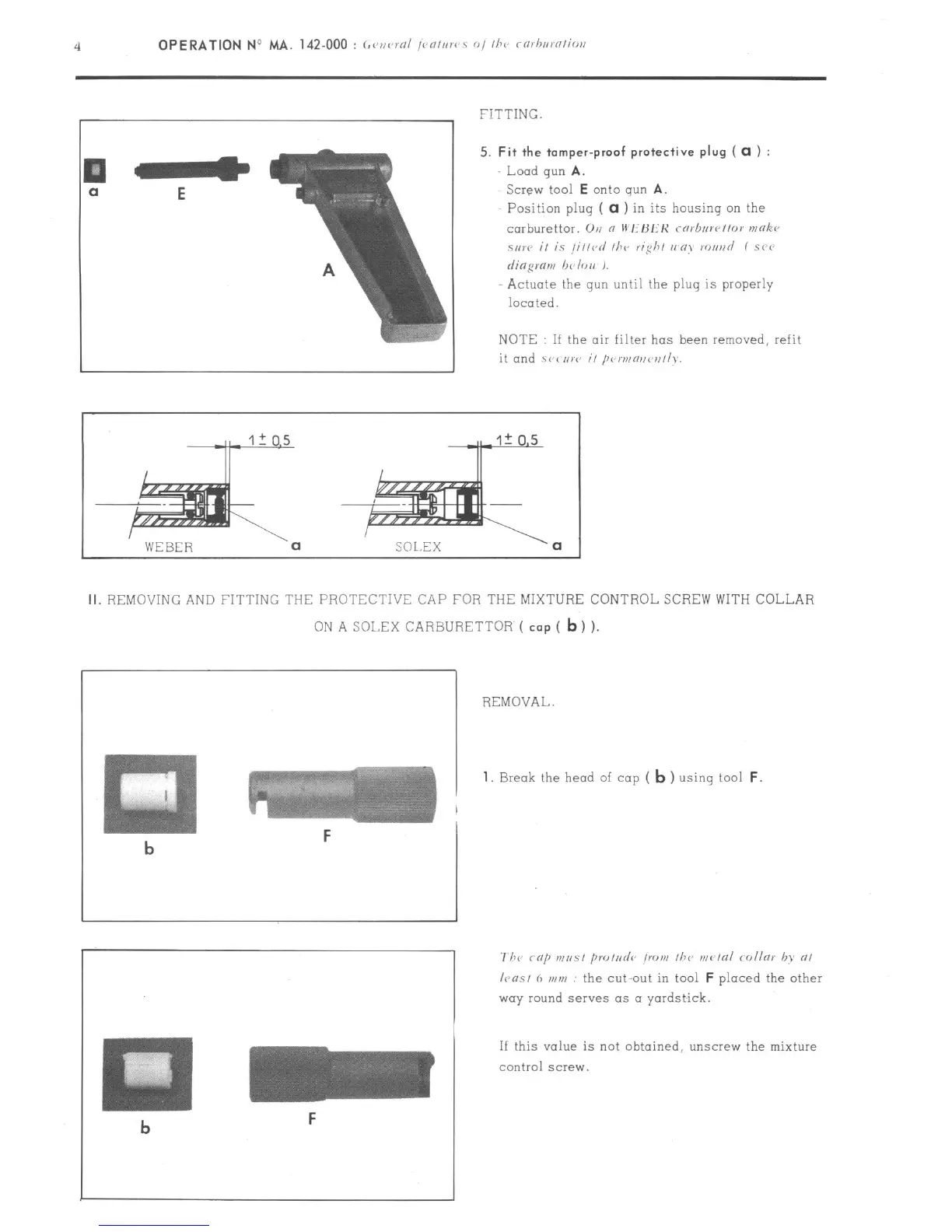

OPERATION No MA. 142.000 : (
,C,,<.IN/ ,<,“/,,,l’\ 0, I/T<’ < o,h,,rntio,,
1
FITTING.
5. Fit the tamper-proof protective plug ( a ) :
Loud gun A.
Screw tool E onto qun A.
Position plug ( a ) in its housing on the
carburettor. ",i n MEHIJK rnr-hrc//or make
SNI“ it is /ill<~ii /he rig/,/ t1 n, I-O!,iili ( S?C
dingrrr,* lx/<,,, I.
Actuate the gun until the plug is properly
located.
NOTE : If the air filter has been removed, refit
it and \(-<nfe
i/
~~rwm~r,/I\-.
a
II, REMOVING AND FITTING THE PROTECTIVE CAP FOR THE MIXTURE CONTROL SCREW WITH COLLAR
ON A SOLEX CARBURETTOR ( cap (
b) )
b
REMOVAL.
1. Break the head of cap (
b ) using tool
F
If this value is not obtained, unscrew the mixture
control screw.
