103
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine : XFZ (continued)

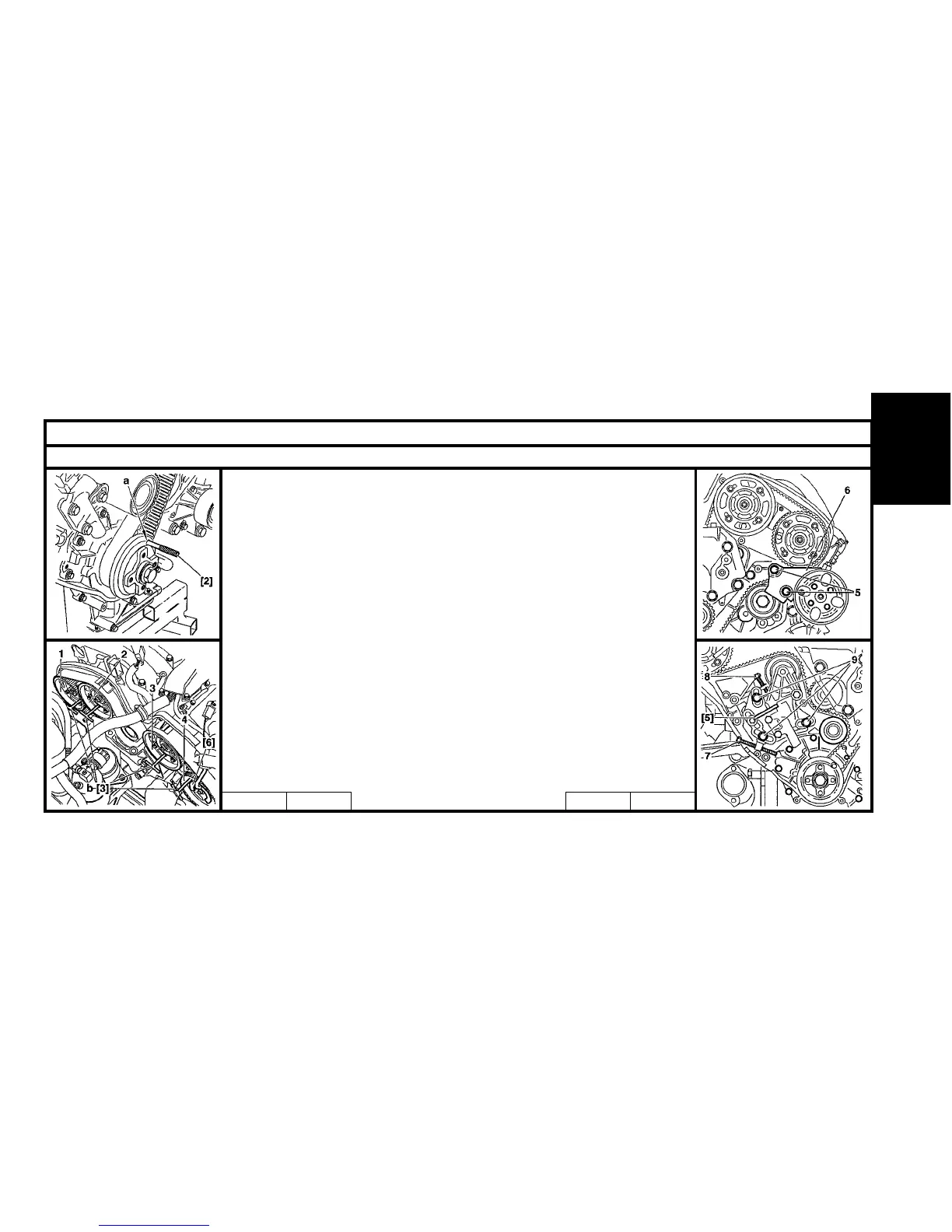

SETTING THE VALVE TIMING
- Peg the crankshaft at (a) using tool [2].
- Loosen the camshaft pulley screws.
- Peg the camshaft pulleys at (b) using tool [3] in the following order :
- Camshaft pulley (1),(2),(3) and (4).
NOTE : If necessary use tool [6].
Preparation
- Remove the screws (5) and the plate (6).
- Screw in a M8x75 screw (7) to its stop.
- Fit a M8x40 screw (8).
- Fit the tool [5] by loosening the screw (7) if necessary.
- Tighten the screw (8) until it locks the tool [5].
- Loosen the screws (9).
- Loosen the screws (7) to slacken the belt.
- Mark the direction of fitting of the belt (if being reused).
- Remove the belt.
B1EP09ECB1EP09CC B1EP09FCB1EP09DC
