CHECKING AND SETTING THE VALVE TIMING
Engine : XFZ (continued)

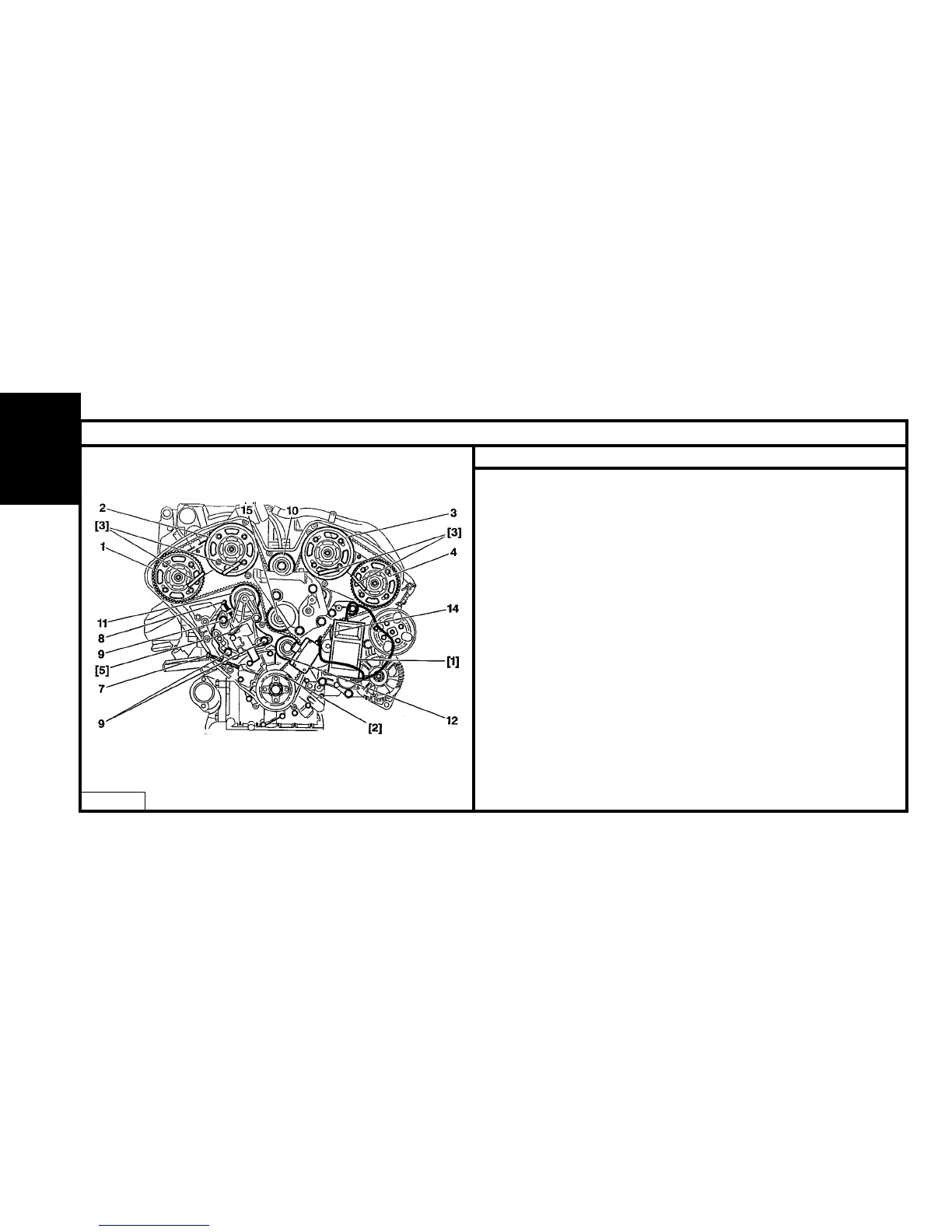

SETTING THE VALVE TIMING
Refitting the belt.
- Check that the rollers (10), (11), (14) and (12) rotate freely.
- Rotate the camshaft pulleys (anti-clockwise) as far as the slots allow.
- Tighten the camshaft pulley screws to 0.5 m.daN.
- Loosen the camshaft pulley screws by 45°.
- Tighten the screws (9) to 1 m.daN.
- Loosen the screws (9) by 45°.
WARNING :Ensure that the belt is fitted in the right direction :
Facing the timing side, it should be possible to read the writing on the belt.
- Put the belt in place in the following order :
- Crankshaft pinion (hold the belt using the tool [7]), the guide roller (14)
camshaft pulleys (4) and (3), guide roller (10), camshaft pulleys (2) and (1),
tensioner roller (11), water pump pulley (15), guide roller (12).
B1EP09GD
ENGINE
104
