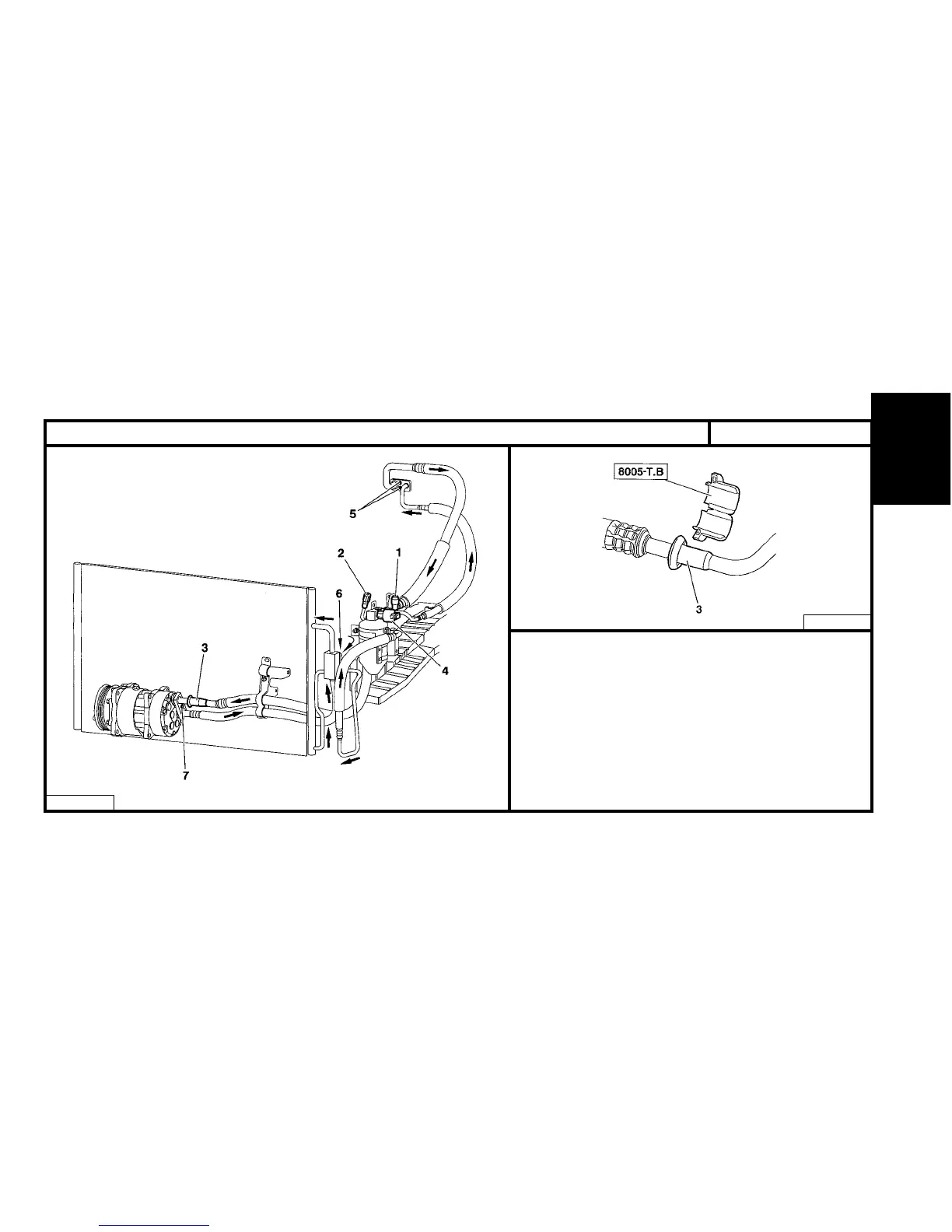

AIR
CONDITIONING SYSTEM
R134.a
SYNERGIE
- DW10
303
C5HP15EP
Tightening torques.
(1)
High
pressure
valve
(2)
Low
pressure
valve
(3)
Clickfit
union
(4)
Pressostat,
tighten
to
1,8
m.daN
(5)
Flange
fixing,
tighten to
0,8
m.daN.
(6)
Flange
fixing,
tighten to
0,8
m.daN.
(7
) Flange
fixing,
tighten to
4
m.daN
.
AIR
CONDITIONING
C5HP12EC
309
Table of Contents
Table of Contents
4
Index
4
Capacities XM
7
General Information
8
Identification of Vehicles - XANTIA, All Types
8
Identification of Vehicles - XM, All Types
16
Identification of Vehicles - XM Diesel
18
Identification of Vehicles - Synergie, All Types
21
Capacities - All Types
23
Capacities (in Litres ) - XANTIA, All Types
24
Capacities (in Litres) - XM, All Types
26
Capacities (in Litres) - Synergie, All Types
27
Lubricants - Total Recommended Oils (All Types)
28
Lubricants
41
Engine Oil Consumption - All Types
42
Engine
43
Engine Specifications - All Types
43
Specifications
45
Compression Ratio - Diesel Engines (All Types)
46
Special Features: Tightening Torques (M.dan) - Xantia - XM
47
Special Features: Tightening Torques (M.dan) - Synergie
48
Special Features: Tightening Torques (M.dan) - Xantia - XM (Cont.)
49
Special Features: Tightening Torques (M.dan) - Xantia - XM - V6
50
Special Features: Tightening Torques (M.dan) - Diesel - All Types
57
Cylinder Head: Xantia - XM
58
Cylinder Head - Synergie
60
Cylinder Head: Xantia - XM (Cont.)
62
Cylinder Head - Xantia
64
Cylinder Head - XM
65
Cylinder Head: Xantia - Synergie
66
Cylinder Head: Xantia - XM - Synergie
67
Cylinder Head: XM
68
Belt Tension/Seem Units Correspondence Table: All Types
69
Auxiliary Equipment Drive Belt: All Types
70
Auxiliary Equipment Drive Belt: Xantia - XM
71
Auxiliary Equipment Drive Belt: Synergie
74
Auxiliary Equipment Drive Belt: Xantia - XM (Cont.)
75
Auxiliary Equipment Drive Belt: Xantia
77
Auxiliary Equipment Drive Belt: XM
78
Auxiliary Equipment Drive Belt: Xantia - Synergie
79
Auxiliary Equipment Drive Belt: XM (Engine THY with Air Conditioning)
83
Balance Shaft Belt: XM (Engine - THY)
86
Balance Shaft Belt: DK5 - All Types (Engine - THY)
88
Water Pump Belt: XM (Engine - THY)
89
Checking and Setting the Valve Timing - All Types
90
Checking and Setting the Valve Timing (Engine: BFZ - LFX - RGX)
92
Checking the Tension
93
Checking and Setting the Valve Timing (Engine: LFY - RFV #11/97)
94
Setting the Valve Timing
95
Preparation
95
Refitting the Timing Belt
95
Pre-Tensioning the Timing Belt
96
Tensioning the Timing Belt
97
Setting the Valve Timing (Cont)
98
Checking the Belt Tension
98
Tools/Checking the Setting
99
Setting the Valve Timing/Refit
100
Pretensioning the Timing Belt
101
To Tension the Timing Belt
102
Checking and Setting the Valve Timing
102
Checking and Setting the Valve Timing (Engine: RFN)
104
Checking the Valve Timing (RFN)
104
Remove (RFN)
105
Refit (RFN)
106
Timing/Adjusting Belt Tension (RFN)
106
Checks (RFN)
107
Refit (Cont.) (RFN)
107
Repositioning the Flange (RFN)
108
Checking and Setting the Valve Timing (Engine: XFZ)
109
Tools/Checks (XFZ)
109
Setting the Valve Timing (XFZ)
110
Refitting the Belt (XFZ)
111
Checking and Setting the Valve Timing (Engines: DHX)
114
Checking and Setting the Valve Timing (Engine: RHY - RHZ)
115
Tools/Checking the Setting of the Valve Timing (RHY - RHZ)
115
Setting the Valve Timing(RHY - RHZ)
116
Checking and Setting the Valve Timing (Engine: P8C)
120
Checking and Setting the Valvet Timing (Engine: THY)
122
Special Features of the Timing - Xantia (Camshaft Hub Marking #11/97)
125
Special Features of the Timing - Xantia - XM (Camshaft Hub Marking #11/97)
126
Valve Clearance Setting - All Types
128
Checking the Oil Pressure - All Types
129
Engine Oil Pressure Switch - All Types
130
Oil Filters - All Types
132
Filling and Bleeding the Cooling Circuit - All Types
133
Injection
134
Idling - Anti-Pollution: Xantia - XM - Synergie
134
Petrol Injection - Xantia
135
Petrol Injection: XM - Synergie
136
Anti-Pollution Technical Checks (France) - All Types
137
Emission Standards - All Types
138
Emission Standards
144
Safety Requirements: Petrol/Lpg DUAL FUEL System
145
Safety Requirements: Petrol/Lpg DUAL FUEL System - All Types
146
Specifications: Petrol/Lpg DUAL FUEL System - All Types
147
Prohibited Operations: HDI Direct Injection System: Xantia - Synergie
150
Safety Requirements: HDI Direct Injection System: Xantia - Synergie
152
Checks: Low Pressure Fuel Supply Circuit (Xantia - Synergie)
154
Checks: Air Supply Circuit (Xantia - Synergie)
156
Checks: Turbo Pressure (Xantia - Synergie)
157
Checks: Turbo Pressure (Xantia)
158
Checks: Exhaust Cases Recycling Circuit (Xantia - Synergie)
159
Specifications of the Delphi Diesel Injection Pump - All Types
160
All Types
161
Setting the Delphi Electronic Injection Pump - XM
162
Fitting Delphi Diesel Injectors - XM
163
Specifications of the Bosch Injection Pump - All Types
164
Setting the Bosch Mechanical Injection Pump - Xantia
166
Adjusting the Bosch Mechanical Injection Pump Controls - Xantia
168
Fitting Bosch Injectors: Xantia - Synergie
169
Fitting Bosch Injectors: XM
170
Sparking Plugs - All Types
171
Clutch, Gearbox, Driveshafts
172
Speedometer - All Types
172
Clutch Specifications - All Types
173
Clutch: Checks and Adjustments (Xantia - Synergie)
176
Clutch: Checks and Adjustments (Xantia - XM - Synergie)
177
Gearbox and Tyre Specifications - Xantia
184
Gearbox and Tyre Specifications - XM
185
Gearbox and Tyre Specifications - Synergie
186
BE3/5 Gearbox - Xantia - XM
187
BE3/5 Gearbox Controls - Xantia - XM
188
BE3/5 Gearbox - Synergie
190
BE3/5 Gearbox Specifications - Synergie
191
BE4/5 Gearbox - Synergie
192
BE4/5 Gearbox Controls - Synergie
193
BE4/5 Gearbox Checks and Adjustments - Synergie
194
ME/5 Gearbox - XM
196
ME/5 Gearbox Controls - XM
197
ML/5 Gearbox - Xantia - XM - Synergie
198
ML/5 Gearbox Controls - Xantia - Synergie
200
MG/5 Gearbox - XM
201
MG/5 Gearbox Controls - XM
202
4 HP 18 Automatic Gearbox - Xantia - XM
203
4 HP 18 Automatic Gearbox Controls - Xantia - XM
204
Checks and Adjustments of 4 HP 18 Automatic Gearbox Controls - Xantia - XM
205
Recommendations and Precautions: al 4 and 4 HP 20 Automatic Gearboxes (Xantia - XM - Synergie)
206
Recommendations and Precautions: al 4 Automatic Gearbox (Xantia - XM - Synergie)
207
Recommendations and Precautions: 4 HP 20 Automatic Gearbox (Xantia - XM)
209
Recommendations and Precautions: al 4 and 4 HP 20 Automatic Gearboxes (Xantia - XM)
211
Recommendations and Precautions: 4 HP 20 Automatic Gearbox (Xantia - XM) (Cont.)
212
Recommendations and Precautions: al 4 Automatic Gearbox (Xantia - XM - Synergie) (Cont.)
213
Recommendations and Precautions: Al4 Automatic Gearbox (Synergie)
215
Recommendations and Precautions: 4HP20 Automatic Gearbox (Xantia - XM) (Cont.)
216
AL 4 Automatic Gearbox - Xantia - XM - Synergie
217
4 HP 20 Automatic Gearbox - Xantia - XM
218
Gearbox Controls - 4 HP 20 Automatic Gearbox (Xantia - XM)
219
Gearbox Controls - al 4 and 4 HP 20 Automatic Gearboxes (Xantia - XM)
220
Transmission - Gearbox - All Types
221
Axles, Suspension, Steering
222
Axle Geometry - Xantia
222
Front Axle - Xantia
225
Rear Axle - Xantia
226
Suspension - Xantia
229
Steering - Xantia
230
Axle Geometry - XM
231
Axle Geometry
232
Front Axle - XM
233
Rear Axle - XM
234
Suspension - XM
235
Steering - XM
237
Axle Geometry - Synergie
238
Front Axle - Synergie
239
Rear Axle - Synergie
241
Suspension - Synergie
242
Steering - Synergie
243
Brakes
244
Brake Specifications - Xantia
244
Brakes - Xantia
246
Handbrake - Xantia
247
Bleeding the Brakes - Xantia
249
Brake Specifications - XM
250
Handbrake - XM
251
Parking Brake
251
Bleeding the Brakes - XM
252
Brake Specifications - Synergie
253
Brakes - Synergie
254
Handbrake - Synergie
256
De-Pressurising the Suspension Circuits - All Types
257
Filling and Bleeding the Suspension Circuits
267
Hydrauic System
268
Pneumatic Units - Dampers - Xantia
268
Pneumatic Units - Dampers - XM
273
Pneumatic Units - Dampers: XM - All Types
275
Pneumatic Units - Dampers - XM (Cont.)
276
Electrical System
277
Starter Motors - Xantia
277
Starter Motors - XM
278
Starter Motors - Synergie
279
Alternators - All Types
280
Charging Circuit - Alternator with Mono-Function Regulator (All Types)
287
Pre-Heating and Starting Systems - All Types
288
Air Conditioning
289
Air Conditioning R 134 a (HFC) - All Types
289
Special Features: Air Conditioning System (R 134.A) (All Types)
290
Special Features: Air Conditioning System (R 134.A) (Xantia)
294
Special Features: Refrigeration Circuit (R 134.A) (Xantia)
295
Checking the Efficiency of the Air Conditioning System - All Types
296
Checking Temperatures
296
Checking Pressures
298
Air Conditioning System R134A Diagram (Xantia All Types Except V6 - XUD)
300
Air Conditioning System R134A Diagram (Xantia V6)
301
Air Conditioning System R134A Diagram (Xantia All Types Except HUD)
302
Air Conditioning System R134A Diagram (Xantia - HUD)
303
Air Conditioning System R134A Diagram (XM - All Types Except V6 - 2.5 TD)
305
Air Conditioning System R134A Diagram (XM - V6)
306
Air Conditioning System R134A Diagram (XM - 2.5 TD)
307
Air Conditioning System R134A Diagram (XM - All Types)
308
Air Conditioning System R134A Diagram (Synergie - XU - EW10)
309
Air Conditioning System R134A Diagram (Synergie - DW10)
310
Other manuals for CITROEN XANTIA
Technical Guide
56 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the CITROEN XANTIA and is the answer not in the manual?
Ask a question
CITROEN XANTIA Specifications
General
Brand
CITROEN
Model
XANTIA
Category
Automobile
Language
English
Related product manuals
CITROEN XM
60 pages
CITROEN XSARA
75 pages
CITROEN C5 X 2021
228 pages
CITROEN Xsara 2003
482 pages
CITROEN XSARA 2002
333 pages
CITROEN XSARA PICASSO 2004
523 pages
CITROEN Xsara Picasso 2003
482 pages
CITROEN XSARA PICASSO 2002
333 pages
2005 C4-XSARA-XSARA PICASSO BERLINGO
462 pages
CITROEN C3
202 pages
CITROEN BERLINGO
238 pages
CITROEN C4 PICASSO
420 pages
To Previous PageTo Previous Page
Loading...
Need help?
General
