AXLES

SUSPENSION

STEERING

XANTIA

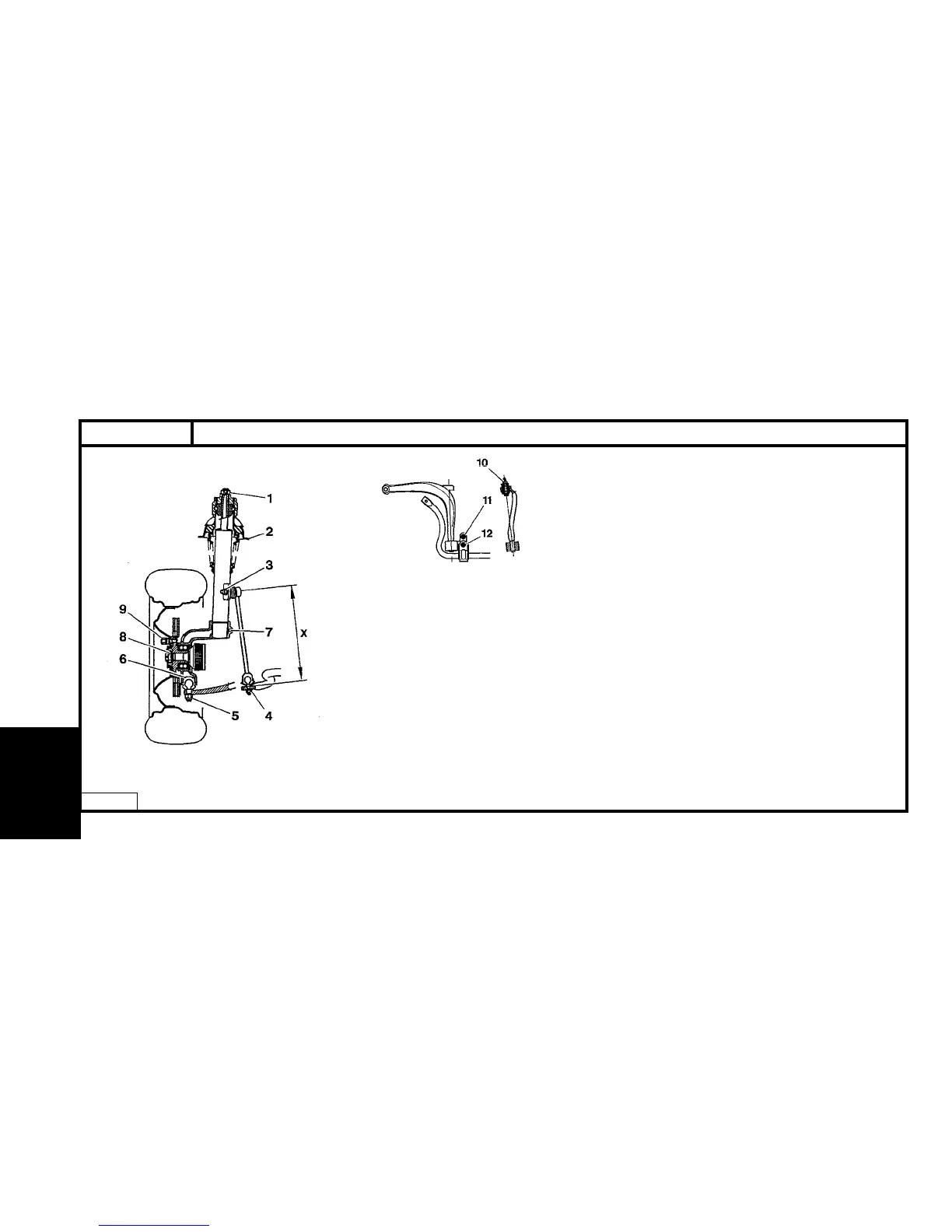

FRONT AXLE

1 - Suspension leg upper fixing (coat with LOCTITE FRENETANCH) 6.5

2 - Suspension leg fixing on bodyshell 2.5

3 - Link rod upper fixing : up to RPO N° 6615 ball joint stem ø 10mm 4

3 - Link rod upper fixing : from RPO N° 6616 ball joint stem ø 12mm 7

3 - SC.CAR ram upper fixing 7

4 - Link rod lower fixing : up to RPO N° 6615 ball joint stem ø 10mm 4

4 - Link rod lower fixing : from RPO N° 6616 ball joint stem ø 12mm 7

4 - SC.CAR ram lower fixing 7

5 - Ball joint fixing 4.5

6 - Ball joint/swivel fixing 25

7 - Suspension leg fixing on swivel 5.5

8 - Driveshaft fixing on hub 32

9 - Wheel fixing 9

10 - Arm front fixing 8.5

11 - Arm rear fixing 8.5

12 - Arm rear fixing/anti-roll bar rear fixing 8.5

B3CP00UD

Tightening torques ( m.daN)

Hauteur de la biellette :

X = 323 ± 1 mm

218
