ENGINE
61
XM
CYLINDER HEAD
Engine : THY

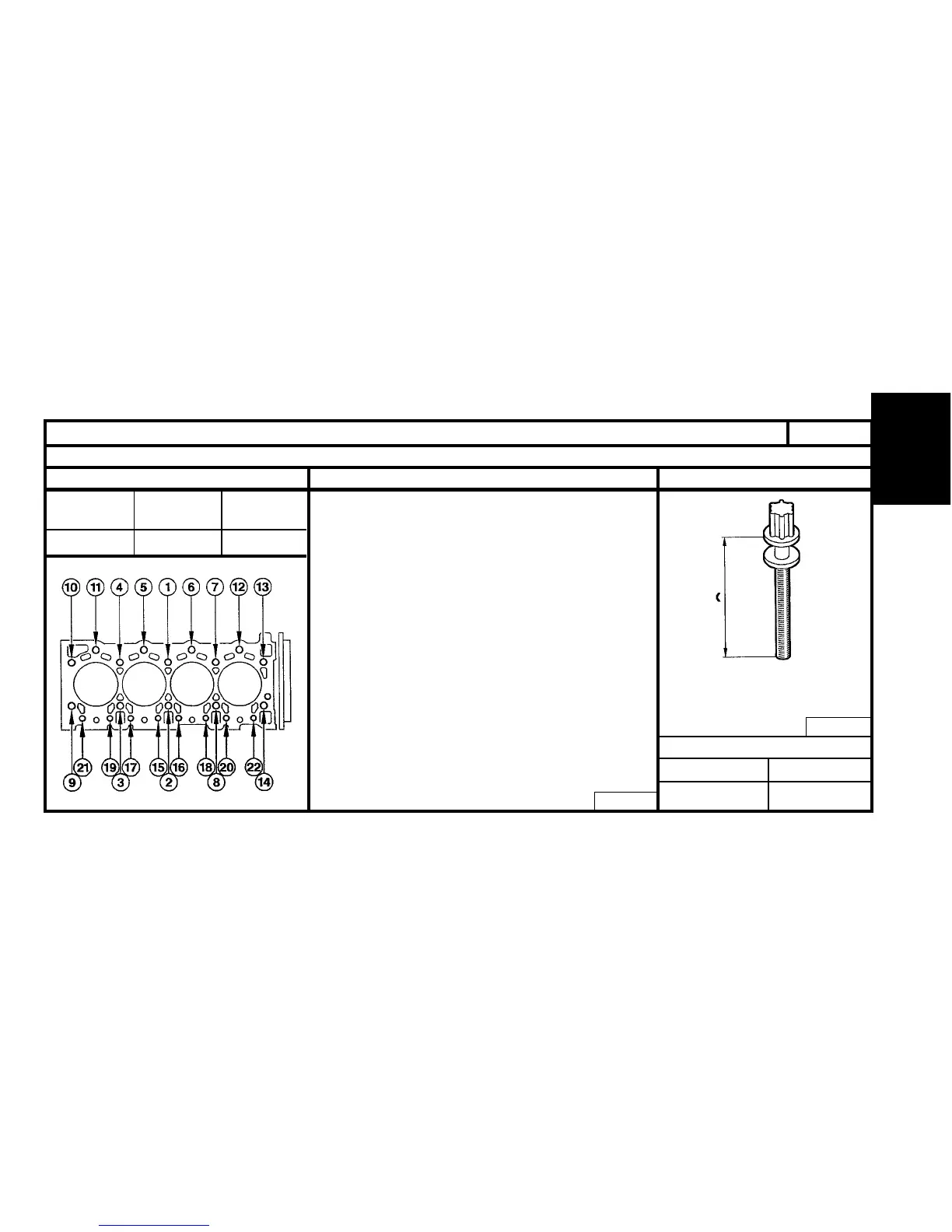

Identification of the cylinder head gasket
Engine type
THY 1.6 None
Thickness
(mm)
Ident.
X = MAXIMUM reusable length
Bolt Ø 12 Bolt Ø 10
153.5 mm 162.5 mm
Cylinder head bolts
Cylinder head tightening ( m.daN)
Note : Oil the threads and under
the heads of the cylinder head
bolts. (Use engine oil or
Molykote G Rapid Plus).
B1DP03XC
Pre-tightening the bolts :
- 1 à 14 (Bolt Ø 12) 5
- 15 à 22 (Bolt Ø 10) 3.5
Angular tightening :
- 1 à 22 (Bolt Ø 12 and 10) 120° ± 5°
B1DP15EC
