TIC VOLTO Hydraulic System
10/04 5-7

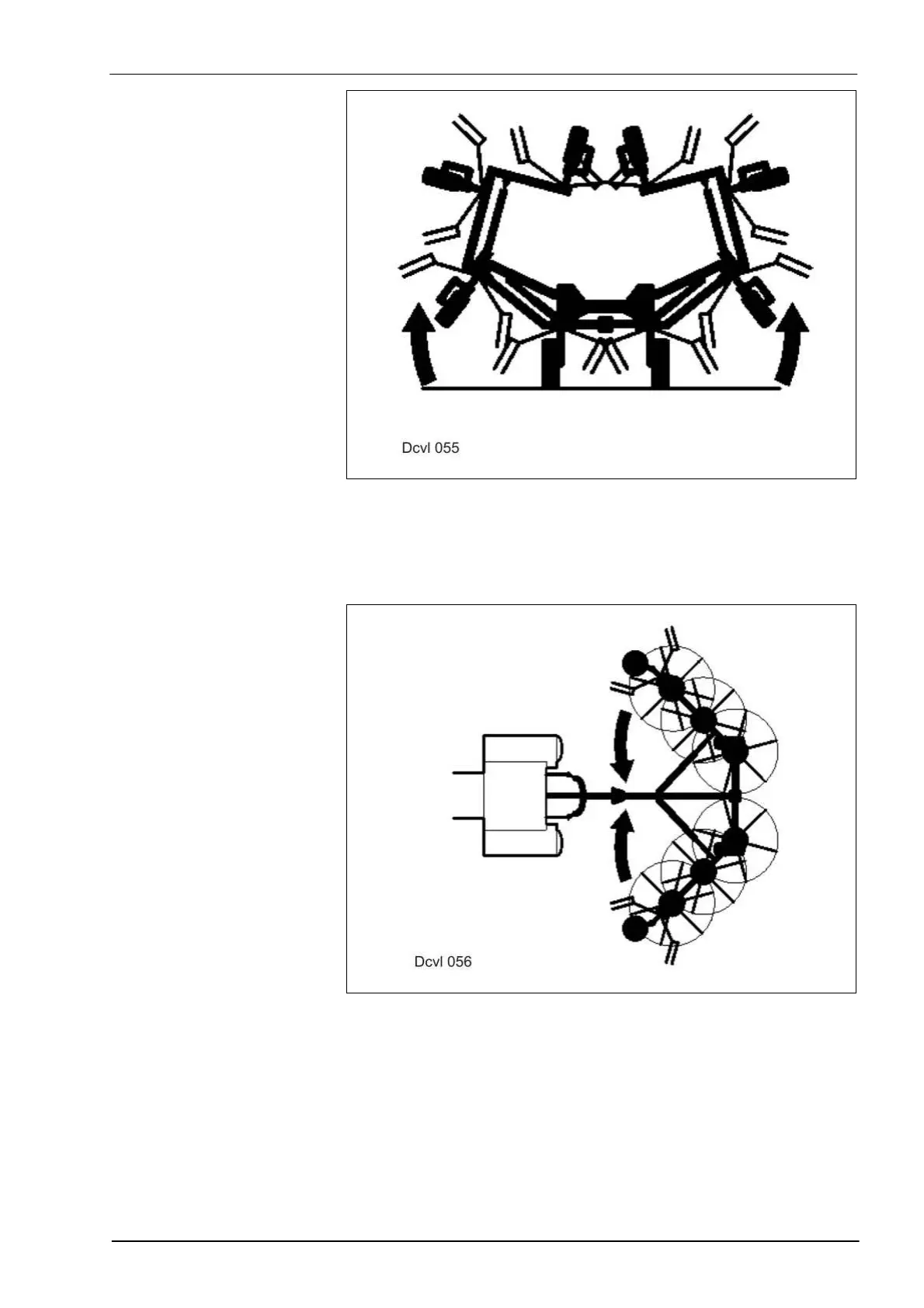

Important! Using the single-acting control unit, raise the side arms up to the stop.
To avoid damage when folding in the side arms, always raise the rotors
up to the stop.
Pull the white rope and fold in the side arms fully using the double-acting
control unit.
