Claas DISCO 3000TRC - Page 27

TIC JAGUAR 8550C Hydraulic / Electric System
10/04 1-23

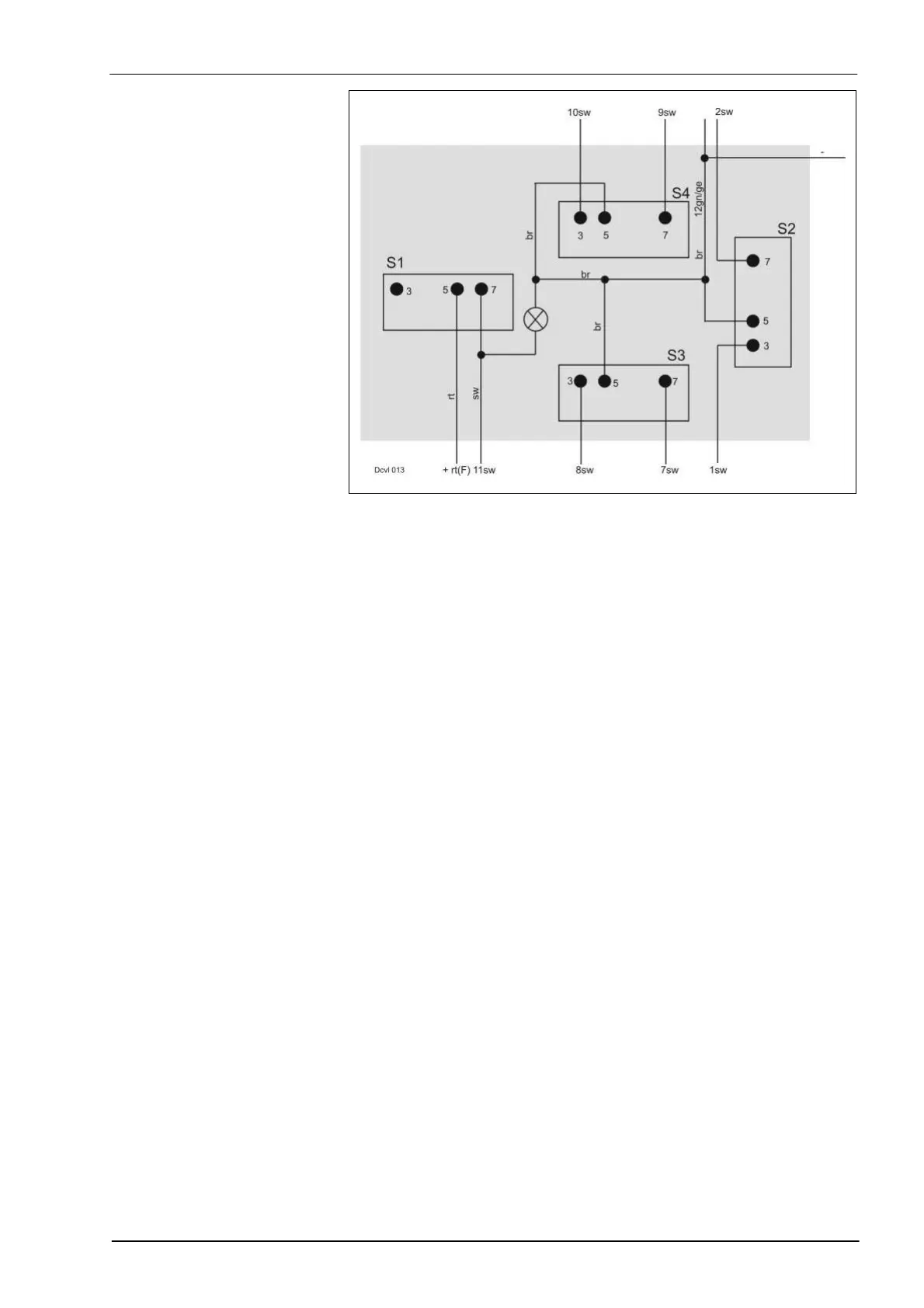

Pin assignment of switches
in the CCT
(as seen from the rear)
S1 Stop switch
S2 Disco fold in/out switch
S3 Left Disco raise/lower switch
S4 Right Disco raise/lower switch
