Claas DISCO 3000TRC - Page 43

TIC JAGUAR 8550C (Tractor) Hydraulic / Electric System
10/04 2-11

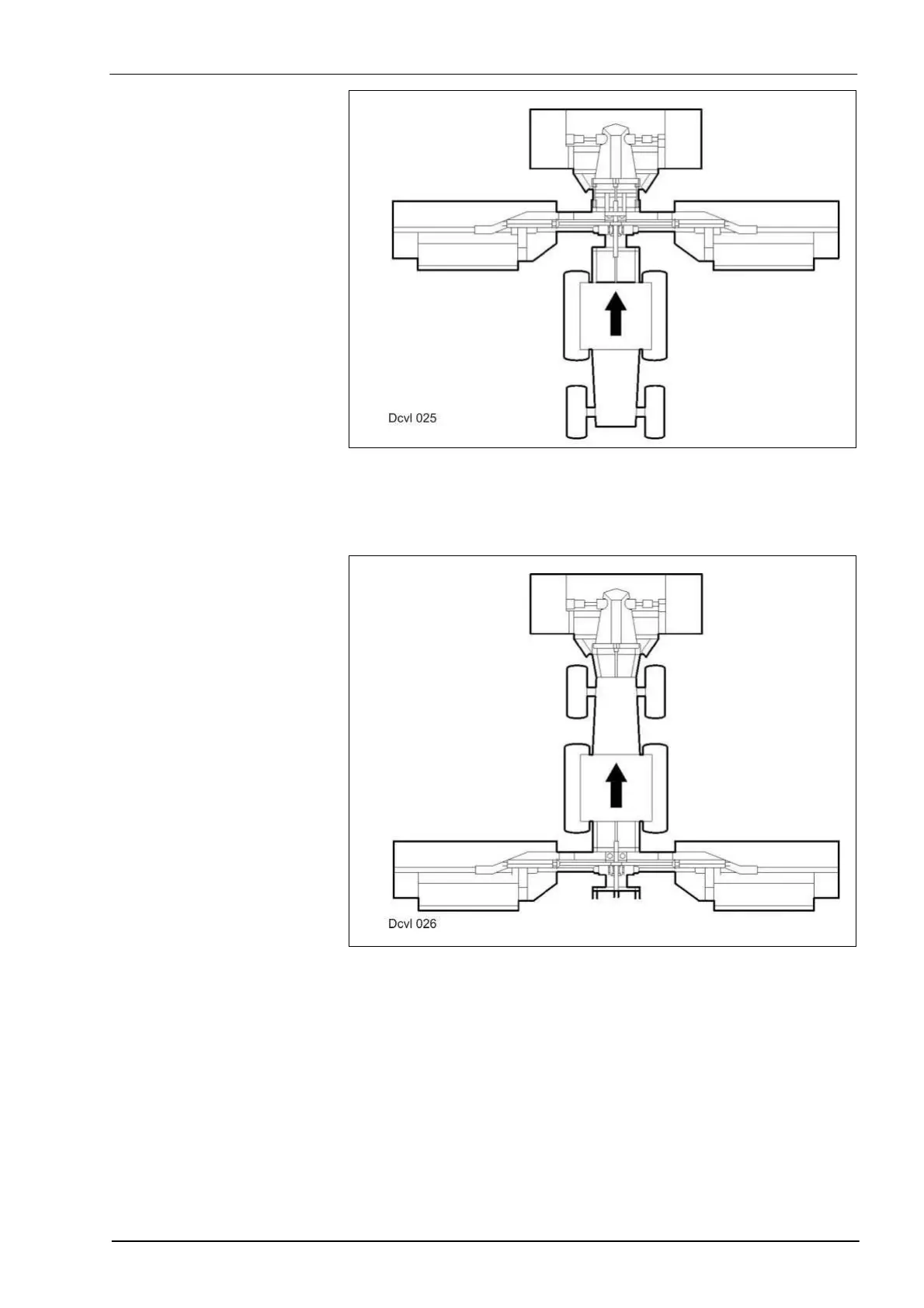

Figure:
Push-type combination
Front mower unit: Standard Disco 3000FC
Side-mounted mower units: Identical with Disco 300C except for the
frame, the drive and the feed drum.
Figure:
Push-type/pull-type
combination
Front mower unit: Standard Disco 3000FC
Side-mounted mower units: Identical with Disco 300C except for the
frame, the drive and the feed drum.
