Clack WS 1 User Manual

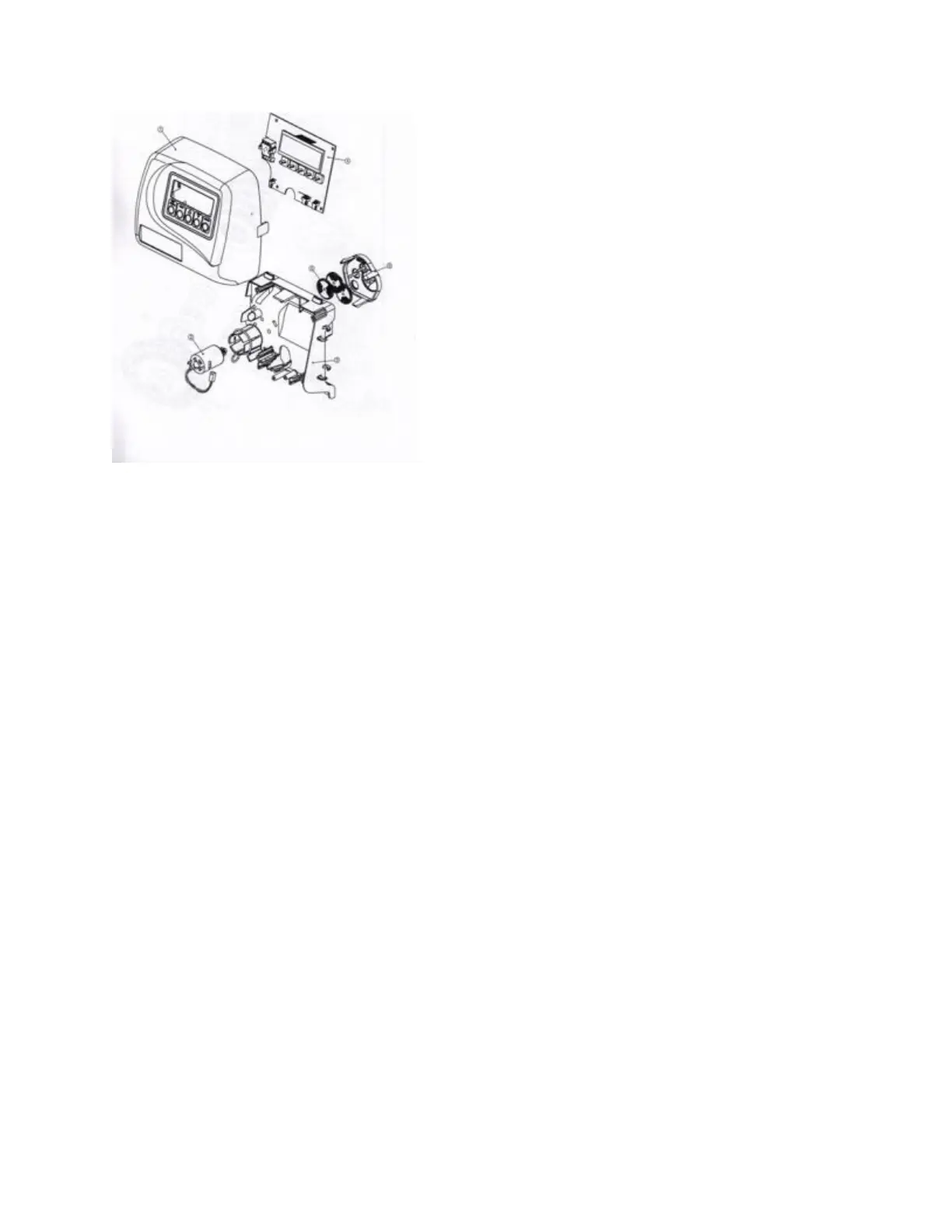

Drive Cap Assembly, Dowoflow Piston, Upflow Piston, Regenerant Piston and Spacer Stack Assembly for
WS1 Clack Water Softener
Drawing No. Order No. Description Quantity
1 V3005 WSI Spacer Stack Assembly 1
2 V3004 Drive Cap ASY 1
3 V3135 0-ring 228 1
4a V3011* WS 1 Piston Downflow ASY 1
4b V301 1-01 WS1 Piston Upflow ASY 1
5 V3174 WS 1 Regenerant Piston 1
6 V3180 0-ring 337 1
V3O11 is labeled with DN and V3011-01 is labeled with UP.
Note: The regenerant piston is not used in backwash only applications.

Clack WS 1 Specifications

General

Model	WS1
Manufacturer	Clack
Service Flow Rate	27 gpm (6.1 m3/h)
Backwash Flow Rate	27 gpm (6.1 m3/h)
Voltage	12 VAC
