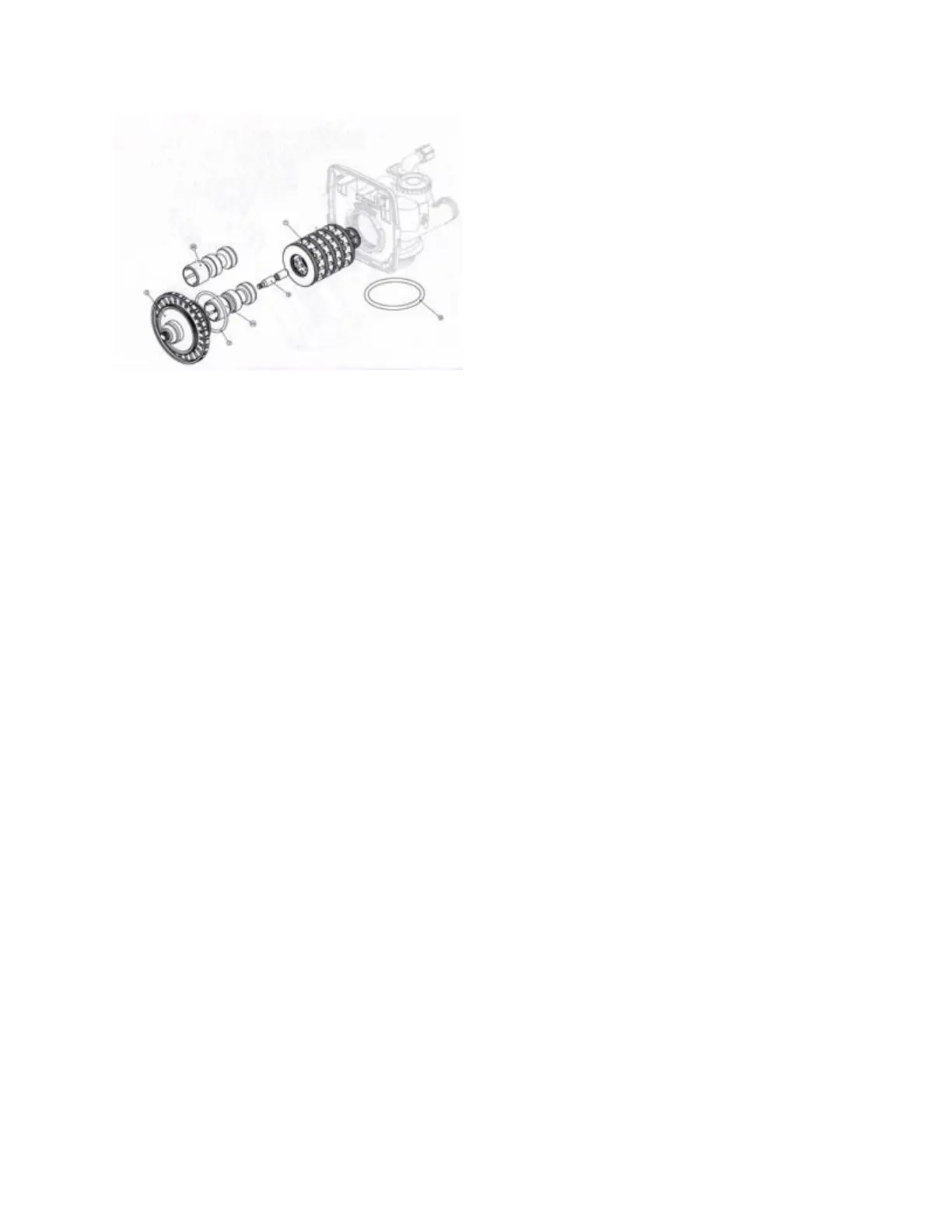

Injector Cap, Injector Screen, Injector, Plug and 0-Ring
Drawing No. Order No. Description Quantity
1 V3176 Injector Cap 1
2 V3152 0-ring 135 1
3 V3177 Injector Screen 1
4 V3010-IZ WS 1 Injector ASY Z Plug 1
V3010-1A WS1 INJECTOR ASYABLACK
V3010-IB WS1 INJECFORASY B BROWN
V3010-IC WS1 INJECTOR ASY C VIOLET
V30I0-ID WS1 INJECTOR ASYDRED
V3010-1E WS1 INJECTOR ASYE WHITE
5 V3010-IF WS1 INJECTOR ASYFBLUE
V3010-IG WS1 INJECTOR ASY G YELLOW
V3010-1H WS1 INJECTOR ASYHGREEN
V3010-1I WS1 INJECTOR ASY I ORANGE
V3010-1J WS1 INJECTOR ASY J LIGHT BLUE
V3010-1K WS1 INJECTOR ASY K LIGHT GREEN
Not Shown V3170 0-ring011
Not Shown V3171 0-ring 013
*The injector ping and the injector each contain one 011 (tower) and 013 (upper) 0-ring.
