Note: For downflow, injector is located in the down hole and injector plug in the up hole. For a filter that
only backwashes, injector plugs are located in both holes, and regenerant piston must be removed.
Refill and Refill Port Plug

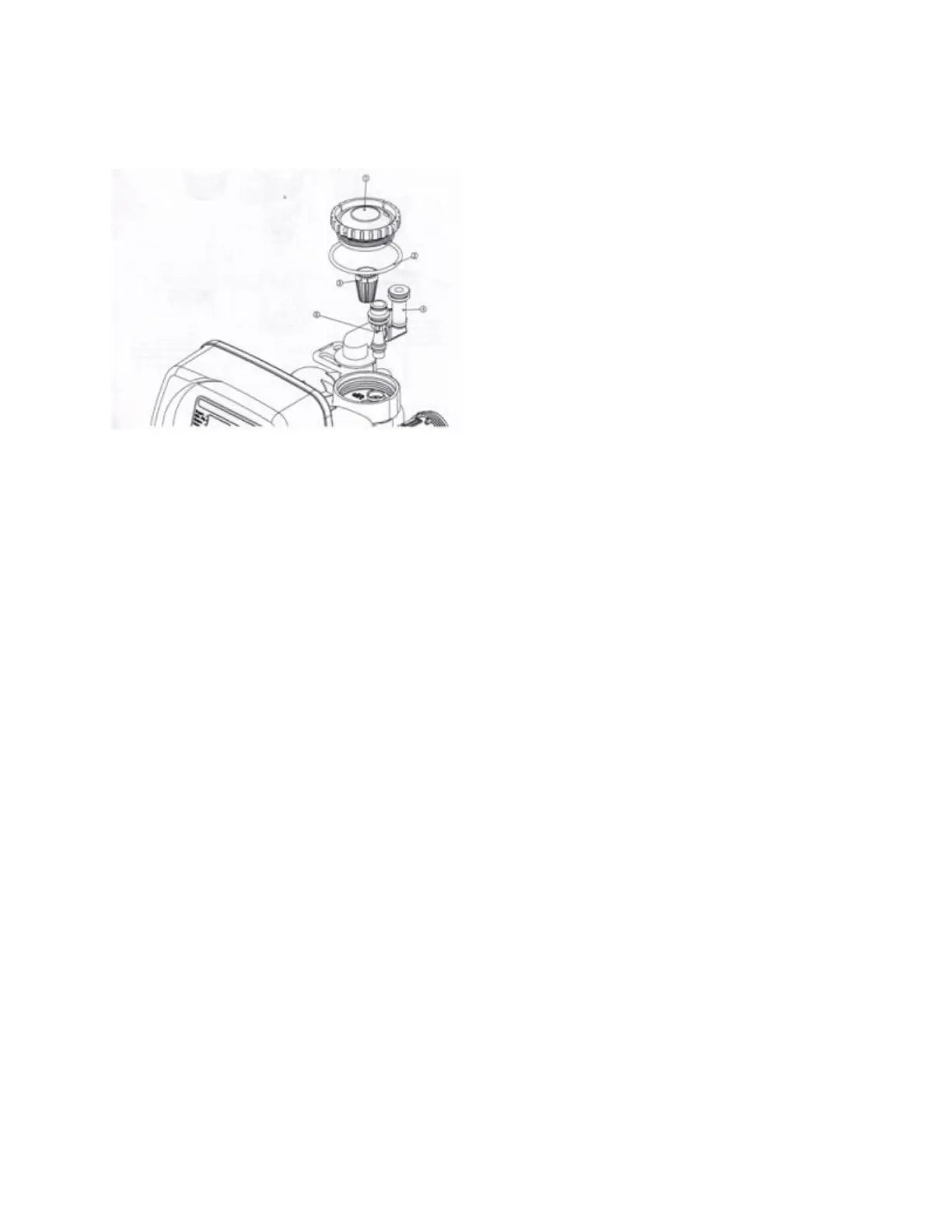

Drawing No Order No. Description Quantity
1 V3195-01 WS Refill Port Plug ASY This part is required for backwash
only systems
2 H4615 Elbow Locking Clip
3 JCP-P-6 Polytube insert 3/8
4 JCPG-6PBLK Nut 3/8
5 014613 Elbow Cap 318
6 V3163 0-ring019 1
7 V3165_01* WS 1 RFC Retainer ASY
8 V3182 WS1RFC 1
Not Shown H4650 Elbow 1/2″ with nut and insert Option
