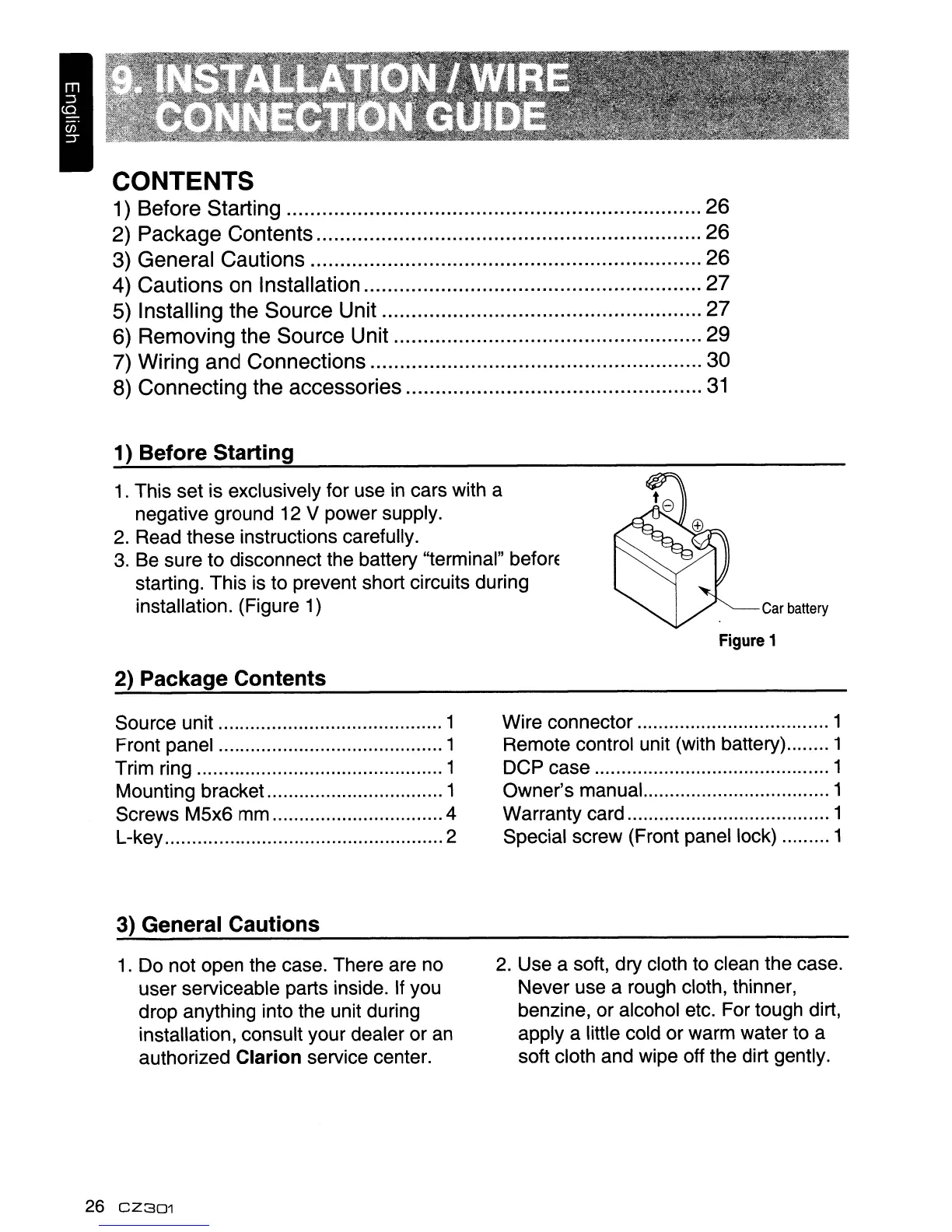

CONTENTS
1)
Before Starting 26
2)
Package Contents 26
3)
General Cautions 26
4) Cautions on Installation 27
5)
Installing the Source Unit 27
6)
Removing the Source Unit 29
7)
Wiring and Connections 30
8)
Connecting the accessories
31
1) Before Starting
1.
This set is exclusively for use
in
cars with a
negative ground
12
V power supply.
2.
Read these instructions carefully.
3.
Be sure to disconnect the battery "terminal"
beforE
starting. This is to prevent short circuits during
installation. (Figure
1)
Car
battery
2) Package Contents
Figure
1
Source unit 1
Front panel 1
Trim ring 1
Mounting bracket 1
Screws M5x6 mm 4
L-key 2
3)
General Cautions
1.
Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or
an
authorized
Clarion
service center.
26
CZ301
Wire connector 1
Remote control unit (with battery) 1
DCP case 1
Owner's manual. 1
Warranty card 1
Special screw (Front panel lock) 1
2.
Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water to a
soft cloth and wipe off the dirt gently.
