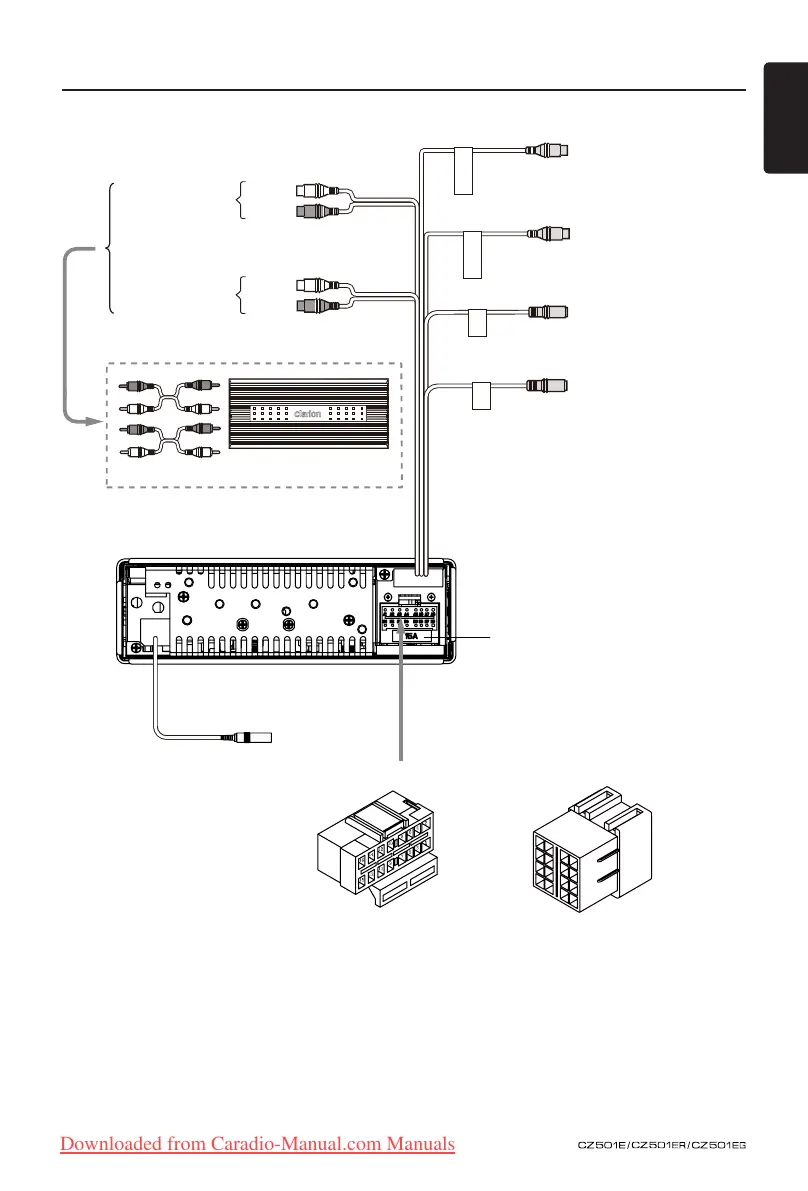

7) Wiring and Connections
Rear audio
output terminal
Front audio
output terminal
Purple
Purple
4 Channel Amplier
Black
Black
Gray
White
White
Left
Left
Right
Right
Red
Red
Black
Steering wheel
control terminal
External Microphone
(RCB-199: Sold by separately)
Subwoofer output 1
Subwoofer output 2
SUB OUT 2
SUB OUT 1
SWC
MIC
Refer to next page
Antenna
Fuse 15A
(Black)
A
B
C
2
4
6
8
1
3
5
7
1
3
5
7
2
4
6
8
