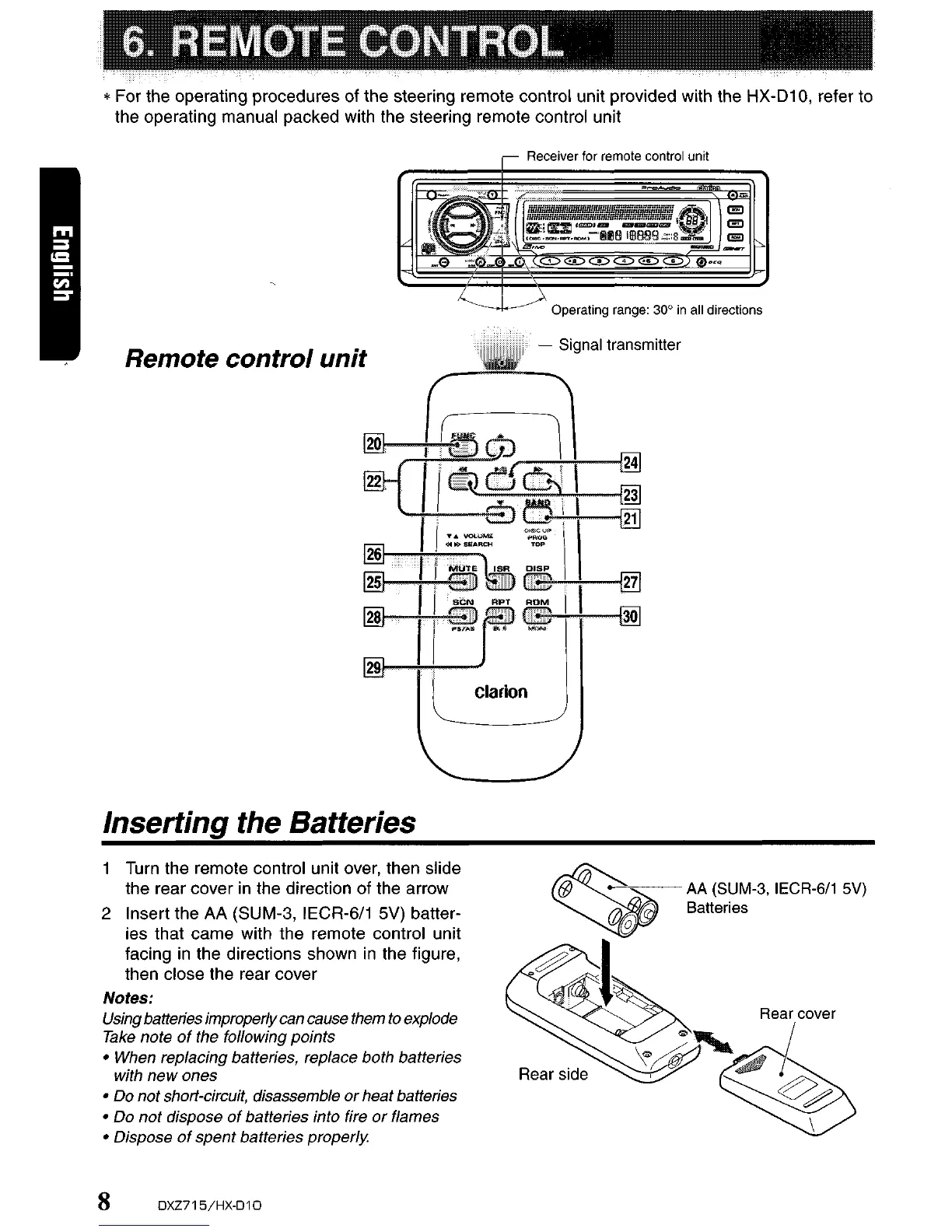

6. REMOTE CONTROL
* For the operating procedures of the steering remote control unit provided with the HX-D10, refer to
the operating manual packed with the steering remote control unit
Receiver for remote control unit
Operating range: 30°
in
all directions
!-+-;-..--[gz]
r+-+--!~
- Signal transmitter
Remote control unit
Inserting the Batteries
Turn the remote control unit over, then slide
the rear cover
in
the direction of the arrow
2 Insert the AA (SUM-3, IECR-6/1 5V) batter-
ies that came with the remote control unit
facing
in
the directions shown
in
the figure,
then close the rear cover
Notes:
Using batteriesimproperlycan cause them to explode
Take
note
of
the following points
• When replacing batteries, replace both batteries
with
new
ones
• Do not short-circuit, disassemble
or
heatbatteries
• Do
not
dispose
of
batteries into fire
or
flames
• Dispose
of
spent
batteries properly.
AA
(SUM-3,
IECR-6/1
5V)
Batteries
8 DXZ715/HX-D1D
