7

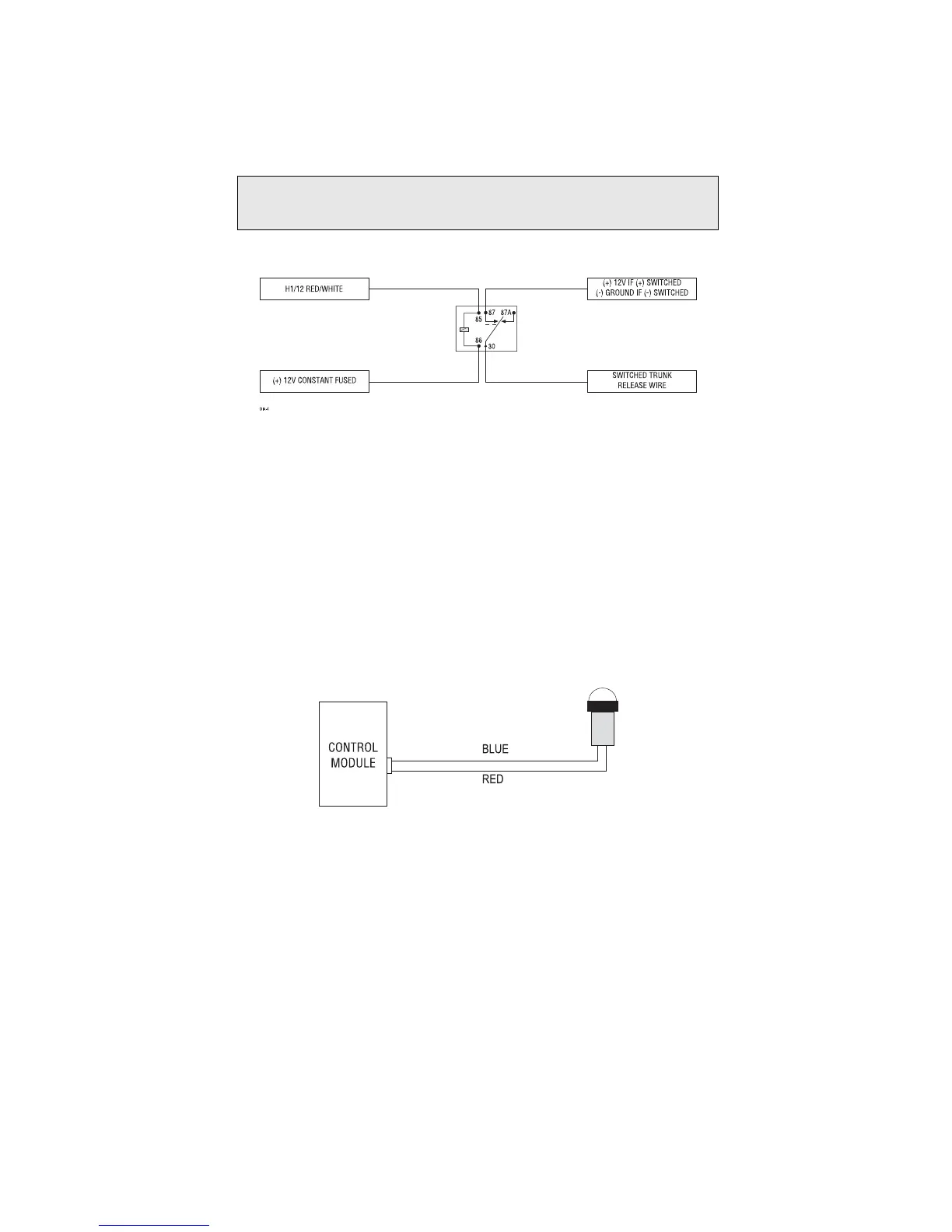

H1/18 RED/WHITE Channel 2, 200mA (-) output
When the system receives the transmitter code controlling Channel 2 for longer than 1.5 seconds, the red/white wire will supply an output as
long as the transmission continues. This is often used to operate a trunk/hatch release or other relay-driven functions.
Peripheral Plug-In Harnesses
Super Bright LED, 2-Pin WHITE Plug
The super bright LED operates at (+) 2 volt DC and plugs into the two-pin WHITE port. Make sure the LED wires are not shorted to ground
as the LED will be damaged. Multiple LED’s can be used, but they must be wired in series. The LED fits into a 9/32-inch mounting hole. Be
sure to check for clearance prior to drilling the mounting hole.
NOTE: Never use a BLUE LED in combination with a RED LED.
DIA-41
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input!
The transistorized output can only supply 200 mA of current. Connecting directly to a
solenoid, motor, or other high-current device will cause it to fail.
