6. REMOVING THE MAIN UNIT
When the main unit is to be removed, disassemble it in the reverse of the order in “INSTALLTING THE
MAIN UNIT” (see page 62).
7. CAUTIONS ON WIRING
• Be sure to turn the power off before wiring.
Be particularly careful where you route the
wires.
• Keep them well away from the engine, and
exhaust pipe, etc. Heat may damage the wires.
• If the fuse should blow, check to see if the
wiring is correct.
If a fuse is blown, replace it with a new one of
the same specification as the original.
• To replace the fuse, remove the old fuse of the
power supply cord and insert the new one.

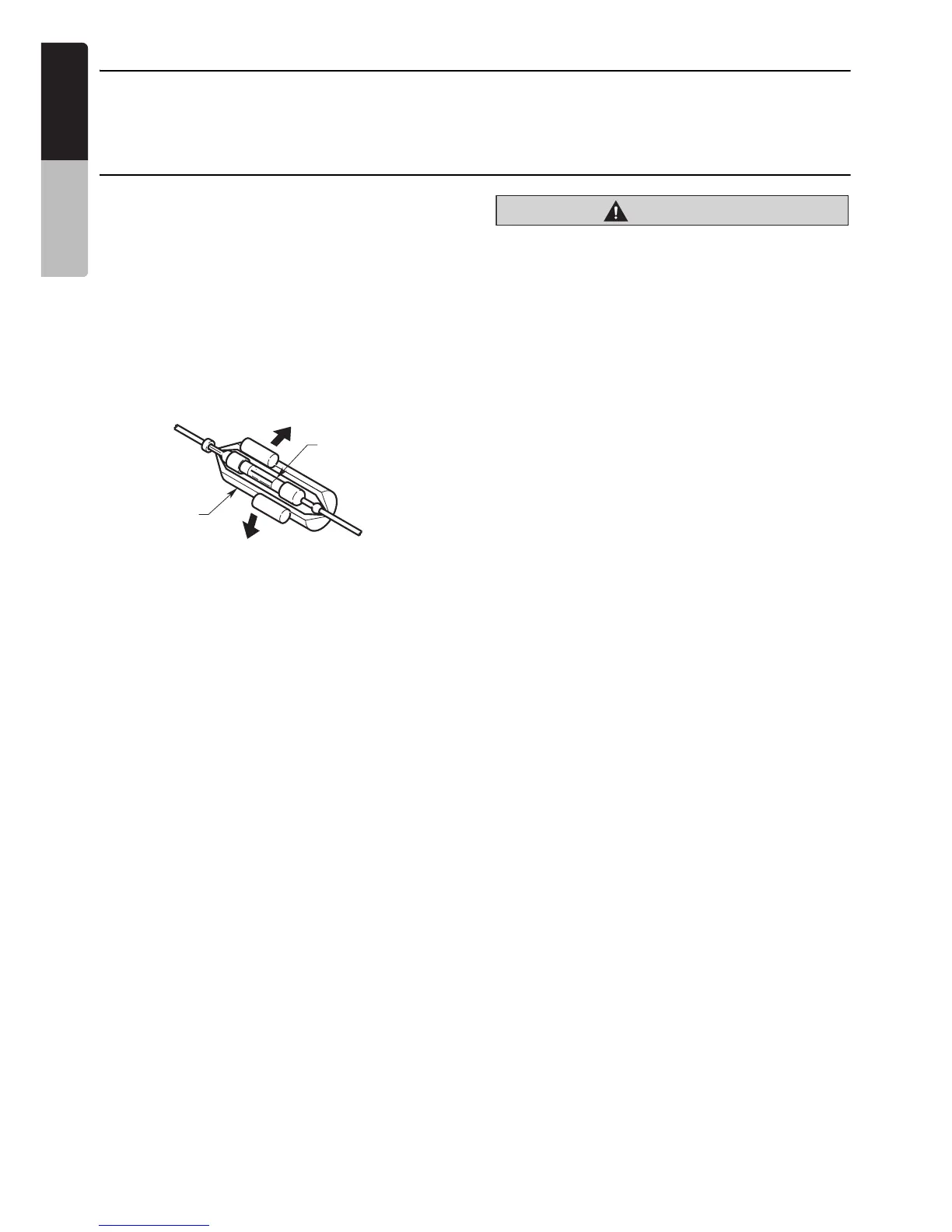

(Figure 8)
Note:
• There are various types of fuse holder. Do not let
the battery side touch other metal parts.
CAUTION
caution
After the connection, fix the cord by a clamp
or insulation tape for protection.
Fuse (15A FUSE)
Figure 8
Fuse holder
