Clarion PH-2761C-F User Manual

PH-2761C
- 4 -
NO. PART NO. DESCRIPTION Q'TY
NO. PART NO. DESCRIPTION Q'TY

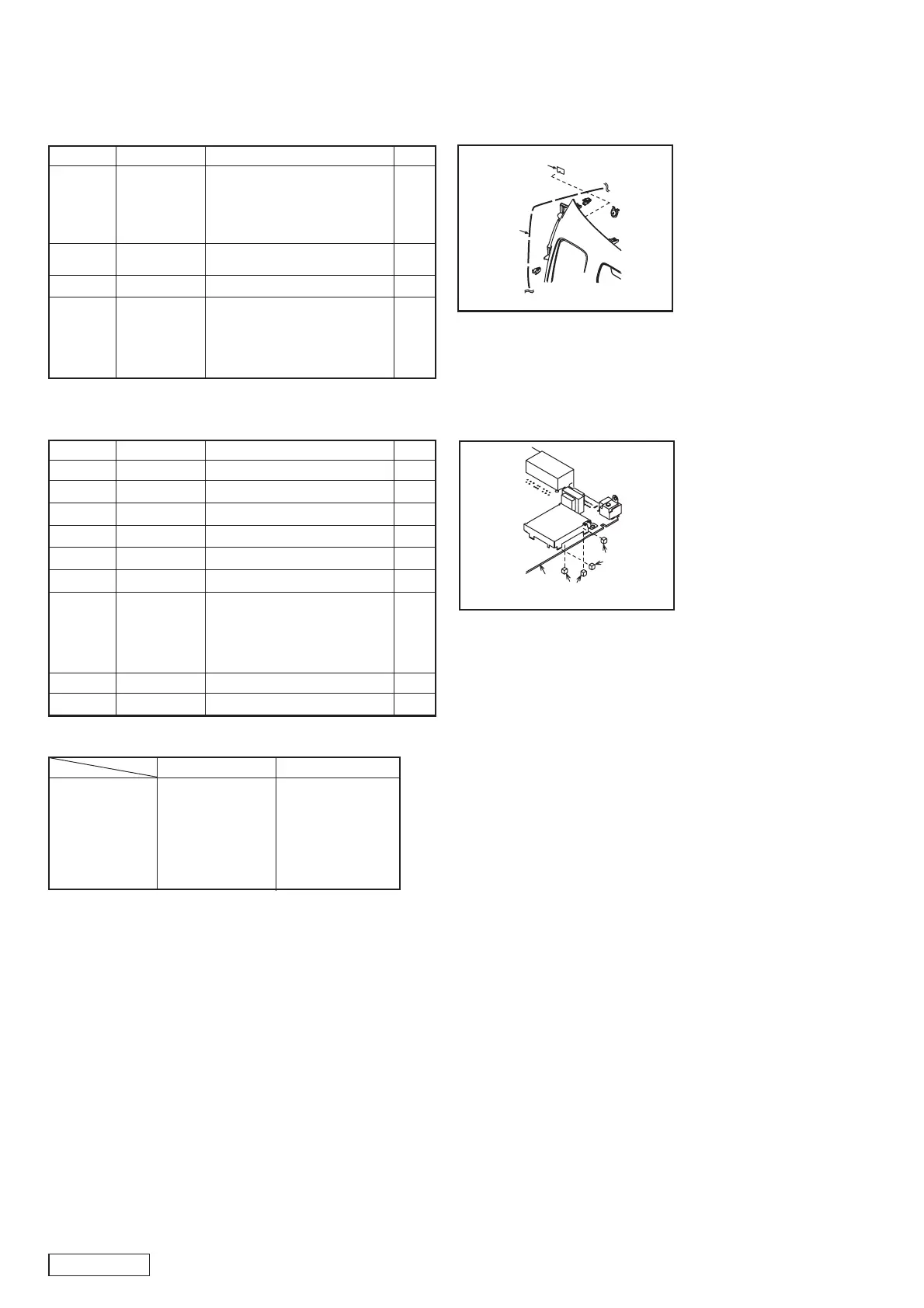

EXPLODED VIEW / PARTS LIST
Escutcheon section
1 940-8109-14 ES-ASSY (PH2761CF) 1
940-8109-54 ES-ASSY (PH2761CG)
940-8109-64 ES-ASSY (PH2761CH)
940-8109-74 ES-ASSY (PH2761CI)
940-8109-84 ES-ASSY (PH2761CJ)
940-8152-40 ES-ASSY (PH2761CK)
5 379-1373-43 LCD (PH2761CF/G/H) 1
379-1339-42 LCD (PH2761CI/J/K)
29 347-7841-51 PROTECTOR 1
30 290-0016-01 LABE (HM-B) (PH2761CF) 1
290-0016-08 LABEL(HM-H) (PH2761CG)
290-0016-02 LABEL(HN-B) (PH2761CH)
290-0016-03 LABEL(HP) (PH2761CI)
290-0016-04 LABEL(HQ) (PH2761CJ)
290-0016-19 LABEL(TL-B) (PH2761CK)
Main section
4 310-1817-02 UPPER CASE 1
8 345-8581-03 GASKET 2
10 816-4028-50 FLAT WIRE 1
16 345-8720-00 GASKET 2
17 714-2603-8B MACHINE SCREW(M2.6x3) 2
19 929-5000-80 CD-MECH-MODULE 1
21 286-6685-11 SETPLATE (PH2761CF) 1
286-6685-13 SETPLATE (PH2761CG)
286-6685-14 SETPLATE (PH2761CH)
286-6685-17 SETPLATE (PH2761CI)
286-6685-18 SETPLATE (PH2761CJ)
286-6685-28 SETPLATE (PH2761CK)
22 ----------- SOCKET CVR(Unused) 1
31 074-1237-79 OUTLET SOCKET(MECH) 1
*
Other parts are the same as the original model. Please refer to page 10 of the original service manual.
*
Other parts are the same as the original model. Plaease refer to page 11 of the original service manual.
1
30
8
1
16
NOTE)
ES color code LCD color
PH-2761C-F(M-B) NH608L BLUE
PH-2761C-G(HM-H) YR334L BLUE
PH-2761C-H(HN-B) NH608L BLUE
PH-2761C-I(HP) NH608L AMBER
PH-2761C-J(HQ) NH608L AMBER
PH-2761C-K(TL-B) NH608L AMBER
