Page 8 - MS5500 Installation Manual

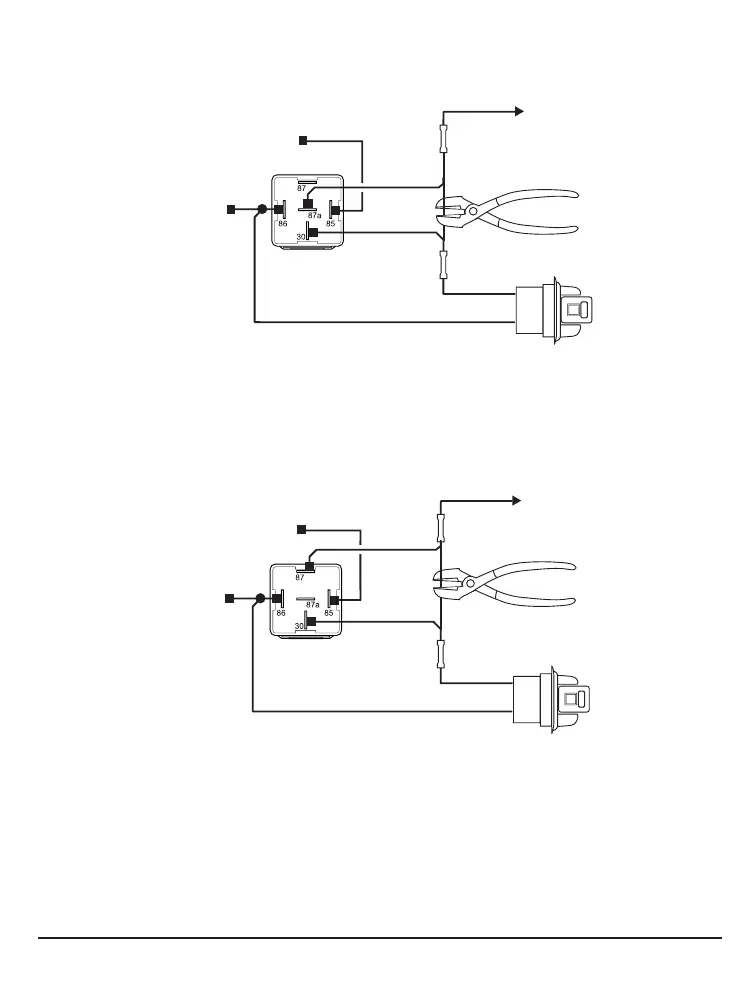

Pin 11 - BLUE: Starter Defeat Normally Closed (-) output
Provides a negative output while the alarm is Armed and during alarming to disable the
vehicle’s starter circuits. Connect to the provided Starter Kill Relay socket as shown.
In this configuration, the vehicle’s starter will be disabled only when the system is armed and
alarming. If power to the system is lost or the system becomes disconnected, the vehicle
will be able to start.
Pin 12 - BLUE/red: Starter Defeat Normally Open (-) output
Provides a negative output while the system is Disarmed to enable the starter circuits.
Connect to the provided Starter Kill Relay socket as shown.
In this configuration, the vehicle will only start when the system is both connected and
disarmed.
Pin 13 - RED/yellow: Parking Light (+/-) output [on-board relay, 7.5A Fuse]
Provides +12v or ground (-) to flash the parking lights. Do not connect this wire to parking
light circuits that exceed 10 amps. For vehicles that have independent left and right parking
light circuits, the parking light wires must be connected using diodes to keep the circuits
separate. See Jumper Settings to select polarity.
RED
BLACK
to alarm
VIOLET wire
to alarm
BLUE/red wire
to Starter
Solenoid
cut
VIOLET
to Ignition Key +12v
in “on” and “start”
BLUE
RED
WHITE
to alarm
VIOLET wire
to alarm
BLUE wire
to Starter
Solenoid
cut
VIOLET
to Ignition Key +12v
in “on” and “start”
BLUE
