Clark WPL 25 - Electronic Display and Indicators

3.4
1
2
3
4
5

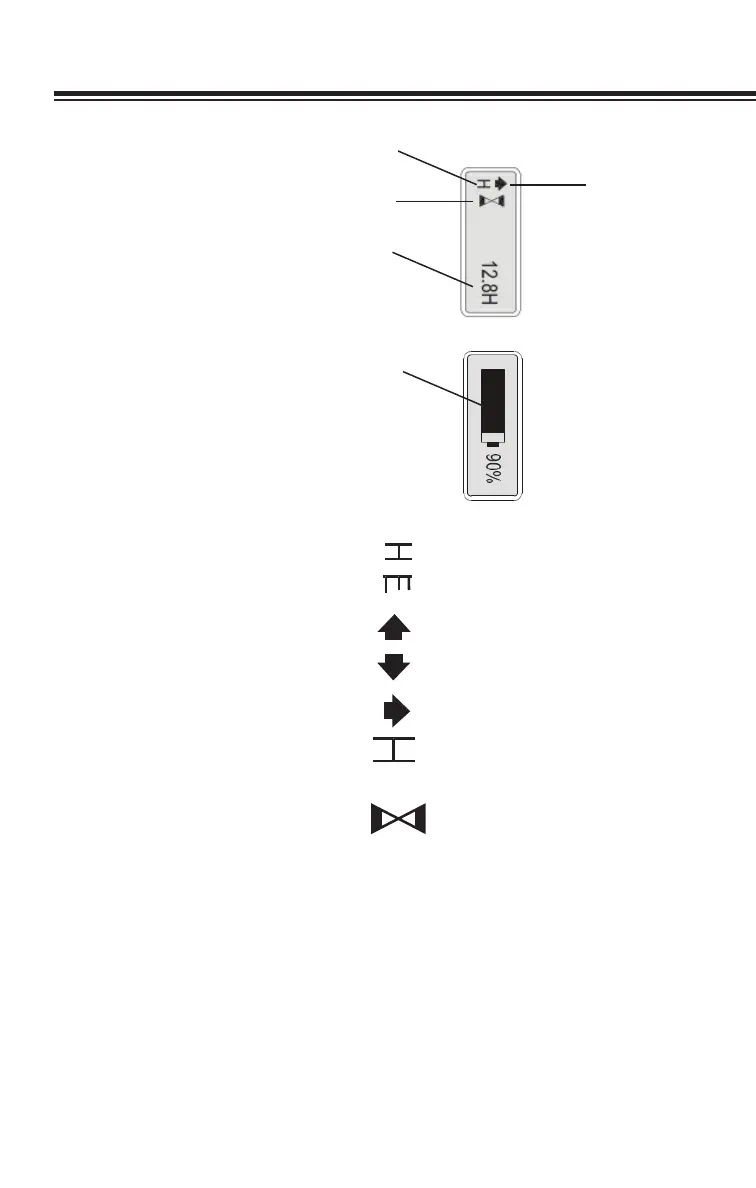

Electronic Display WPL25
1. Horn Status
2. Function Indicator
3. Hour Display
4. Interlock Switch Status
5. Battery Indicator
When the truck is functioning proper-
ly the display will alternate between
the hour meter and the battery state
of charge.
The battery indicator shows the
actual charge level of the truck's
battery. This is used to indicate the
degree the battery has been drained
of charge. The indicator is to be read
when the unit is at rest with the key
"ON" and with no motor running.
The hour meter displays the time the
drive motor and/or the pump motor
has operated.
Hour
Meter
Battery State of
Charge Scale
Common Truck
Horns works properly, ashing
Reverse switch works properly,
ashing
Travel forward properly, ashing
Travel backward properly,
ashing
Lifting properly, ashing
Control level connection fault,
ashing
Steady: interlock switch opened .
Flashing: interlock switch closed,
recording hours.
