Machine Transportation
To transport the machine, follow this procedure:
1. Unplug machine from wall outlet and wrap cord.
2. Raise and lock the handle to the vertical and upright position.
To lock the handle, unhook the knurled collar by raising and
twisting it (see fi gure 1), and then allow it to slide into the
black cast iron weight (see fi gure 1A).
3. Unlock the three levers that attach the black cast iron weight to
the base machine by lifting up.
4. Unplug the interconnect cord from the base machine. Now the
handle can be lifted separately and placed in the cargo hold.
5. The base machine can be lifted by grasping both the front lift
handle and underneath the axle area (see fi gure 2).
WARNING: The machine is heavy (67 lbs./34kg). The
handle weight is 35 lbs./16 kg. To avoid injury
or damage to the machine use a fi rm grip and
proper lifting technique. Get assistance if
necessary.
6. Secure machine to prevent movement in cargo area.

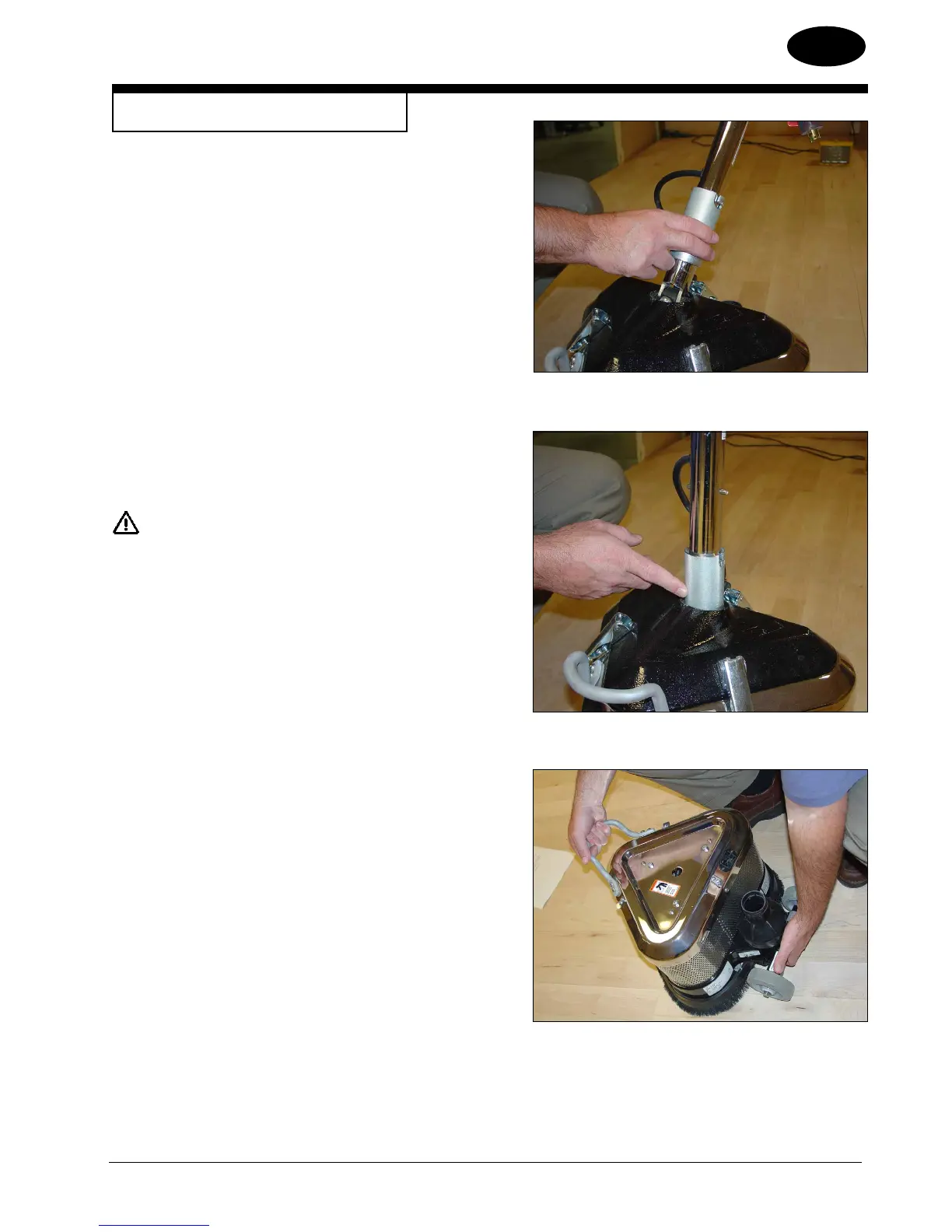

Figure 1
Figure 1A
Figure 2
