Continuing to press the “Arrow Down” (B) key will bring up another screen with four more parameters
that can be added to the “Auxiliary Parameters” display.
Use the “Arrow” (A&B) keys to highlight the parameter to add to the “Auxiliary Parameters” display. Then press
the “Enter” (E) key. This will confirm the selection and recall the “User Gauges” menu.

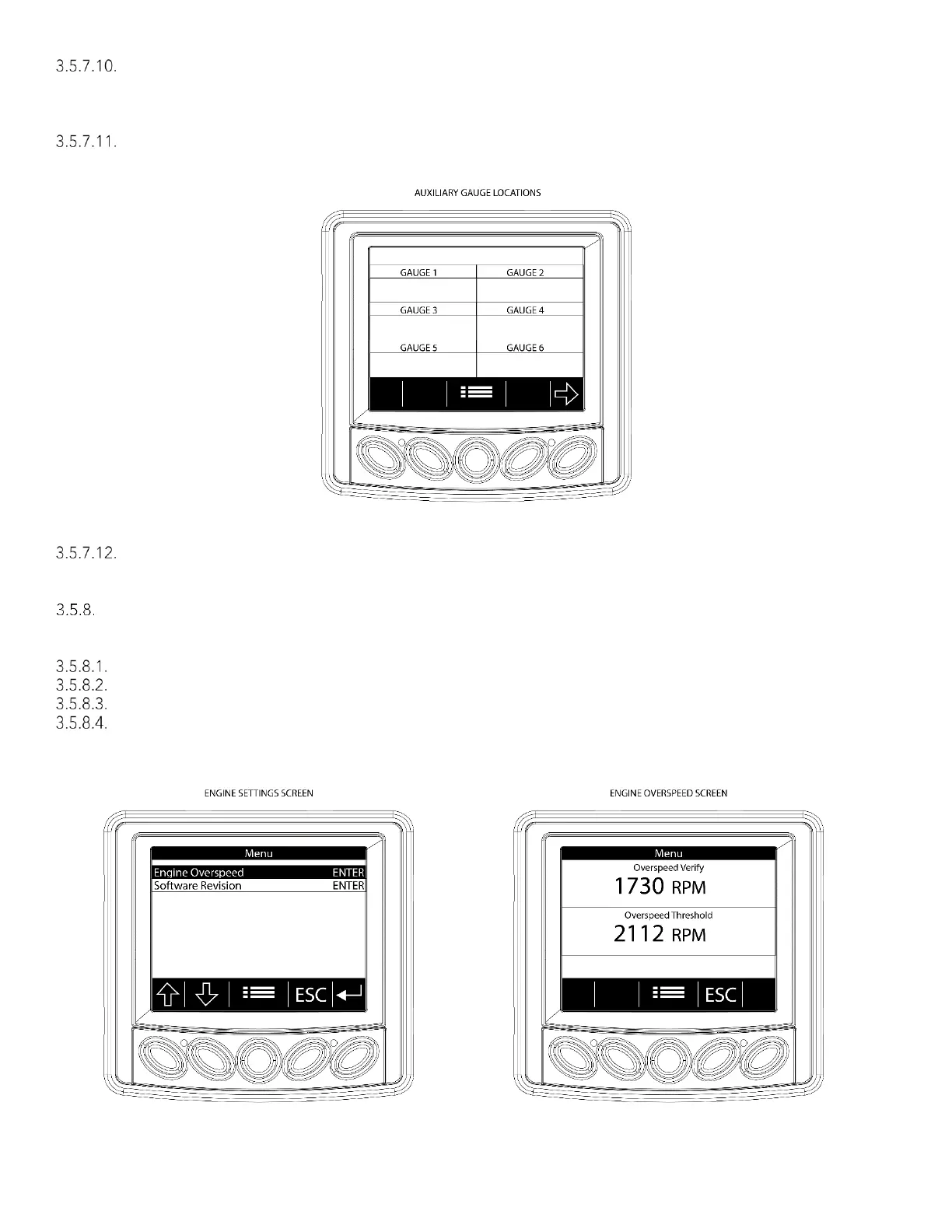

The following screen is a key depicting the locations of Gauge 1 - Gauge 6 on the “Auxiliary Parameters”
display.
Figure 3-15
To return to the six-up display from the “Auxiliary Parameters” screen, press the “Arrow Right” (E) key
once or the “Menu” (C) key twice.
Engine Settings Data
NOTE: The engine settings data is a read only function. All engine settings parameters are pre-set by Clarke.
This menu is primarily used for trouble shooting activities.
Starting at the six-up display, press the “Menu” (C) key.
Use the “Arrow” (A&B) keys to scroll through the menu until “Engine Settings” is highlighted.
Press the “Enter” (E) key to view the Engine Settings Screen.
Pressing the “Enter” key on Engine Overspeed will display the Engine Overspeed Setpoint Screen. It displays
the engine speed (RPM) required to trip the overspeed alarm during a verification of that alarm circuit and the
engine speed (RPM) required to activate the overspeed alarm during normal operation.
