Clarke
®
Operator's Manual- CFP Polisher FORM NO. 70880A - 35 -

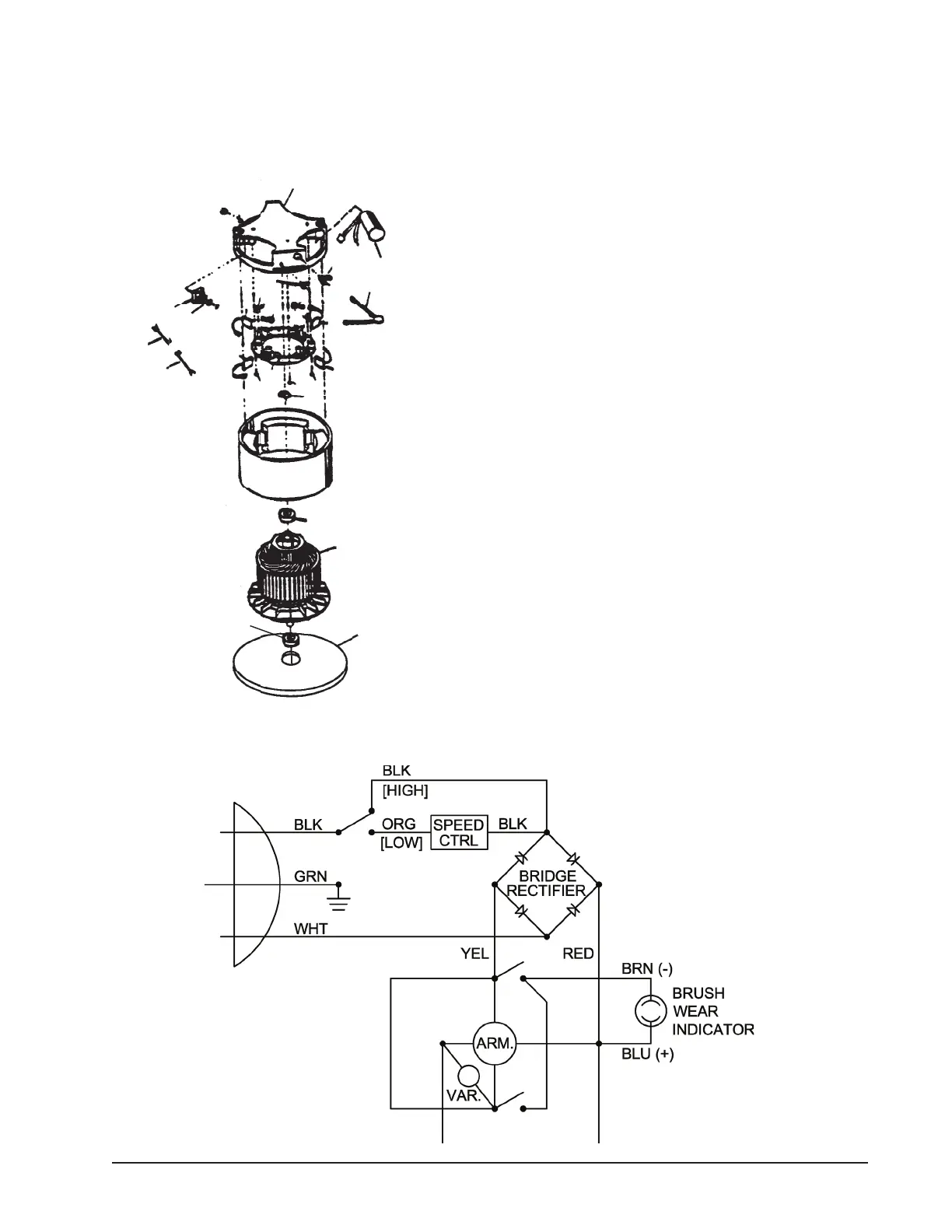

Motor Assembly [CFP-1700DS, 2000DS]
MOTOR 40764A
Item Ref. No. Qty Description
# 40764A 1 Motor 1.5HP TS (1700DS, 2000DS) (120V/60Hz)
2 N/A 1 Commutator Bracket
4 912287 1 Rectifi er, Bridge
6 448396 4 Spring (Included with 8)
7 51405A 4 Brush Asm., (Included with 8)
8 51435A 1 Brush Board Asm. (includes 6,7,16, 18,19)
9 962546 8 Screw, 10-24 x 1/2 Type 23
10 980608 1 8 Flat Washer
11 902606 1 Bearing, Ball - 6002
12 902550 -1 Bearing-Ball- 6203 (Included with 13)
13 40322A 1 Armature Asm. (Includes 12)
14 N/A 1 Strain Relief
15 N/A 1 Bushing
16 55648A 1 Red Lead (Included with 8)
17 980076 1 Wave Washer
18 55647A 1 Yellow Lead (Included with 8)
19 59606A 1 Varistor (Included with 8)
20 56039285 1 Speed Control
21 53849A 1 Plate, Mounting
NI 80141A 6 Screw, 10-32 x 1
NI 40851A 1 Toggle Switch
# = Revised or new since last update
120V Motor Schematic
2
20
15
19
4
10
16
18
14
6
6
6
6
7
7
9
9
8
9
17
12
13
21
11
revised 11/13
