- 36 - FORM NO. 70880A Clarke
®
Operator's Manual- CFP Polisher

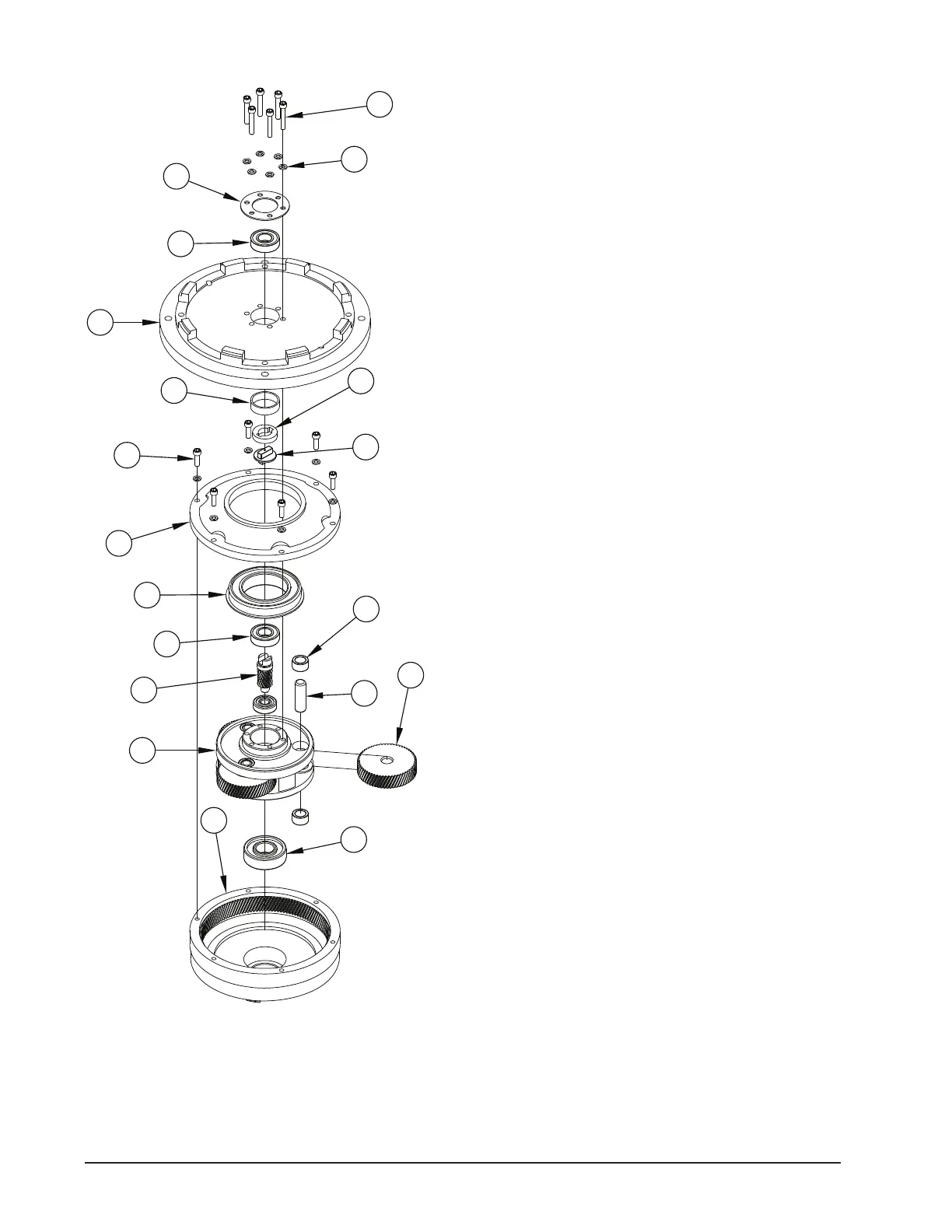

GEARBOX ASSEMBLY
Ref Ref. No. Qty Description
# 53645A 1 Gearbox 1HP (CFP-130, CFP-170, CFP-200)
# 53646A 1 Gearbox 1.5HP (CFP-1700, CFP-2000)
# 53647A 1 Gearbox 1.5HP TS (CFP-1700DS, CFP-2000DS)
1
# 80141A 6 Screw 10-32 X 1 Machine
2# 980650 6 Wash .19 x .34 x .04 Lock
3# 56922A 1 Plateretainergearbox For 45
4# 902606 3 Bearing Ball 6002
5# 58520A 1 Spacersleevegearbox For 450
6# 53849A 1 Plate Mounting Dual Speed (53647A)
# 53848A 1 Plate Mounting Single Speed (53645A, 53646A)
7# 84808A 6 Screw 10-24 X 3/4 RD SZ PH
8# 54858A 1 Housing Covergearbox For 450
9# 902736 1 Bearingball-6010W/Snap Ring
10# 58314A 1 Shaft Retainergearbox For 450
11# 69195A 1 Coupling
12# 58313A 1 Gearpiniongearbox For 45023
13# 902737 6 Bearing Needle 1/2X11/16X3/8 (53646A, 53647A)
# 902737 4 Bearing Needle 1/2X11/16X3/8 (53645A)
14
# N/A 1 Cage
15# 54408A 3 Gearplanetgearbox For 45023 (53646A, 53647A)
# 54408A 2 Gearplanetgearbox For 45023 (53645A)
16
# 58312A 3 Shaftplanetgearbox For 4502 (53646A, 53647A)
# 58312A 2 Shaftplanetgearbox For 4502 (53645A)
17
# 902654 1 Bearing Ball-6204
18# 54856A 1 Drive HSGF/44635A G/RVP/C LI
*# 503802 1 Grease - 14 Ounce Tube NOTE 1
* = Optional, Not Included
# = Revised or new since last update
NOTE 1: Gearboxes 53646A & 53647A use 8 ounces of grease. Gearbox 53645A uses 9
ounces of grease.
revised 11/13
1
2
3
4
5
6
7
8
9
10
11
4
12
13
14
15
16
17
18
To Next Page
