12
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PREPARATION FOR USE

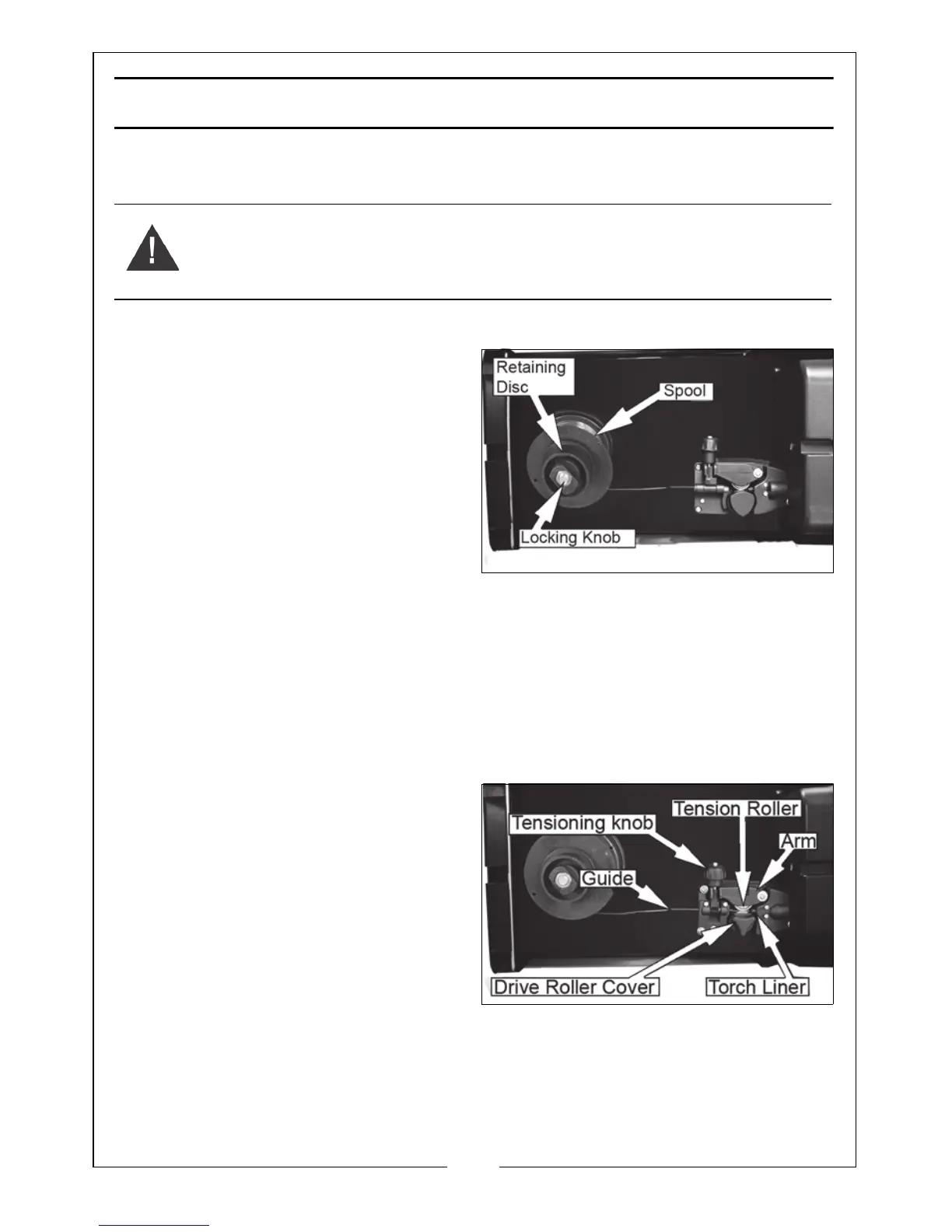

MOUNTING THE WELDING WIRE SPOOL
NOTE: Spools of welding wire are available from your Clarke Dealer.
1. Open the cover, by sliding the top
back ,and then lift the cover open
as shown on page 9.
2. Remove the locking knob and
retaining disc.
3. Place the spool of welding wire
(supplied) over the spindle so that
it sits on the spring.
• Do not release the tension on
the wire as it will unravel causing feeding problems later.
• The wire will feed off the spool anticlockwise from the bottom of the
reel.
• The spool must be fitted with the correct orientation otherwise it will
not feed correctly.
SETTING THE DRIVE ROLLER SIZE
1. Loosen the tensioning knob and
pivot it towards you.
2. Lift up the arm.
3. Take hold of the triangular knob
on the drive roller cover and
rotate it 90°anticlockwise to
release it.
4. Pull the roller retainer off the drive
spindle to reveal the roller.
Warning: Ensure that the welder is not connected to the mains supply.
