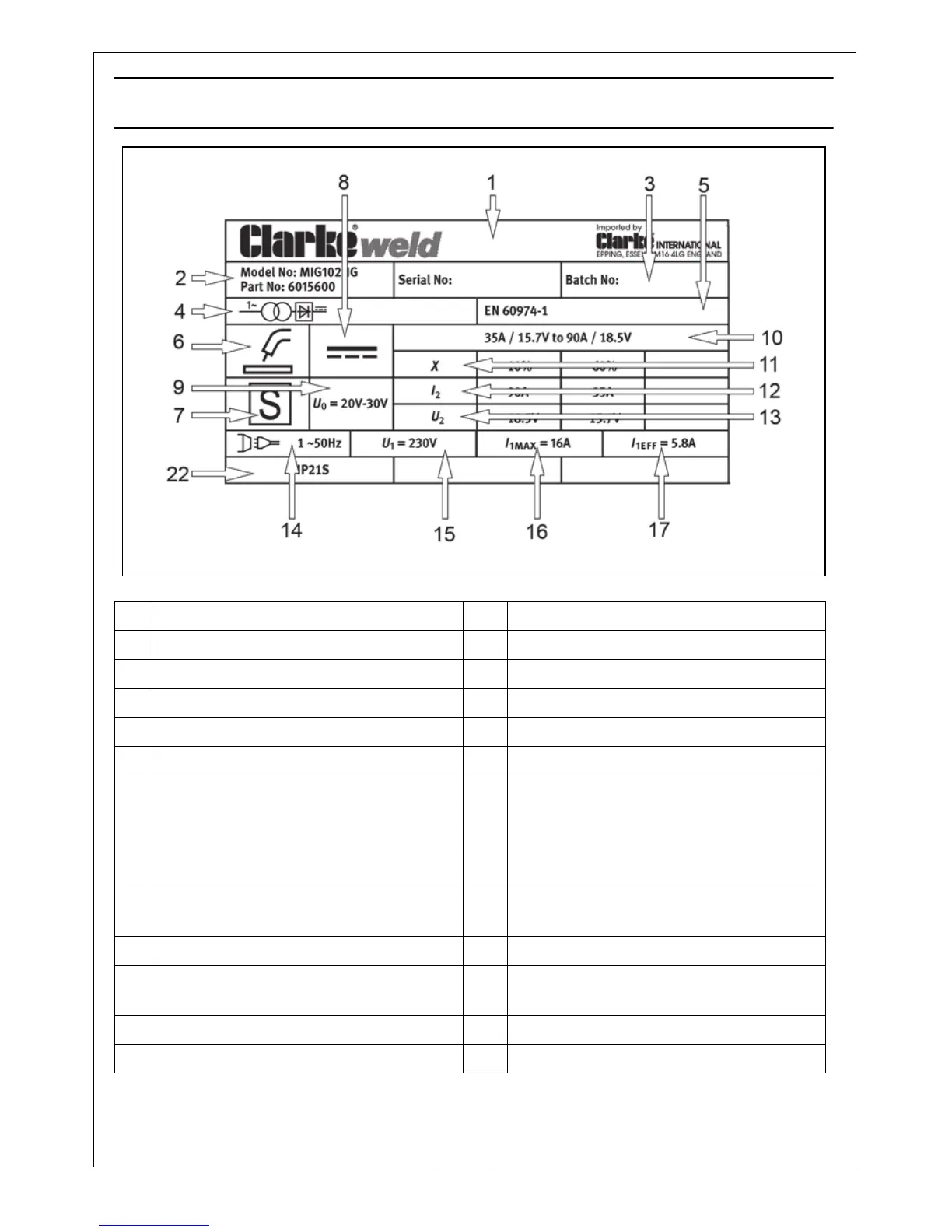

RATING PLATE
1 Name and address of manufacturer 13 Load Voltage symbol
2 Model number, part number 14 Energy Input symbol
3 Batch number 15 Rated supply voltage
4 Single phase transformer-rectifier 16 Rated maximum supply current
5 British Standards applied 17 Maximum effective supply current
6 Welding process 18 N/A
7 This symbol indicates that the unit is
suitable for carrying out welding
operations in an environment which
has an increased risk of electric
shock.
19 N/A
8 Welding Current symbol - direct cur-
rent.
20 N/A
9 Rated no-load voltage 21 N/A
10 Min+max welding current and corre-
sponding load voltages
22 Degree of protection
11 Duty Cycle symbol 23 N/A
12 Rated Welding Current symbol 24 N/A
