10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

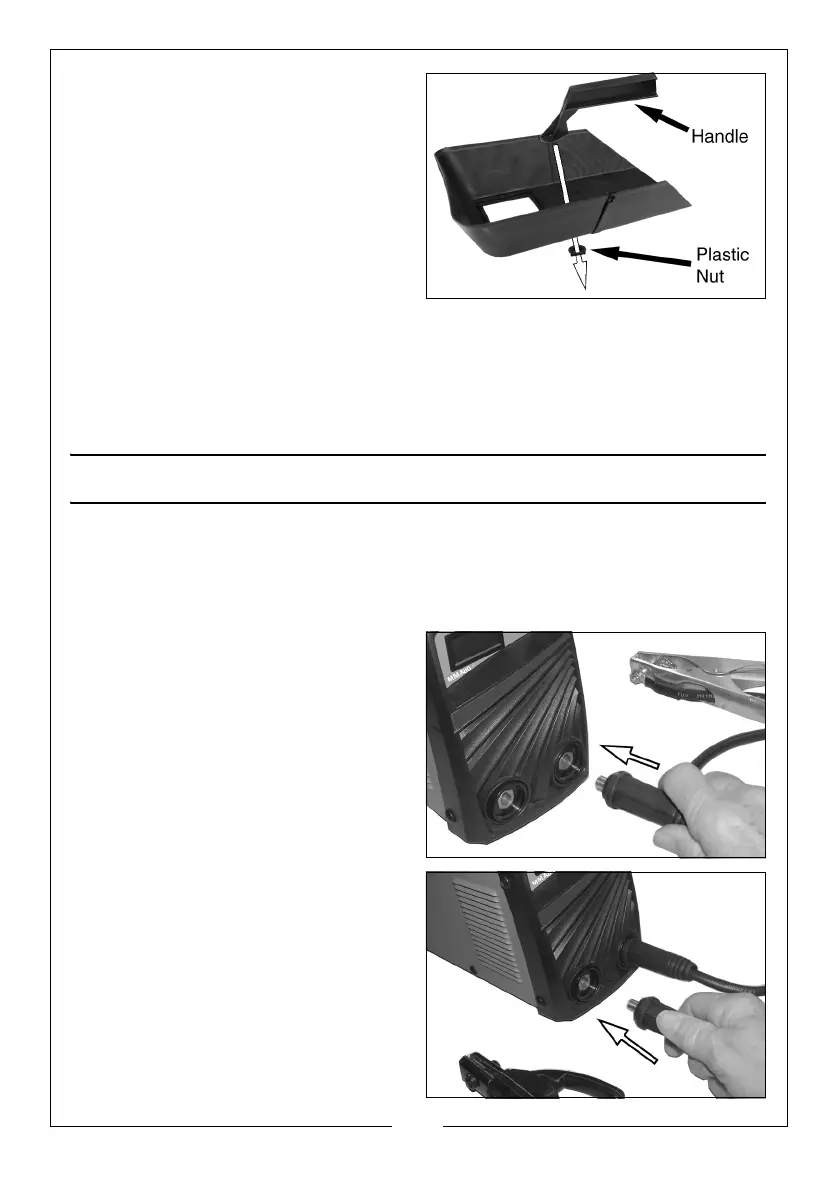

3. Working from the inside of the
shield, insert the clear glass lens
into the recess in the shield,
followed by the dark glass lens.
• The clear glass must be inserted
first.
4. Insert the two plastic screws to
clamp the glass lens from the
inside of the mask.
When replacing the glass lenses only
use parts supplied by Clarke International. The shaded filter lens is a certified,
specific optical glass and should not be exchanged for any other type.
• The clear glass cover lens should be replaced when it becomes badly
pitted.
SETUP OF THE WELDER
CONNECTING THE CABLES
Make sure the on/off switch on the rear panel is in the OFF position before
connecting the leads.
1. Connect the earth (ground)
cable to the negative terminal (-).
2. Connect the electrode holder
cable to the positive terminal (+).
