Classeq Under Counter Range - User Manual
8

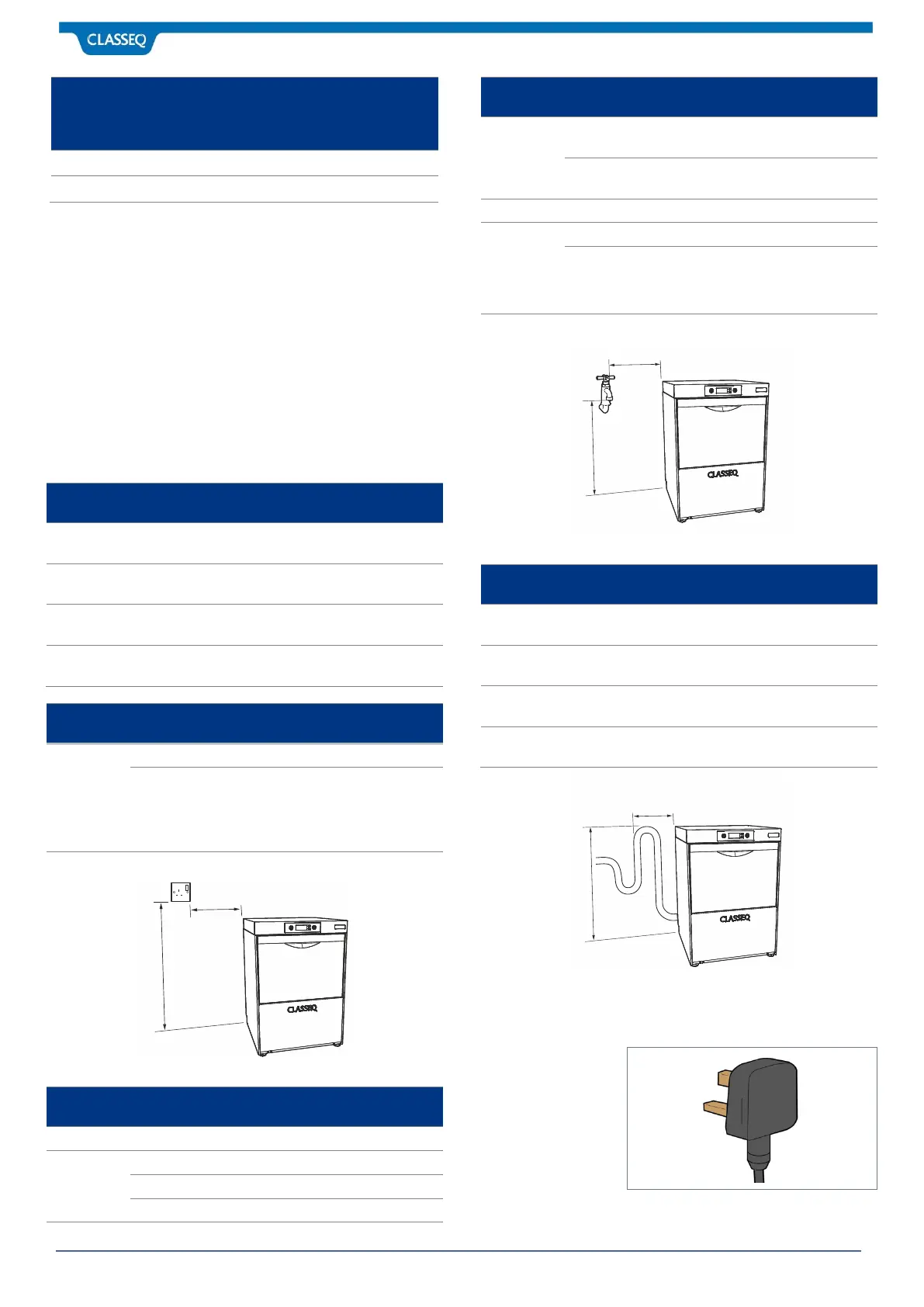

Electrical Supply
Electrical connections MUST be carried out in accordance with
local regulations. As a minimum Classeq recommends the
following are maintained:
All warewashers are connected via a residual current
device (RCD) or earth leakage protection device.
A means for disconnection that has all poles separation
of more than 3 mm must be incorporated in the fixed
wiring in accordance with wiring rules.
Connect to an equipotential conductor, connection stud
located at rear of the warewasher, this is in addition to
the earthed electrical supply.
Prior to connecting the warewasher, ensure voltage and
supply fuse comply with rating plate.
Max
position of
electrical
supply
socket
(mm)
Water Inlet
Pressure reducing valve required
Maximum
position of
water
supply
(mm)
Waste Outlet
W = maximum distance
from warewasher
H = Drain pipe height
(gravity drain)
Drain pipe height (drain
pump)
4.4 Electrical Connection
4.4.1 Mains cable connection
Prior to connecting
the warewasher,
ensure that the
available electrical
outlet voltage and
the supply fuse
comply with the
rating of the
warewasher. For the
electrical rating of your warewasher refer to the rating plate.
