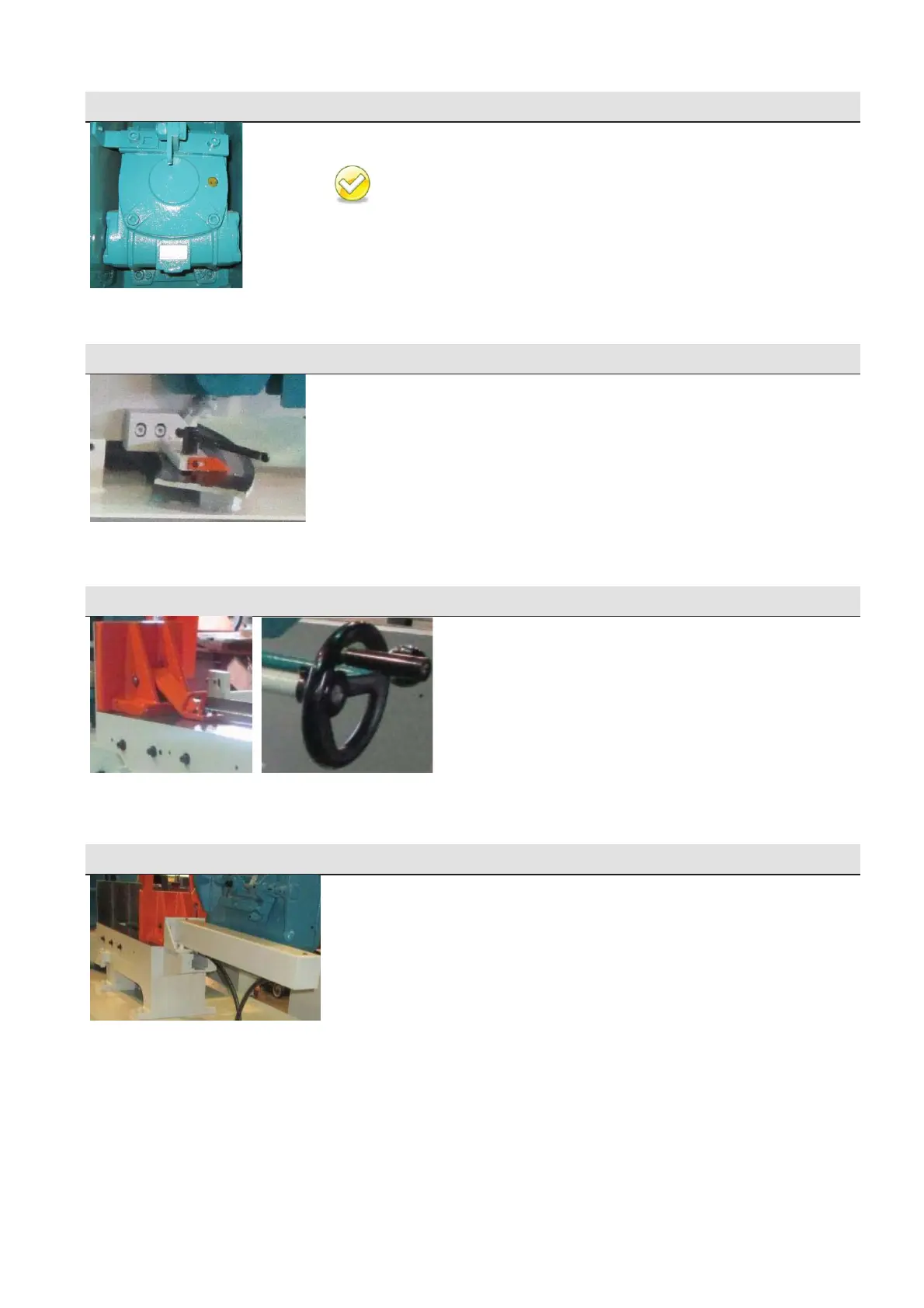

Gear reducer
The specially designed gear reducer can work toward your preset blade
speed and torque.
Please refer to section 8 for information on maintenance.
Saw bow swivel lock handle
This lock handle is used to lock the saw bow when it is settled
at the designated angle before miter cutting.
Manual vise (MS1318M)
! !
Pawl
Handwheel
Steps to clamp manual vise:
Step 1
- Lift the pawl and move the movable
vise
close to the material.
Step 2
- Put down the pawl.
Step 3
- Turn the handwheel to clamp the vise
tightly.
Hydraulic movable vise (MS1318SA)
Use the vise clamp/open switch to control the hydraulic vise.
