CLAUSING MS1318M - Page 89

9-7!

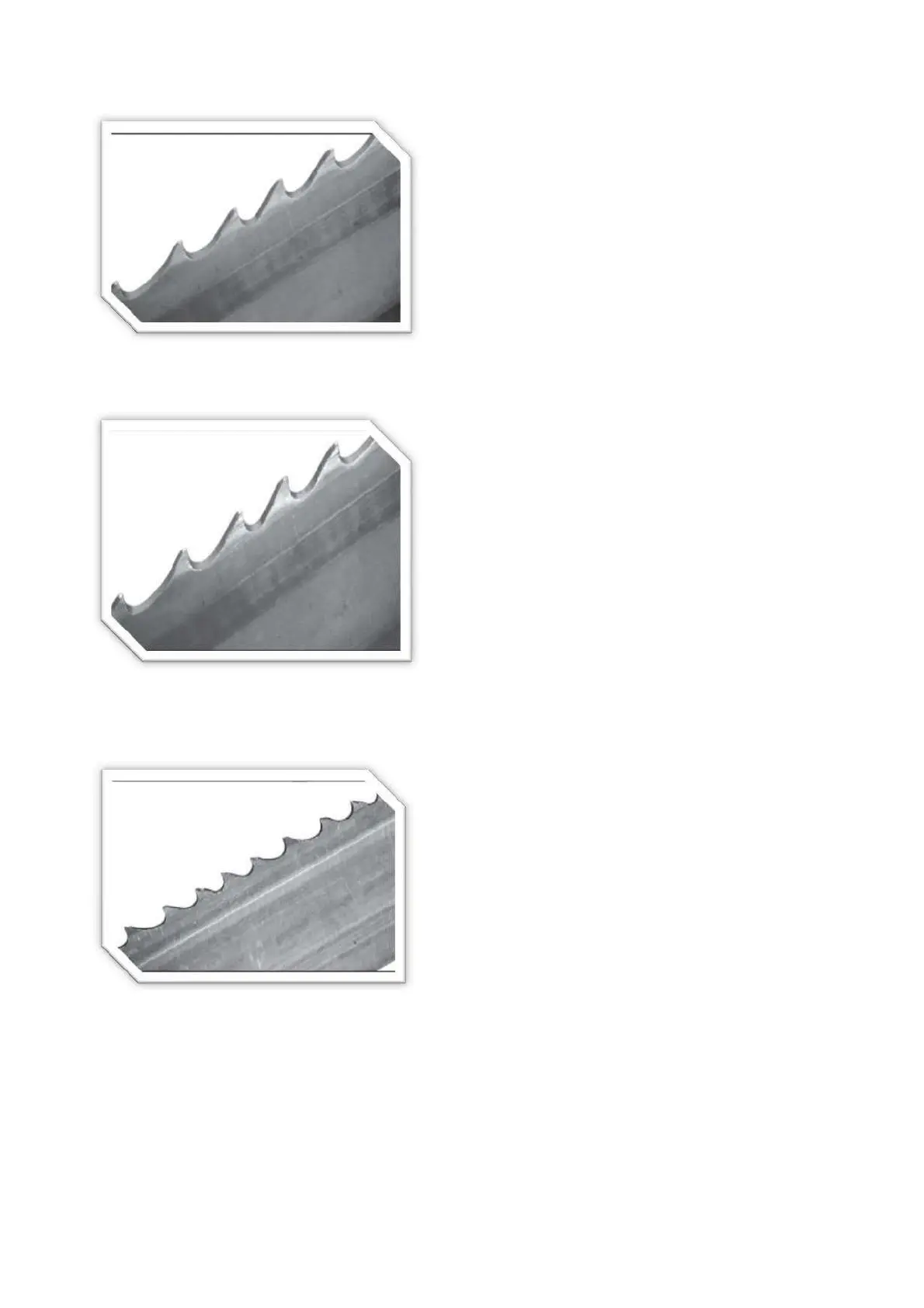

:HDU2Q%RWK6LGHV2I7HHWK
Probable Cause :
A. Broken, worn or missing back-up guides allowing
teeth to contact side guides.
B. Improper side guides for band width.
C. Backing the band out of an incomplete cut.
:HDU2Q2QH6LGH2I7HHWK
Probable Cause :
A. Worn wheel flange, allowing side of teeth to contact
wheel surface or improper tracking on flangeless
wheel.
B. Loose or improperly positioned side guides.
C. Blade not perpendicular to cut.
D. Blade rubbing against cut surface on return stroke
of machine head.
E. The teeth rubbing against a part of machine such as
chip brush assembly, guards, etc.
&KLSSHG2U%URNHQ7HHWK
Probable Cause :
A. Improper break-in procedure.
B. Improper blade selection for application.
C. Handling damage due to improper opening of
folded band.
D. Improper positioning or clamping of material.
E. Excessive feeding rate or feed pressure.
F. Hitting hard spots or hard scale in material
MS1318M / MS1318SA
