3.3. Rack Mounting
A Rack Mount Kit is supplied with the E20 for mounting the product in a 19-inch rack. Included
with the kit is the following:
• 2 x side brackets.
• 6 x bracket screws. 3 for securing one bracket to one side of the E20.

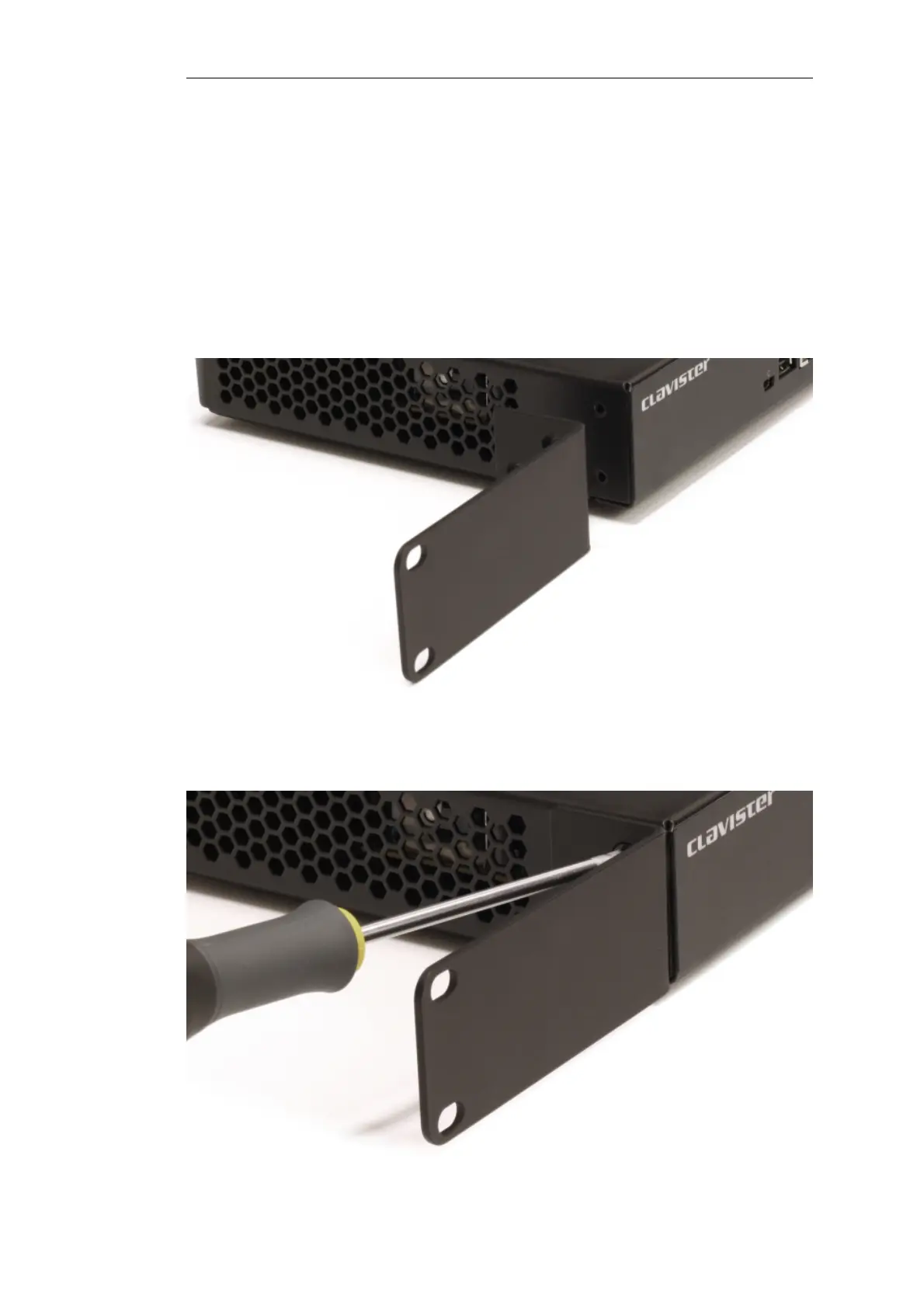

The kit is attached to the sides of the E20 unit prior to mounting in the rack. There are pre-drilled
holes in each bracket and in the side of the E20 as shown below.
Align the bracket screw holes with the pre-drilled holes on the side of the E20. Then, fit and
tighten the supplied screws into the holes with a suitable screwdriver as shown below.
Chapter 3: E20 Installation
