6.8. Data connector details

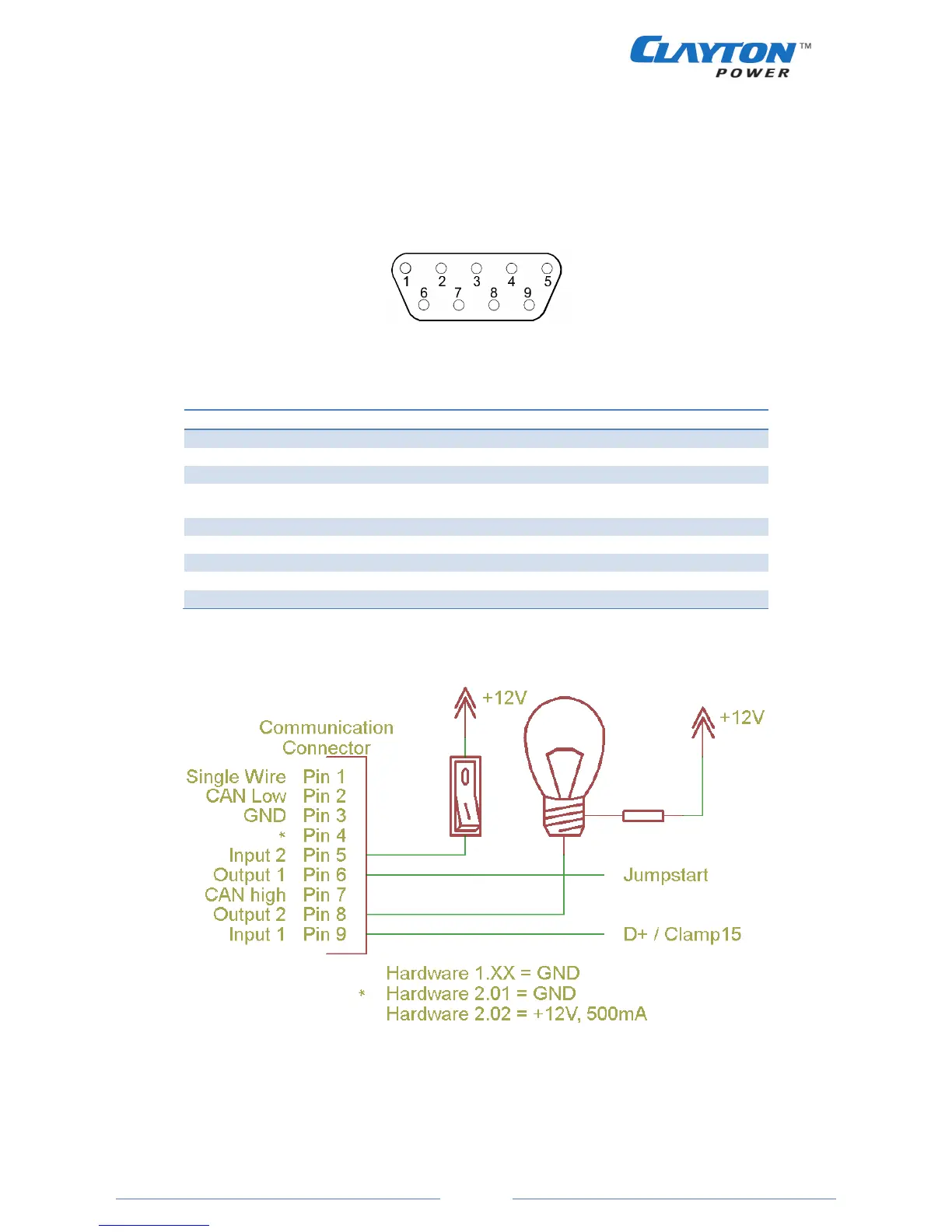

The data connector pins are numbered according to figure 13. The following table shows all pin details on
the data connector.
Figure 13
Table 3
Connector Pin
Signal name
Description
1
Single Wire
Data connection
2
CAN Low
For firmware update
3
GND
Ground connection for accesories
4
GND/+12V
HW 2.01 and below = Ground connection
HW 2.02 and above = +12V , 500 mA
5
Input 2
Activation of 230VAC inverter
6
Output 1
For jumpstart
7
CAN high
For firmware update
8
Output 2
Is active when battery capacity is below 10%
9
Input 1
Activates DC charging after 10 seconds
The following diagram shows typical setups with the communication connector.
Figure 14
