2-12 EF-701M INTERFACE
TRANSMISSION METHODS
DIRECT CONNECTION
There are many instances where twisted-pair cable is available for audio connections. This
wiring is typically found in unused telephone cable in or between buildings. Figure 2-2
illustrates twisted-pair wiring connections.

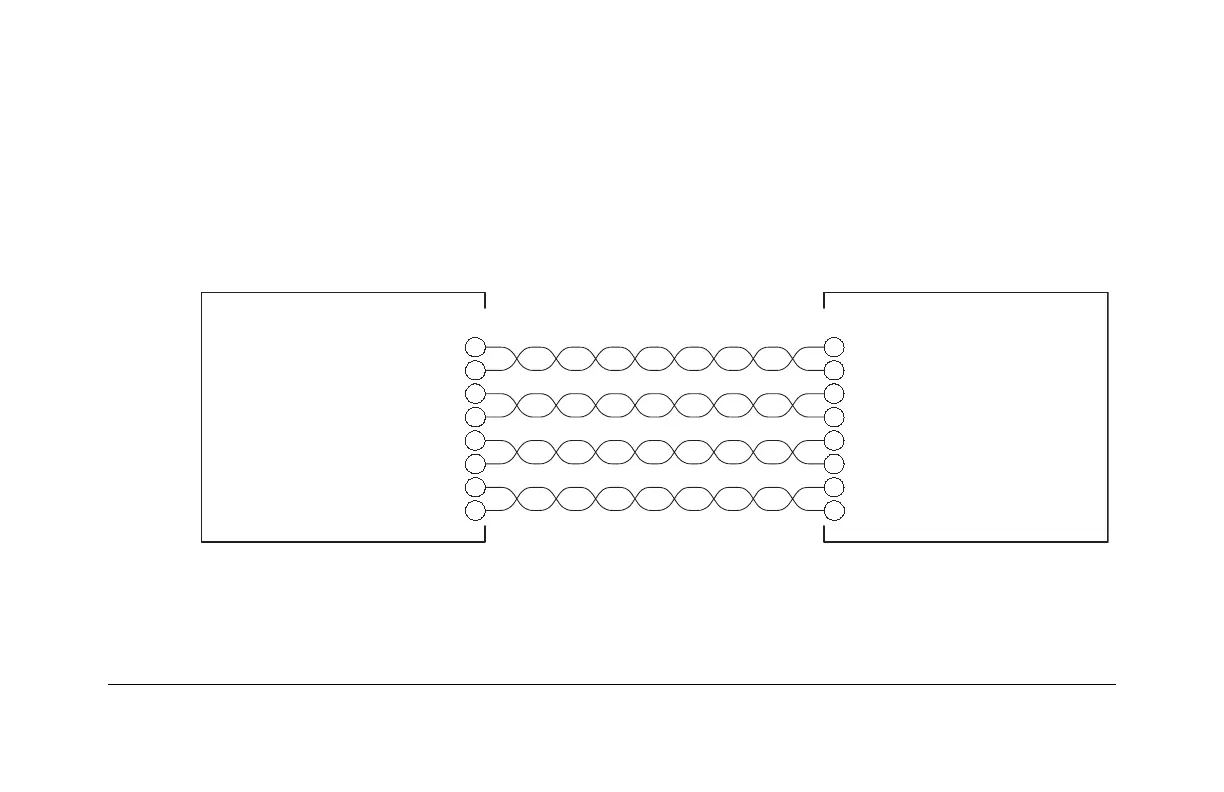

Figure 2-2: Twisted Pair Wiring
14
13
- RS-422 Receive
+ RS-422 Receive
6
5+ RS-422 Transmit
- RS-422 Transmit
14
13
- RS-422 Receive
+ RS-422 Receive
6
5 + RS-422 Transmit
- RS-422 Transmit
DB-9 Pins DB-9 Pins
9
10
1
2
- 4-Wire Audio Input to Party Line
+ 4-Wire Audio Output from Party Line
+ 4-Wire Audio Input to Party Line
- 4-Wire Audio Output from Party Line
9
10
1
2
- 4-Wire Audio Input to Party Line
+ 4-Wire Audio Input to Party Line
+ 4-Wire Audio Output from Party Line
- 4-Wire Audio Output from Party Line
EF-701M EF-701M
Twisted Pair Wiring
