Tempest 2400 T-Desk Software User Guide

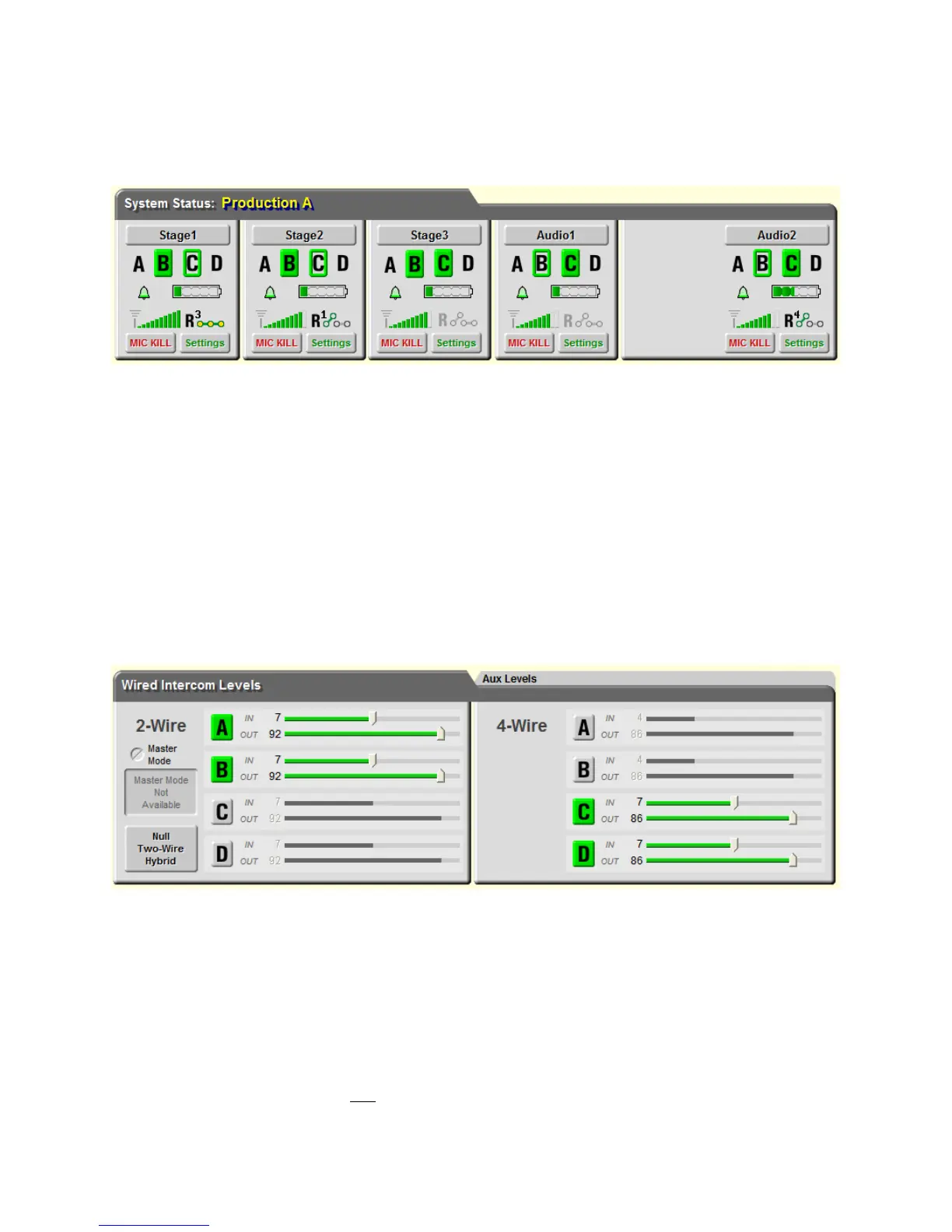

System Status
The System Status area displays information about the BeltStations that are associated with the currently
selected BaseStation. Information includes the name of the BeltStation, RF status, channels in use,
battery charge condition, and other details. Clicking on the Mic Kill button for any of the BeltStations will
de-latch the Talk button(s) for that BeltStation. The BeltStation user can re-enable talking at any time.
Selecting the Settings button advances to the BeltStation Settings Tab for that particular BeltStation
where feature settings may be adjusted.
Wired Connection Settings
Wired Connections Settings include settings for connections to 2-Wire or 4-Wire intercom systems, as
well as auxiliary input and auxiliary output connections.
Wired Intercom Levels
The Wired Intercom Levels tab allows selecting 2-Wire or 4-Wire operation, displays gain information
relating to wired intercom settings, and allows adjustment of those settings.
Master Mode is only available when two or more BaseStations are connected for 2-Wire operation, and
both slide switches are set to ClearCom mode, while an external 2-Wire system is not connected. Then
Master Mode will provide the power for audio that a connected external 2-Wire intercom system could
provide.
The “Null Two-Wire Hybrid” button initiates nulling on channels that are connected to a 2-Wire intercom
system. Nulling will interfere with normal communication! For reliable results, all Talk buttons must
be off for all Tempest BeltStations and
all 2-Wire intercom interfaces.
