CONNECT HEATER UNDER BENCH

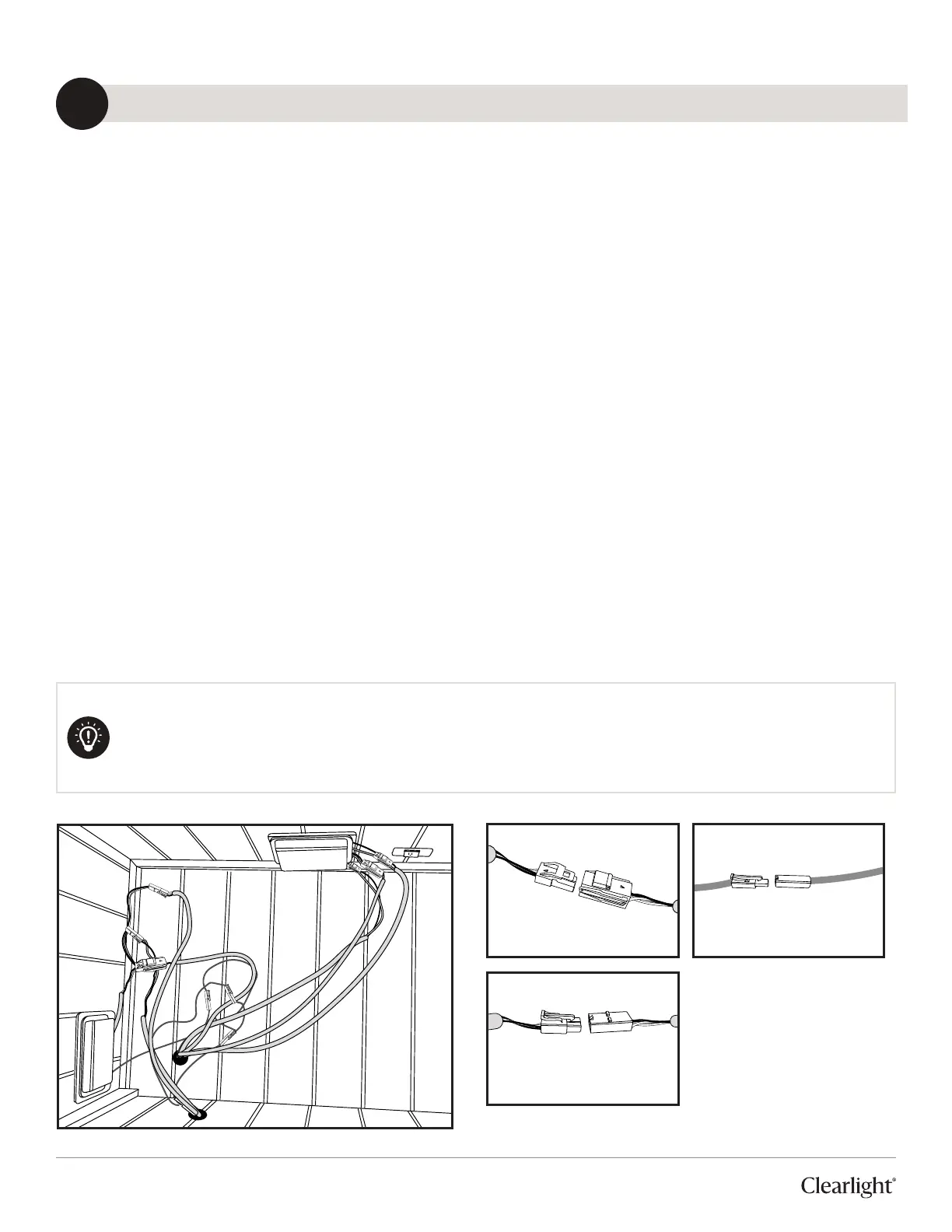

Plug in the connectors under the bench as follows:
Le Side Wall
1. Locate the short cables coming out of the floor with a single black and white cable and a single green cable.
2. Feed these cables through the open holes in the boom of the white cable cover.
3. Connect these cables to the matching colored cables coming out of the white box on the le side wall. Listen for
the click to ensure they have been properly connected.
4. If any connectors appear to be missing, they may be tucked through the hole in the wall - gently pull the wiring to
reveal any obscured connectors.
5. Screw on the white cable cover to cover the wires on the wall.
Back Wall
1. Locate the cables coming out of the bench support with a single black and white cable and a single green cable.
2. Feed these cables through the open holes in the boom of the white cable cover.
3. Connect these cables to the matching colored cables coming out of the white box on the back wall. Listen for the
click to ensure they have been properly connected.
4. If any connectors appear to be missing, they may be tucked through the hole in the wall - gently pull the wiring to
reveal any obscured connectors.
5. Screw on the white cable cover to cover the wires on the wall.
5
You can connect the black and white cables from the floor and under bench support to any black and white
cable coming out of the boxes on the walls as long as you match cable colors. You can connect the green
cables to any of the green cables coming out of the boxes on the walls as long as you match cable colors.
