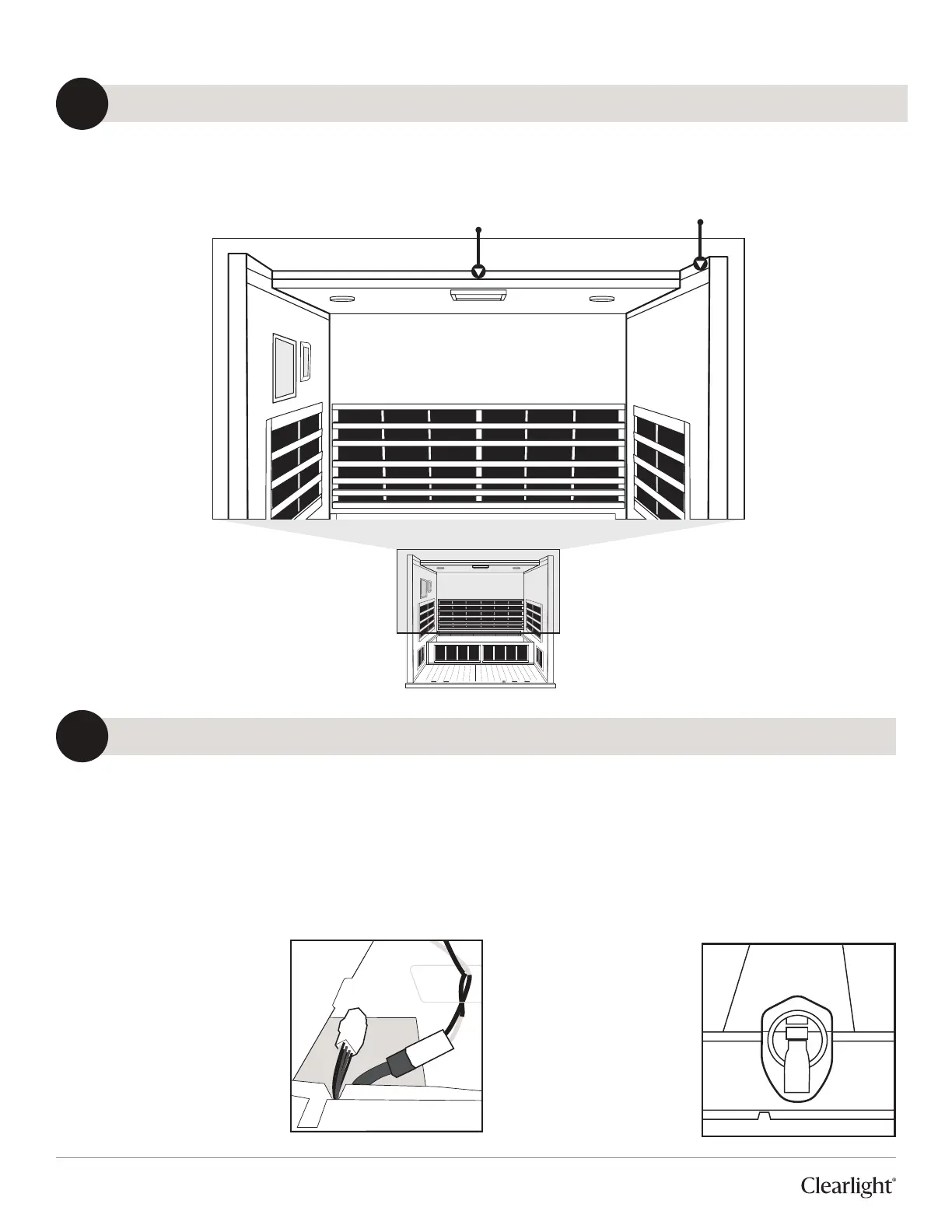

INSTALLING WOOD PORTION OF ROOF
1. Be sure to push the wires up over to the outside of the sauna walls.
2. Set the wood portion of the roof on the back roof guide. Be sure to slide the roof back against the back wall.
7
Roof Guide Roof Guide
CONNECT HEATERS IN ROOF
8
1. Locate the “trap” doors that open in the wood roof.
2. Connect the cables under the trap door to the same colored connector in the roof (e.g., black/white, red/black, yel-
low/black green, etc.)
A. Listen for the click to ensure they have been properly connected.
3. Make sure to connect all of the wires from the panels to the wires in the roof. These control the heaters, keypad,
speakers, lights, etc
4. Push the wiring inside the
roof area and close the
roof door compartments.
A. There may be some
color discrepancies for
some connections, e.g.,
a solid black wire that
connects to a white
and black pair.
5. Latch the two
buckles that connect
the wood roof piece
to the back and side
walls on the le side
only. (The right side
gets latched aer you
install the glass roof).
